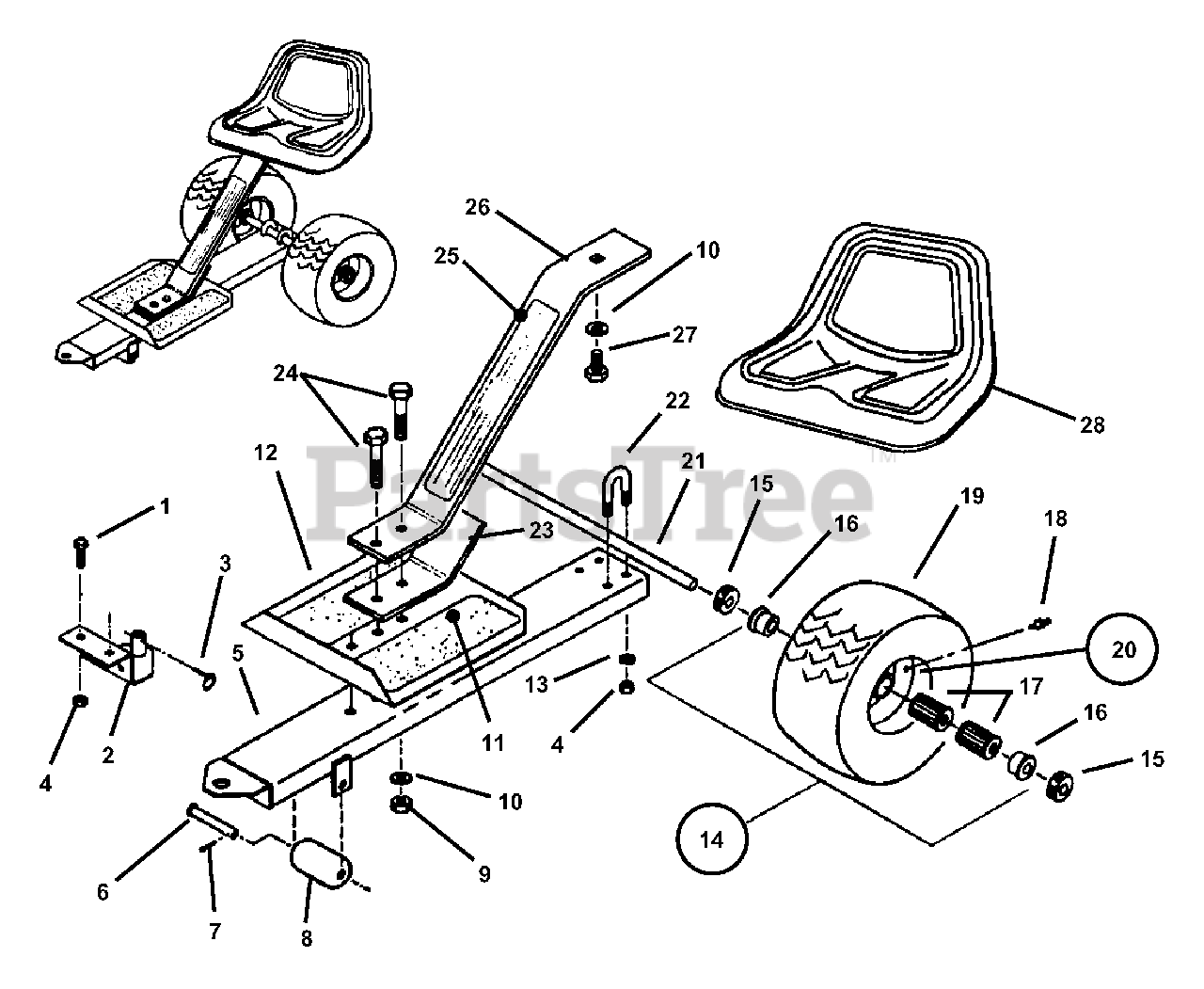

7060848 - Snapper Sulky HD Kit Sulky Riding Parts Diagram

Sulky HD Kit

Sulky Riding Parts Diagram

  • Title

Snapper 7060848

KIT, Sulky

Note: (Includes 1 thru 28)

$

$

Currently unavailable

1

Snapper 76926

SCREW, 5/16-18 x 1" Hex

$

$

Currently unavailable

2

Snapper 7077768

WELDMENT, Hitch
(Superseded to 7077768YP)

$59.99

$

Usually ships in 2-12 days

0

3

Snapper 7077780

PIN, Lynch

$

$

Not available

4

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

5

Snapper 77772

WELDMENT, Frame

$

$

Currently unavailable

6

Snapper 77787

AXLE, Roller

$

$

Currently unavailable

7

Snapper 7091809

PIN, 1/8 x 1-1/2" Cotter
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7019190

ROLLER
(Superseded to 7019190YP)

Note: Was 14661 (Now use 19190 + 15272)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7091316

NUT, 1/2-13 Hex, Gr. 5 or B
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

10

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7077778

PAD, Abrasive

$

$

Currently unavailable

12

Snapper 7077777

FOOT REST (w/o pad)

$

$

Currently unavailable

13

Snapper 7090692

WASHER, 5/16" Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7076389

ASS'Y, Tire

Note: (incl. 16-20)

$

$

Currently unavailable

15

Snapper 7077000

CLAMP, Collar
(Superseded to 7077000YP)

$28.99

$

Usually ships in 2-12 days

0

16

Snapper 7077312

BEARING, Flange
(Superseded to 7077312YP)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7077313

BEARING, Roller
(Superseded to 7077313YP)

$45.99

$

Usually ships in 2-12 days

0

18

Snapper 7076998

FITTING, 1/4-28 Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

19

Snapper 7023788

TIRE, 2 Ply Turfmaster
(Superseded to 7023788YP)

Note: Was 77310

$120.99

$

Usually ships in 2-12 days

0

20

Snapper 7077290

ASS'Y, Rim

Note: Was 77311 (incl. air valve & grease fitting)

$

$

Not available

21

Snapper 7077776

AXLE, Main

$

$

Currently unavailable

22

Snapper 7076604

U-Bolt (5/16-18 threads)

$

$

Currently unavailable

23

Snapper 7076596

STIFFENER

$

$

Currently unavailable

24

Snapper 7090543

SCREW, 1/2-13 x 2" Hex
(Superseded to 703817)

Note: Was 76929

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 7077774

DECAL, Warning

$

$

Currently unavailable

26

Snapper 7077775

SPRING, Seat

Note: (incl. item 25)

$

$

Currently unavailable

27

Snapper 7090646

SCREW, 1/2-13 x 1" Hex Head

Note: Was 76928

$

$

Not available

28

Snapper 7077303

SEAT w/Decal

$

$

Currently unavailable
