7060804 - Snapper Dual Wheel Conversion Kit Dual Wheel Conversion, Complete Parts Diagram

Dual Wheel Conversion Kit

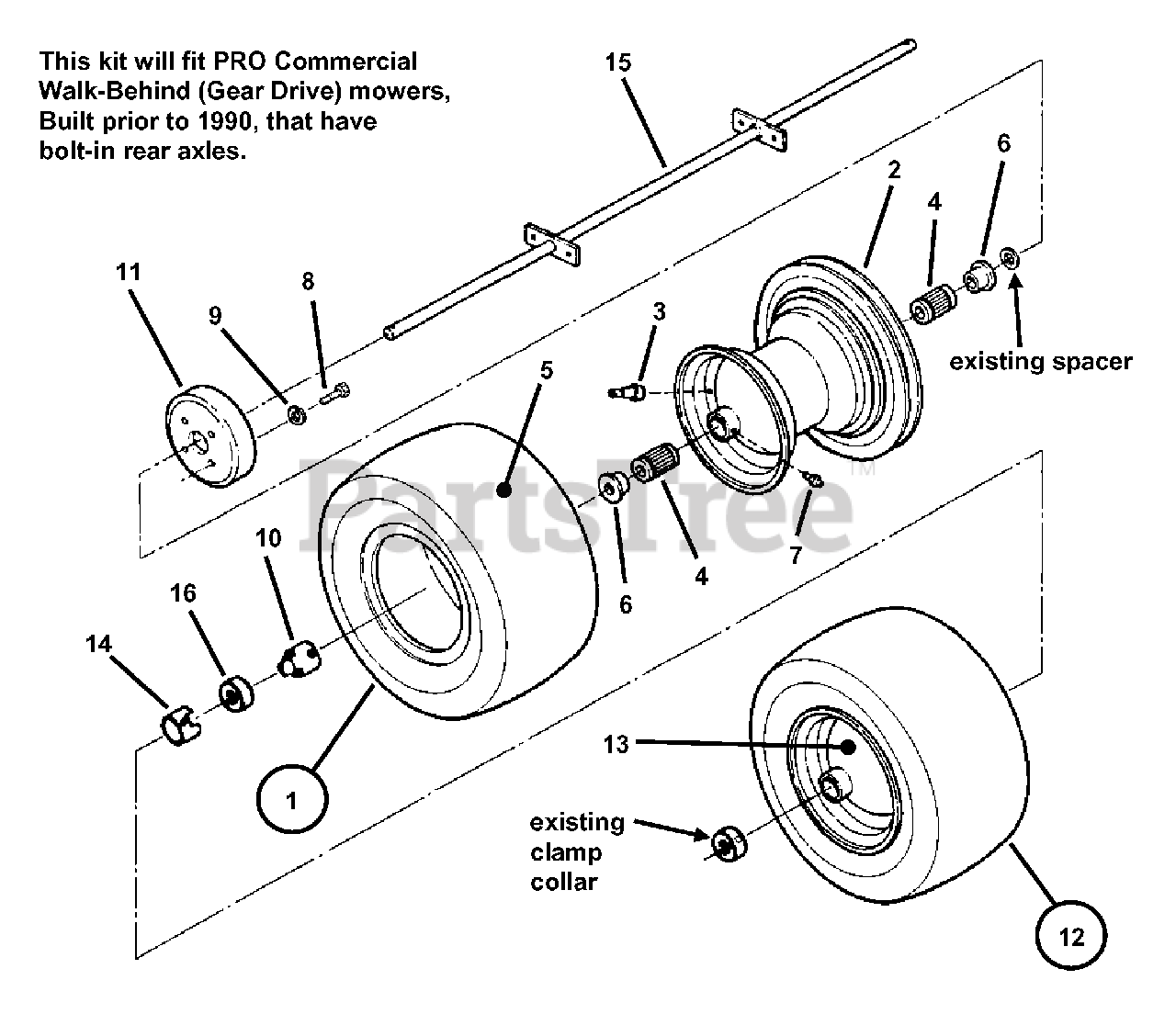

Dual Wheel Conversion, Complete Parts Diagram

  • Title

Snapper 7060804

KIT, Dual Wheel Conversion (complete)

Note: (Incl. items 1 thru 16)

$

$

Currently unavailable

1

Snapper 76394

ASSEMBLY, Drive Tire (complete, dual wheel)

Note: (Incl. items 2 thru 7)

$

$

Currently unavailable

2

Snapper 7076410

RIM & PULLEY, Drive (dual wheel)

Note: or PN 77283

$

$

Currently unavailable

3

Snapper 7012234

STEM, Air Valve
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7077313

BEARING, Roller
(Superseded to 7077313YP)

$45.99

$

Usually ships in 2-12 days

0

5

Snapper 7023788

TIRE, 13 x 6.50-6
(Superseded to 7023788YP)

Note: or PN 77310

$120.99

$

Usually ships in 2-12 days

0

6

Snapper 7077312

BEARING, Flange
(Superseded to 7077312YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7076998

FITTING, Lube, 1/4-28, Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

8

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

9

Snapper 77748

SCREW, 3/8-24 x 3/4" Hex Head Cap, Grade 5

$

$

Currently unavailable

10

Snapper 76539

COUPLING-DRIVE, Inside

$

$

Currently unavailable

11

Snapper 7076440

DRUM, Brake, PTD

$

$

Not available

12

Snapper 76395

TIRE, Driven (complete, dual wheel)

Note: (Incl item 14)

$

$

Currently unavailable

13

Snapper 7077284

RIM, Driven

$

$

Currently unavailable

14

Snapper 7076540

COUPLING, Drive, Outside

$

$

Currently unavailable

15

Snapper 7076396

WELDMENT, Rear Axle, Dual Wheel, PTD

$

$

Currently unavailable

16

Snapper 76542

SPACER, Dual Wheel

$

$

Currently unavailable
