7060803 - Snapper Dual Wheel Conversion Kit Dual Wheel Conversion Parts Diagram

Dual Wheel Conversion Kit

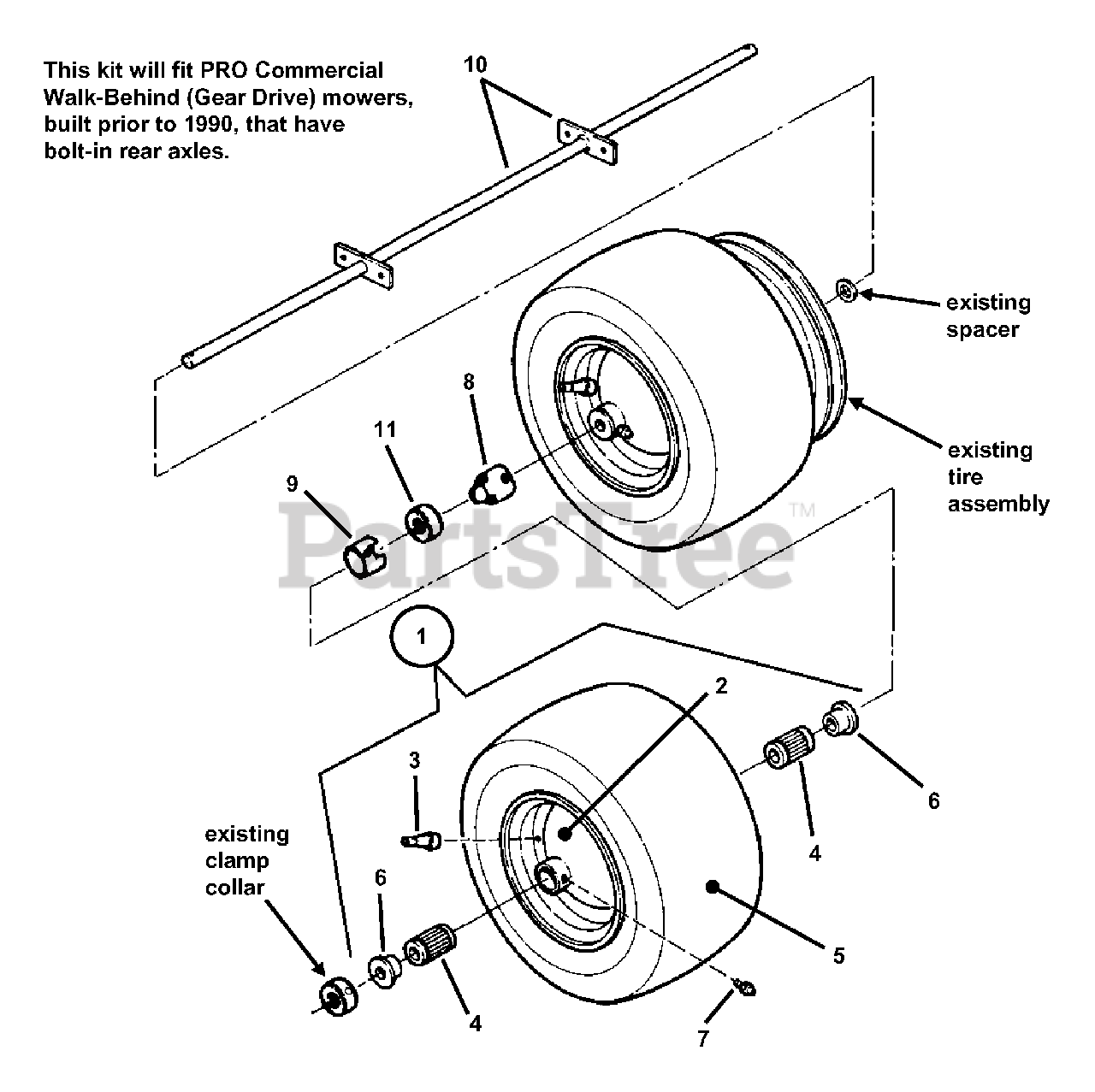

Dual Wheel Conversion Parts Diagram

  • Title

Snapper 7060803

KIT, Dual Wheel Conversion

$

$

Currently unavailable

1

Snapper 7076389

ASSEMBLY, Sulky Tire (complete)

Note: (Incl. items 2 thru 7)

$

$

Currently unavailable

2

Snapper 7077290

RIM

Note: Was 77311 (Includes 3 & 7)

$

$

Not available

3

Snapper 7012234

STEM, Air Valve
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7077313

BEARING, Roller
(Superseded to 7077313YP)

$45.99

$

Usually ships in 2-12 days

0

5

Snapper 7023788

TIRE, 13 x 6.50-6
(Superseded to 7023788YP)

$120.99

$

Usually ships in 2-12 days

0

6

Snapper 7077312

BEARING, Flange
(Superseded to 7077312YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7076998

FITTING, Lube, 1/4-28, Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

8

Snapper 76539

COUPLING-DRIVE, Inside

$

$

Currently unavailable

9

Snapper 7076540

COUPLING, Drive, Outside

$

$

Currently unavailable

10

Snapper 7076396

WELDMENT, Rear Axle, Dual Wheel, PTD

$

$

Currently unavailable

11

Snapper 76542

SPACER, Dual Wheel

$

$

Currently unavailable
