7060800 - Snapper Caster Kit Caster, Height Adjustment (Semi-Pneumatic) Parts Diagram

Caster Kit

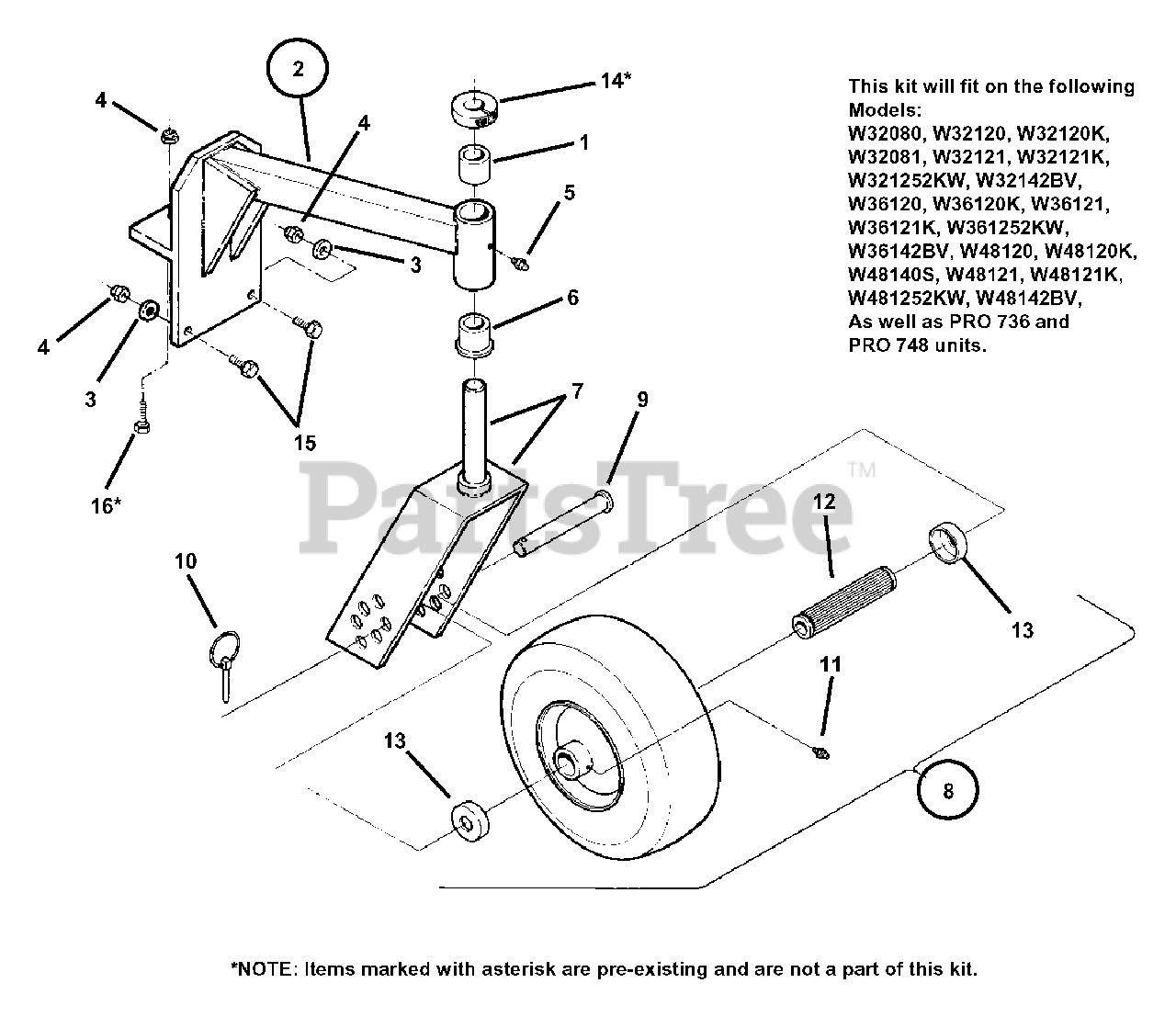

Caster, Height Adjustment (Semi-Pneumatic) Parts Diagram

  • Title

Snapper 7060800

KIT, Quick Height Adjust (Semi Pneumatic)

Note: (Incl. 1-13 & 15)

$

$

Currently unavailable

1

Snapper 7076515

BUSHING, Straight
(Superseded to 7076515YP)

$10.99

$

Usually ships in 2-12 days

0

2

Snapper 7076399

SUPPORT, Caster w/Bushings (7-6514 & 7-6515)

$

$

Currently unavailable

3

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

4

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7076997

FITTING, Lube, 1/8 NPT Straight

$

$

Currently unavailable

6

Snapper 7076514

BEARING, Flange Thrust(powdered metal)
(Superseded to 7076514YP)

$8.49

$

Usually ships in 2-12 days

0

7

Snapper 7076400

YOKE, Caster (weldment)

$

$

Currently unavailable

8

Snapper 7076506

ASSEMBLY, Semi-Pneumatic Tire
(Superseded to 7076506YP)

$51.99

$

Usually ships in 2-12 days

0

9

Snapper 7076552

AXLE, Caster

$

$

Currently unavailable

10

Snapper 7076967

LYNCH PIN, 3/16" Diameter
(Superseded to 7076967YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7076998

FITTING, Lube, 1/4-28, Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

12

Snapper 7077320

BEARING, Roller

$

$

Not available

13

Snapper 7077321

CAP, End
(Superseded to 7077321YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7077000

COLLAR, Clamp 7/8" (existing)
(Superseded to 7077000YP)

$28.99

$

Usually ships in 2-12 days

0

15

Snapper 7091328

SCREW, 3/8-16 x 1-14" Hex Head Cap
(Superseded to 703871)

Note: Was 76927

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7076949

BOLT, 3/8-16 x 1-3/4" Hex Head Cap (existing)

$

$

Currently unavailable
