7060760 - Snapper Spacer Kit Spacer Kit Parts Diagram

Spacer Kit

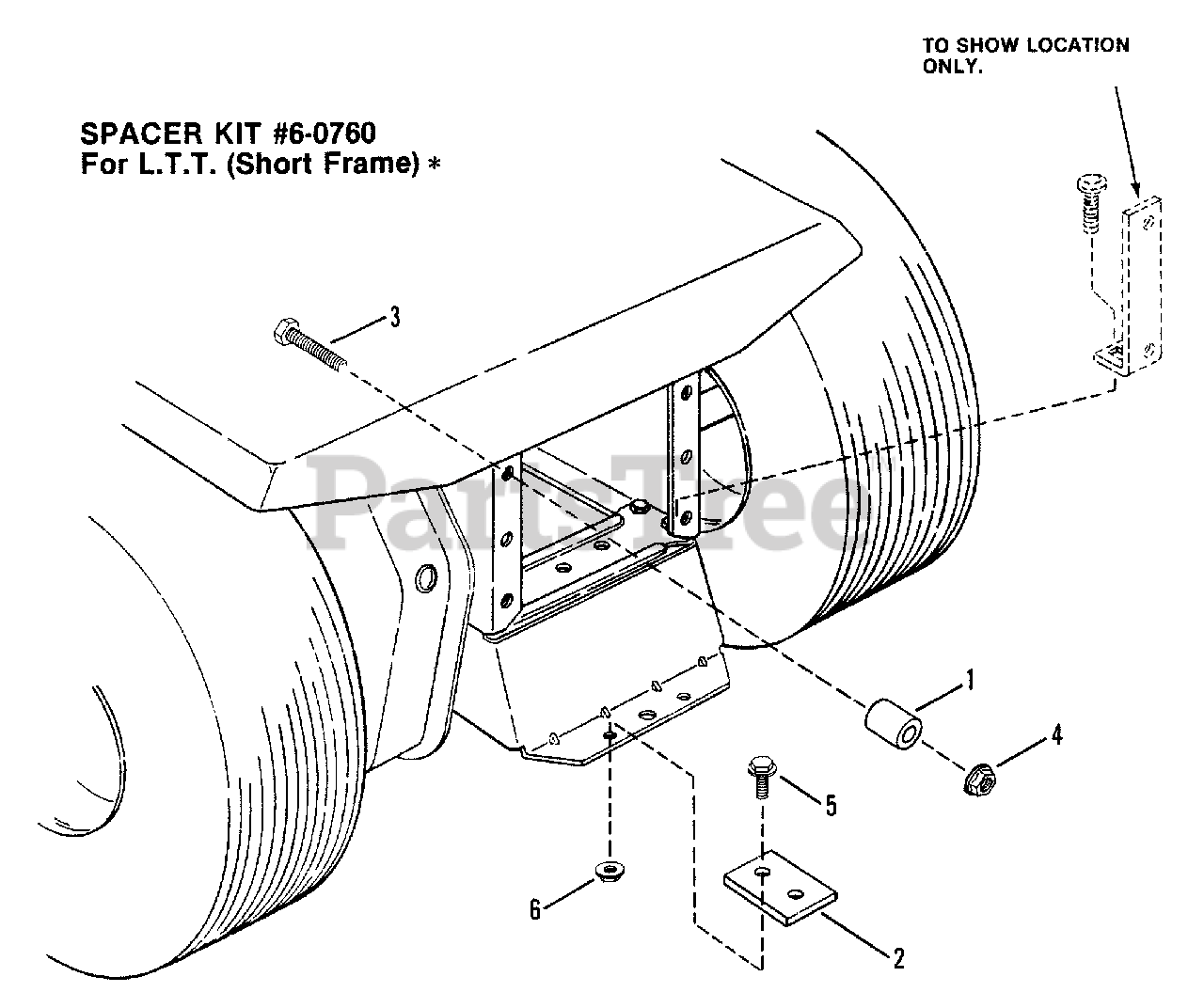

Spacer Kit Parts Diagram

  • Title

--

Snapper 7060760

KIT, Tiller Spacer

Note: (Includes items 1 thru 6)

$

$

Currently unavailable

1

Snapper 7021945

SPACER

$

$

Not available

2

Snapper 7032492

SPACER, Drawbar

$

$

Currently unavailable

3

Snapper 7027174

BOLT, 5/16-18x2"
(Superseded to 703867)

Note: Was 90930

$4.99

$

In Stock, only 4 left!

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7090815

SCREW, 3/8-16x3/4" Hex Head Self-Tapping
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

6

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0
