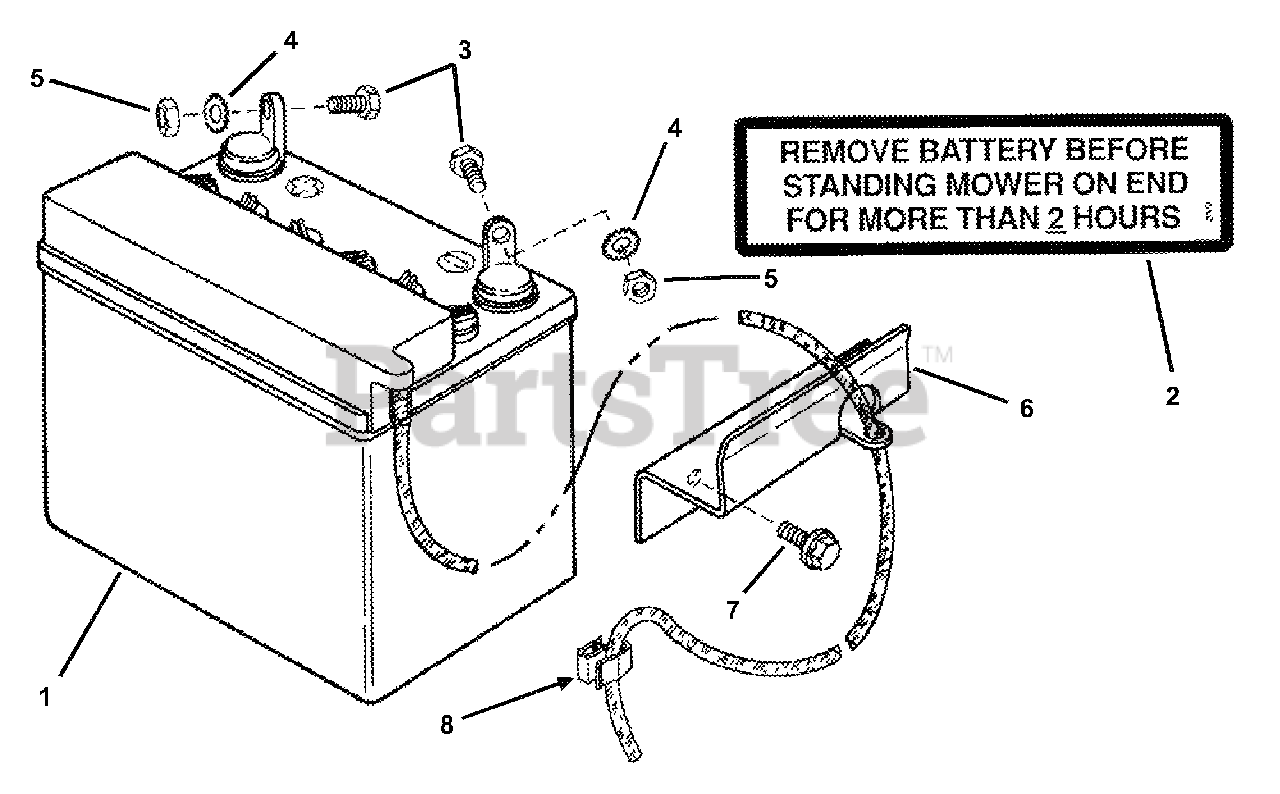

7060753 - Snapper Dry Charge Battery for Rider Dry Charge Battery 12V Parts Diagram

Dry Charge Battery for Rider

Dry Charge Battery 12V Parts Diagram

  • Title
--

Snapper 7060753

KIT, 12V Battery
(Superseded to 7060753YP)

Note: (Includes items 1 and 2)

$

$

Not available

1

Snapper 7035655

BATTERY, No-Spill, Lead/Acid Dry Charge Type
(Superseded to 7060753YP)

$

$

Not available

2

Snapper 7012358

DECAL, Battery
(Superseded to 7012358YP)

$8.99

$

In Stock, only 1 left!

0

3

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 18

0

4

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

6

Snapper 7037343

CLAMP, Battery Retaining

$

$

Not available

7

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7015063

CLAMP, Battery Hose

$

$

Not available
