7060731 - Snapper Hiller Furrower Kit 60731 - Hiller Furrower Kit Parts Diagram

Hiller Furrower Kit

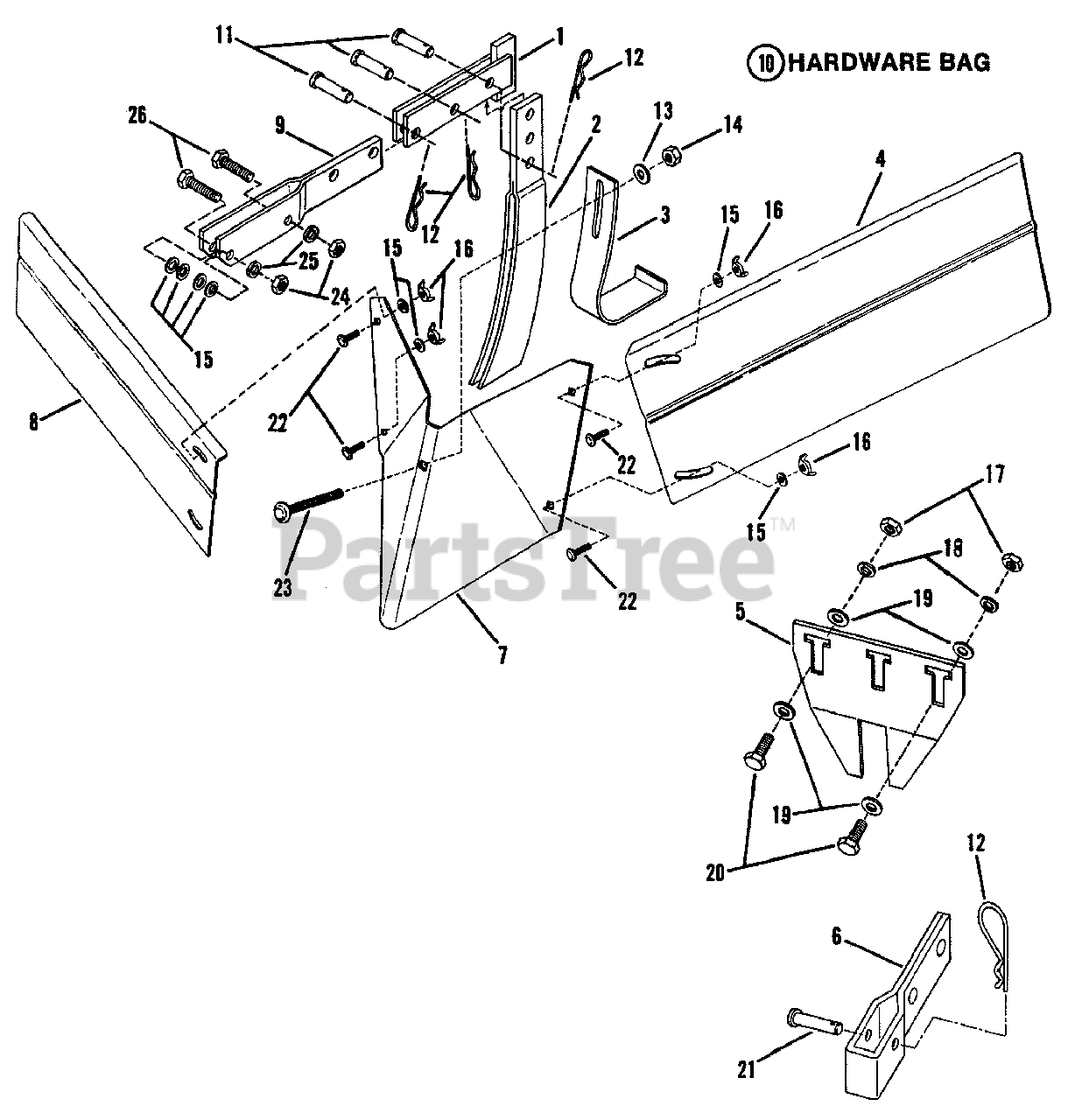

60731 - Hiller Furrower Kit Parts Diagram

  • Title

1

Snapper 7047858

DRAW-BAR
(Superseded to 7047858YP)

$46.99

$

Usually ships in 2-12 days

0

2

Snapper 7047865

STRUCTURE, Standard
(Superseded to 7047865YP)

$63.99

$

Usually ships in 2-12 days

0

3

Snapper 7032430

SKID-SHOE
(Superseded to 7032430YP)

$45.99

$

Usually ships in 2-12 days

0

4

Snapper 7036135

WING, Left Side Hiller
(Superseded to 7036135YP)

$25.99

$

Usually ships in 2-12 days

0

5

Snapper 7038217

CLEVIS, Support
(Superseded to 7038217YP)

Note: (Rear Tine Tiller Only)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7040527

BRACKET, Mounting

$

$

Currently unavailable

7

Snapper 7035072

HILLER - FURROWER
(Superseded to 7035072YP)

$87.99

$

Usually ships in 2-12 days

0

8

Snapper 7036134

WING, Right Side Hiller

$

$

Not available

9

Snapper 7047857

BRACKET, Clevis
(Superseded to 7047857YP)

Note: (Rear Tine Tiller Only)

$40.99

$

Usually ships in 2-12 days

0

10

Snapper 7060733

HARDWARE BAG

Note: (Incl. Items 11 thru 26)

$

$

Currently unavailable

11

Snapper 7013111

PIN, 1/2 x 1" Clevis
(Superseded to 7013111YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091596

PIN, 1/8 Hair
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7090705

WASHER, 1/2" Flat
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

15

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

19

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7013460

PIN, 3/8 x 1-1/2" Clevis

$

$

Not available

22

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7090779

BOLT, 1/2-13 x 3-1/2" Square Neck Carriage, Grade 2
(Superseded to 7090779YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7091540

BOLT, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

--

Snapper 7060731

KIT, Hiller Furrower

$

$

Not available
