7060629 - Snapper 42" LT Series Dozer Blade Dozer Blade Parts Diagram

42" LT Series Dozer Blade

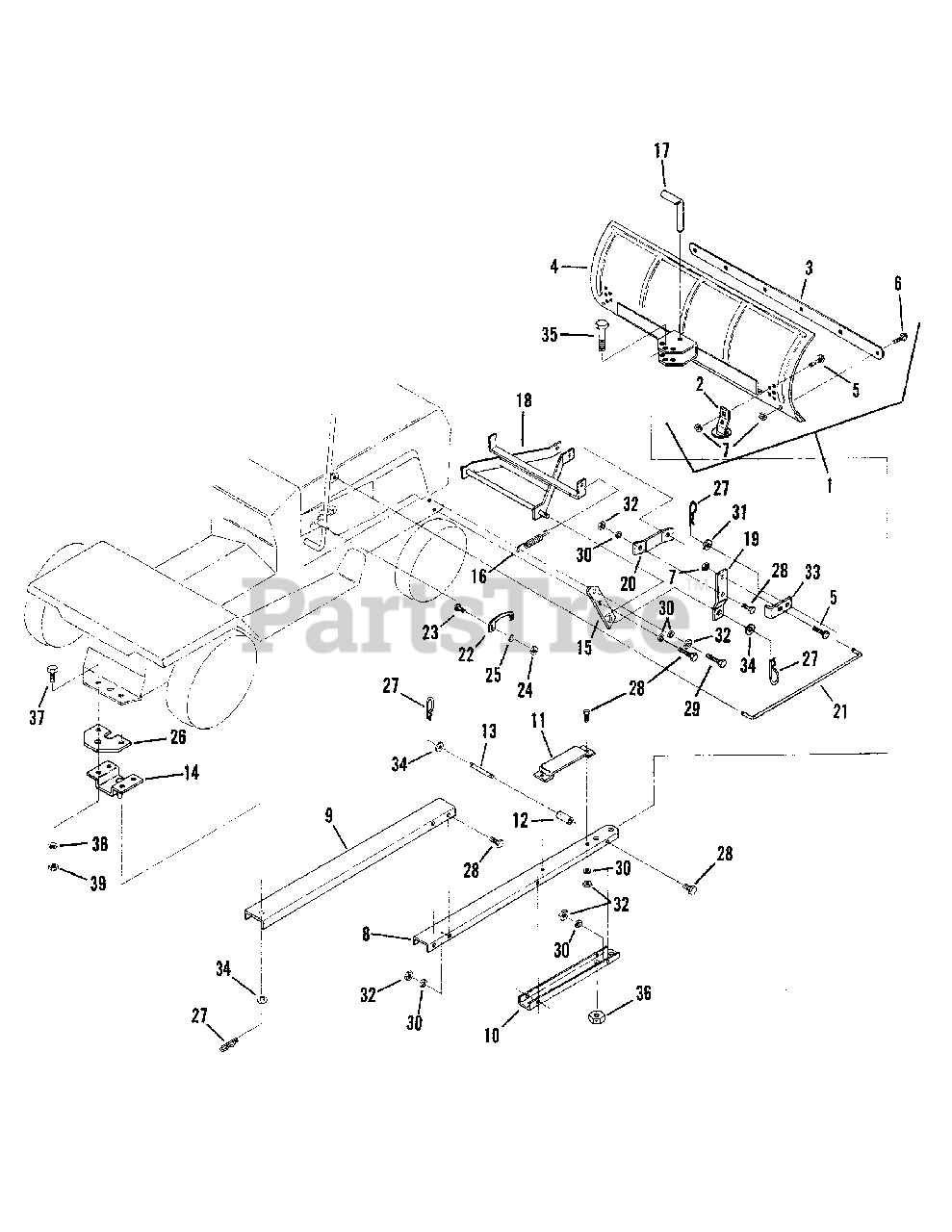

Dozer Blade Parts Diagram

  • Title
--

Snapper 7060629

KIT, 42" DOZER (Includes items 1 thru 42)

$

$

Currently unavailable

1

Snapper 7057361

ASSEMBLY, Blade 42" (Includes items 2 thru 7)

$

$

Currently unavailable

2

Snapper 7040445

SLIDE STRUCTURE
(Superseded to 7040445YP)

$84.99

$

In Stock, only 2 left!

0

3

Snapper 7038145

SCRAPER
(Superseded to 7038145YP)

$74.99

$

Usually ships in 2-12 days

0

4

$

$

Currently unavailable

5

Snapper 7090747

CARRIAGE BOLT, 3/8Cx1" Round Head
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7090850

CARRIAGE BOLT 3/8Cx3/4 Short Neck
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7090546

NUT, 3/8·16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7036113

BEAM, Front

$

$

Not available

9

Snapper 7036114

BEAM, Rear

$

$

Currently unavailable

10

Snapper 7038147

PLATE, Front Hitch

$

$

Not available

11

Snapper 7038148

BRACKET, Lift

$

$

Not available

12

Snapper 7021940

ROLLER, Lift
(Superseded to 7021940YP)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 7021941

PIN, Lift Roller
(Superseded to 7021941YP)

$42.99

$

Usually ships in 2-12 days

0

14

Snapper 7040521

HITCH, Rear Yoke
(Superseded to 7040521YP)

$77.99

$

Usually ships in 2-12 days

0

15

Snapper 7032390

PLATE, Side Support

$

$

Not available

16

Snapper 7014405

SPRING, Lift Assist

$

$

Not available

17

Snapper 7032391

PIN, Latch

$

$

Not available

18

Snapper 7049718

STRUCTURE, Lift Yoke
(Superseded to 7049718YP)

$364.99

$

Usually ships in 2-12 days

0

19

Snapper 7038152

ARM,Lift

$

$

Not available

20

$

$

Not available

21

Snapper 7021938

ROD, Operating
(Superseded to 7021938YP)

$68.99

$

Usually ships in 2-12 days

0

22

Snapper 7032397

PLATE, Quadrant Lockout
(Superseded to 7032397YP)

$42.99

$

Usually ships in 2-12 days

0

23

Snapper 7090803

CARRIAGE BOLT, 1/4Cx5/8 Flat Head
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7090063

NUT, 1/4C Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

26

Snapper 7032452

DRAWBAR, Short Aux.
(Superseded to 7032452YP)

$49.99

$

Usually ships in 2-12 days

0

27

Snapper 7011714

PIN, Hair Cotter
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7090563

SCREW, 3/8Cx1 Hex Head Cap
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

29

Snapper 7090655

SCREW, 3/8Cx1 1/2 Hex Head Cap
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

30

Snapper 7090118

WASHER 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

31

Snapper 7090122

WASHER,3/8 Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7090130

NUT, 3/8C Hex
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7032456

CLIP
(Superseded to 7032456YP)

$45.99

$

Usually ships in 2-12 days

0

34

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

35

Snapper 7090017

SCREW, 1/2Fx2 3/4 Hex Head Cap
(Superseded to 7090017YP)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7090393

NUT, 1I2F Hex Lock
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7090209

SCREW, 5/16Cx1" Hex Head Cap
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

38

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7013844

PIN, Hair
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 7032763

TAB, Lift Lever
(Superseded to 7032763YP)

$11.99

$

Usually ships in 2-12 days

0
