7060601 - Snapper RER Smooth Clutch Kit Smooth Clutch Kit Parts Diagram

RER Smooth Clutch Kit

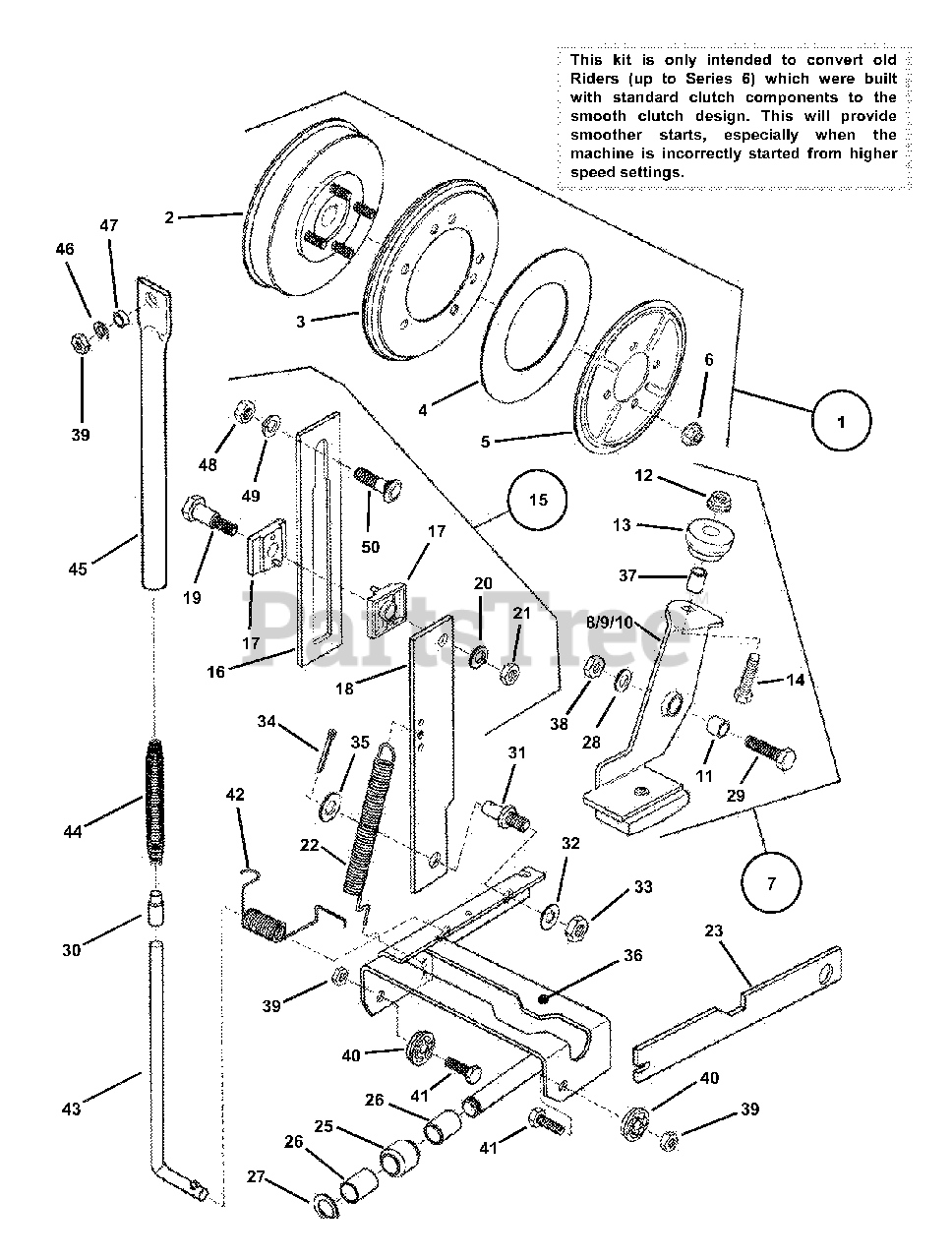

Smooth Clutch Kit Parts Diagram

  • Title
--

Snapper 7060601

KIT, Smooth Clutch Kit

Note: (Includes items 1 thru 35)

$31.99

$

In Stock, only 1 left!

0

1

Snapper 7053114

ASSEMBLY, Smooth Clutch
(Superseded to 7600208YP)

Note: (Includes items 2 thru 6)

$

$

Not available

2

Snapper 7059443

ASSEMBLY, Driven Disc Hub
(Superseded to 7600142YP)

Note: Was 54243

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7053103

FRICTION RING
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

4

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7051603

ASSEMBLY, Brake Lever
(Superseded to 7051603YP)

Note: (Includes items 8 thru 14)

$35.99

$

Usually ships in 2-12 days

0

8

Snapper 7031022

LINING, Brake

$

$

Currently unavailable

9

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7032337

LEVER, Brake

$

$

Currently unavailable

11

Snapper 7010916

SPACER
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 9

0

12

Snapper 7091545

NUT, 1/4-20 Hex Flange
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

13

Snapper 7015278

ROLLER
(Superseded to 7015278YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

15

Snapper 7051474

ASSEMBLY, Guide & Link

Note: (Includes items 16 thru 21)

$

$

Not available

16

Snapper 7032370

GUIDE, Clutch Link
(Superseded to 7032370YP)

$19.99

$

Usually ships in 2-12 days

0

17

Snapper 7014663

SLIDE HALF
(Superseded to 7014663YP)

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7032371

LINK, Clutch
(Superseded to 7032371YP)

$40.99

$

Usually ships in 2-12 days

0

19

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

$1.99

$

Usually ships in 2-12 days

0

20

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7013885

SPRING, Clutch/Brake
(Superseded to 7013885YP)

$

$

Not available

23

Snapper 7032392

TOOL, Smooth Clutch

$31.99

$

In Stock, only 1 left!

0

--

Snapper 7060610

BAG, Hardware

Note: (Includes items 25 thru 35)

$

$

Currently unavailable

25

Snapper 7014767

ROLLER, Parking Brake
(Superseded to 7014767YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7014599

SPACER, Roller
(Superseded to 7014599YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7010776

RING, 1/2" External Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

28

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090535

SCREW, 1/4-28 x 1" Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7014600

SPACER, Spring (Plug)

$

$

Not available

31

Snapper 7014680

STUD, Clutch Link (3/8-24 thread)
(Superseded to 703897)

$2.99

$

In Stock, only 1 left!

0

32

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

33

Snapper 7091630

NUT, 3/8"-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

35

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7047843

LIFT, Yoke
(Superseded to 7047843YP)

Note: Not included in kit.

$186.99

$

Usually ships in 2-12 days

0

37

Snapper 7014730

BUSHING
(Superseded to 7014730YP)

Note: Not included in kit.

$3.49

$

In Stock, only 1 left!

0

38

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

Note: Not included in kit.

$3.49

$

In Stock, Qty 7

0

39

Snapper 7090222

NUT, 5/16-24 Hex Center lock
(Superseded to 703896)

Note: Not included in kit.

$3.49

$

In Stock, Qty 20+

0

40

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

Note: Not included in kit.

$4.49

$

In Stock, Qty 20+

0

41

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

Note: Not included in kit.

$4.49

$

In Stock, Qty 5

0

42

Snapper 7011821

SPRING
(Superseded to 7011821YP)

Note: Not included in kit.

$14.99

$

Usually ships in 2-12 days

0

43

Snapper 7031729

ROD
(Superseded to 7031729YP)

Note: Not included in kit.

$9.49

$

Usually ships in 2-12 days

0

44

Snapper 7011820

SPRING, 25 Coils
(Superseded to 7011820YP)

Note: Not included in kit.

$5.99

$

In Stock, only 3 left!

0

--

Snapper 7014771

SPRING, 34 Coils
(Superseded to 7014771YP)

Note: Not included in kit.

$19.99

$

Usually ships in 2-12 days

0

45

Snapper 7021706

TUBE

Note: Not included in kit.

$

$

Not available

46

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

Note: Not included in kit.

$3.49

$

In Stock, Qty 20+

0

47

Snapper 7011968

ROLLER
(Superseded to 7011968YP)

Note: Not included in kit.

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130 (Not included in kit.)

$4.49

$

Usually ships in 2-12 days

0

49

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: Not included in kit.

$3.49

$

In Stock, Qty 16

0

50

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage
(Superseded to 703448)

Note: Was 90850 (Not included in kit.)

$4.49

$

In Stock, Qty 20+

0
