7060462 - Snapper Deck Belt Idler Belt Idler Parts Diagram

Deck Belt Idler

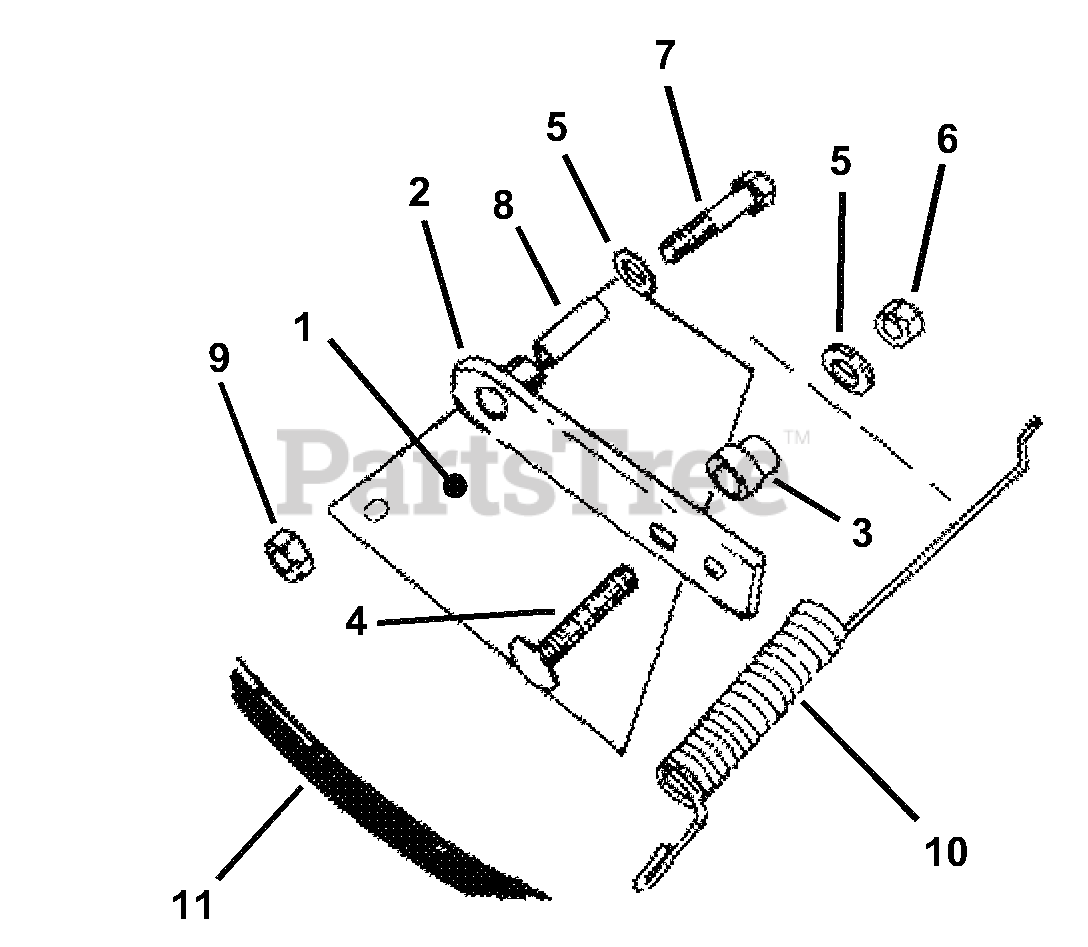

Belt Idler Parts Diagram

  • Title

--

Snapper 7060462

KIT, Deck Belt Idler Spring (42113S)

$

$

Currently unavailable

1

Snapper 7032136

SHIELD, Adjusting Slot Cover

$

$

Currently unavailable

2

Snapper 7040469

ARM, Idler (weldment)

$

$

Currently unavailable

3

Snapper 7021832

SPACER

$

$

Not available

4

Snapper 7090497

BOLT, 3/8-16 x 1-1/2" Square Neck Carriage

$

$

Not available

5

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7021834

BUSHING

$

$

Currently unavailable

9

Snapper 7090289

NUT, 3/8-Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7013942

SPRING

$

$

Not available

11

Snapper 7012524

BELT, HBX Sect. 89.625" Effective Length
(Superseded to 7012524YP)

$56.99

$

Usually ships in 2-12 days

0
