7060432 - Snapper Disc Hiller Kit Disc Hiller Parts Diagram

Disc Hiller Kit

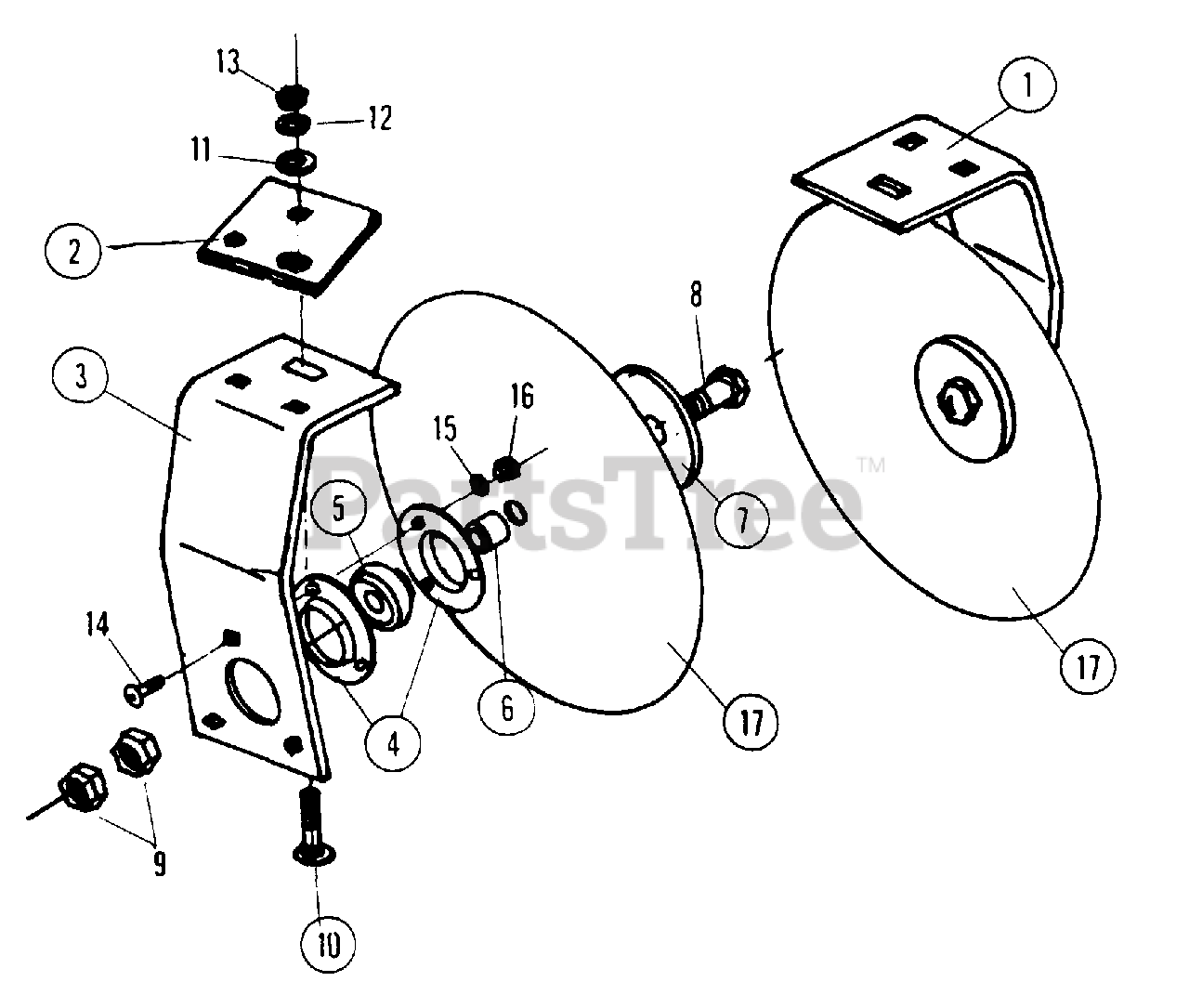

Disc Hiller Parts Diagram

  • Title
--

Snapper 7060432

DISC HILLER

$

$

Currently unavailable

1

Snapper 7013642

PLATE, RIGHT HAND MOUNTING

$

$

Currently unavailable

2

Snapper 7013636

CLAMP-PLATE

$

$

Currently unavailable

3

Snapper 7013643

PLATE, LEFT HAND MOUNTING

$

$

Currently unavailable

4

Snapper 7013644

FLANGETTE

$

$

Currently unavailable

5

Snapper 7013645

BEARING, 1-1/4

$

$

Currently unavailable

6

Snapper 7013646

BUSHING

$

$

Currently unavailable

7

Snapper 7013648

WASHER, REINFORCING

$

$

Currently unavailable

8

Snapper 7013647

BOLT, 1" x 3" HEX HEAD

$

$

Currently unavailable

9

Snapper 7090786

NUT, 1" HEX JAM

$

$

Currently unavailable

10

Snapper 7090570

BOLT, 1/2 x 2-3/4 CARRIAGE

$

$

Not available

11

Snapper 7090705

WASHER, 1/2 PLAIN
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 7090254

LOCKWASHER, 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7091316

NUT, 1/2" HEX
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

14

Snapper 7090645

BOLT, 3/8 x 1" CARRIAGE

$

$

Currently unavailable

15

Snapper 7090118

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Snapper 7091302

NUT, 3/8 HEX
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7013649

DISC-BLADE

$

$

Currently unavailable
