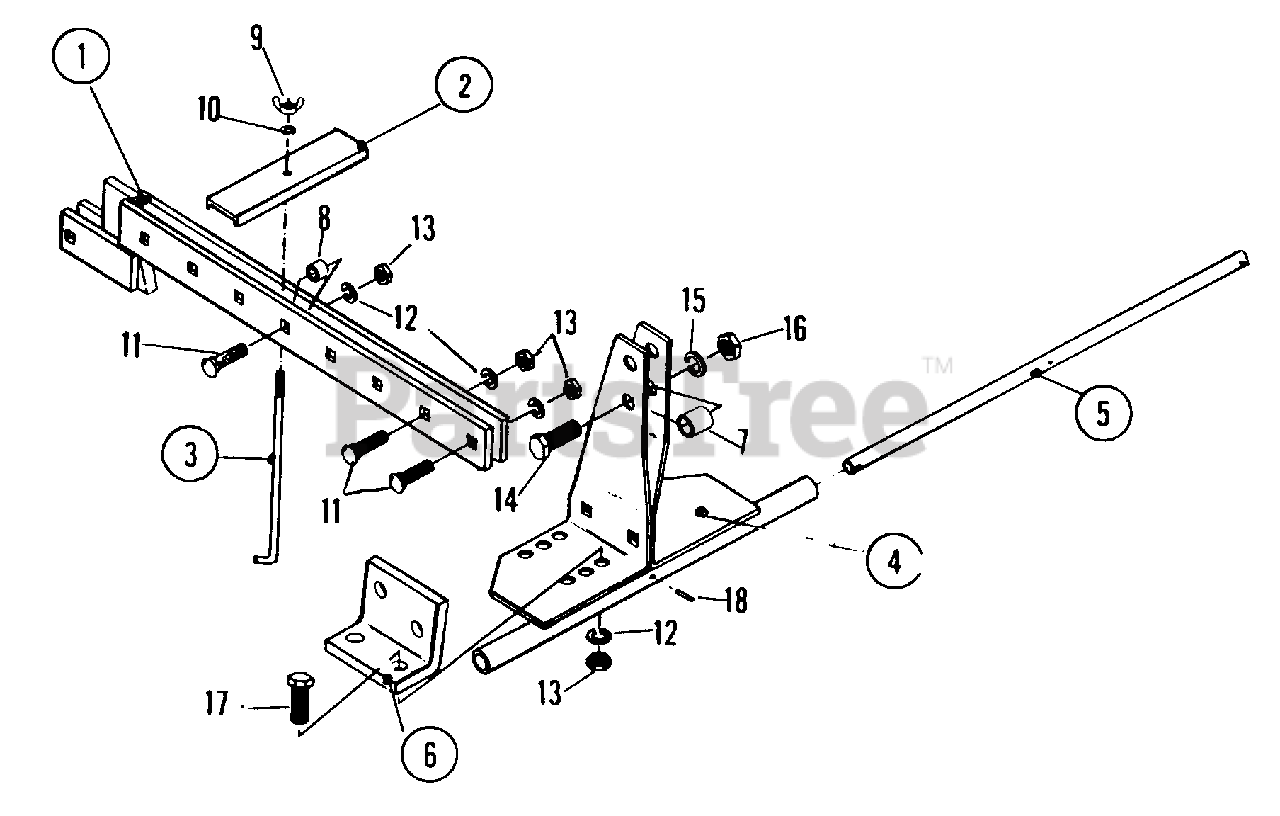

7060431 - Snapper Garden Tool Kit Tool Bar & Mast Parts Diagram

Garden Tool Kit

Tool Bar & Mast Parts Diagram

  • Title
1

Snapper 7013561

DRAWBAR

$

$

Currently unavailable

2

Snapper 7013613

STRAP, WEIGHT

$

$

Currently unavailable

3

Snapper 7013612

ROD, WEIGHT STRAP

$

$

Currently unavailable

4

Snapper 7013539

ADAPTER

$

$

Currently unavailable

5

Snapper 7013549

ROD, LOWER LINK

$

$

Currently unavailable

6

Snapper 7013551

PLATE, MOUNT

$

$

Currently unavailable

7

Snapper 7013558

SPACER, UPPER LINK

$

$

Currently unavailable

8

Snapper 7013573

BUSHING

$

$

Currently unavailable

9

Snapper 7013614

WING-NUT, 3/8

$

$

Currently unavailable

10

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Snapper 7090618

BOLT, 1/2 x 2" CARRIAGE

$

$

Currently unavailable

12

Snapper 7090254

LOCKWASHER, 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7091316

NUT, 1/2 HEX
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

14

Snapper 7090778

BOLT, 5/8 x 2-3/4 HEX

$

$

Currently unavailable

15

Snapper 7090333

LOCKWASHER, 5/8
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

16

Snapper 7090537

NUT, 5/8 HEX
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

17

Snapper 7090330

BOLT, 5/8 x 1-1/2 HEX
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7013550

SPIROL-PIN, 3/16D x 1"
(Superseded to 7013550YP)

$4.49

$

In Stock, only 3 left!

0
