7060431 - Snapper Garden Tool Kit Rear Blade Parts Parts Diagram

Garden Tool Kit

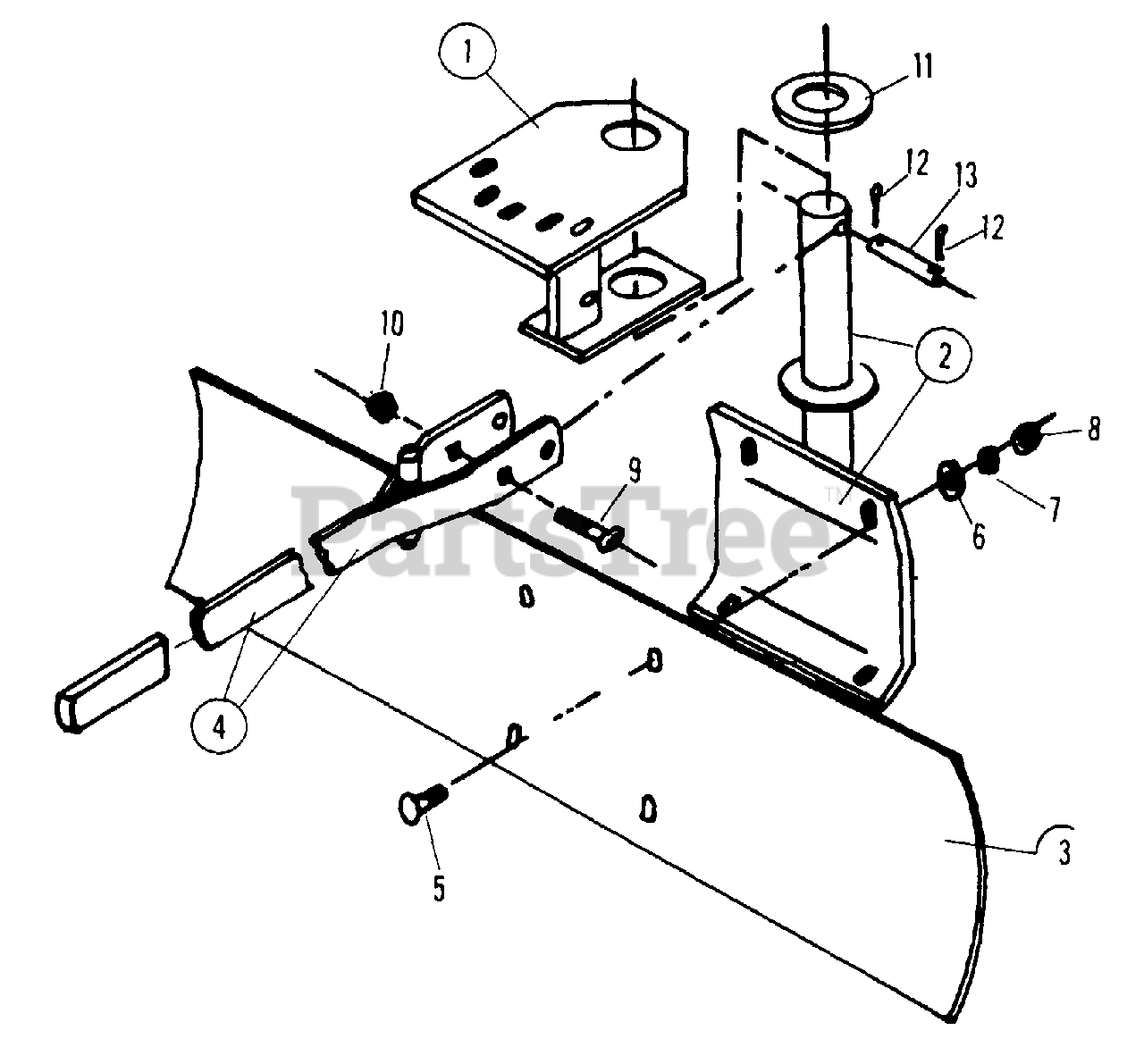

Rear Blade Parts Parts Diagram

  • Title

1

Snapper 7013626

BRACKET, PIVOT

$

$

Currently unavailable

2

Snapper 7013627

MOUNT, BLADE

$

$

Currently unavailable

3

Snapper 7013629

BLADE, 42"

$

$

Currently unavailable

4

Snapper 7013623

BAR, ANGLING

$

$

Currently unavailable

5

Snapper 7090645

BOLT, 3/8 x 1" CARRIAGE

$

$

Currently unavailable

6

Snapper 7090517

WASHER, 3/8 PLAIN
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

7

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

8

Snapper 7091302

NUT, 3/8 HEX
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7092000

BOLT, 3/8 x 2-3/4 CARRIAGE
(Superseded to 7092000SM)

Note: Was 90738

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7090499

LOCKNUT, 3/8 HEX
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7013628

WASHER, 1-1/4"

$

$

Currently unavailable

12

Snapper 7091598

COTTER-PIN, 1/8" D x 1"
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7013630

SHEAR-PIN, 7/16"

$

$

Currently unavailable
