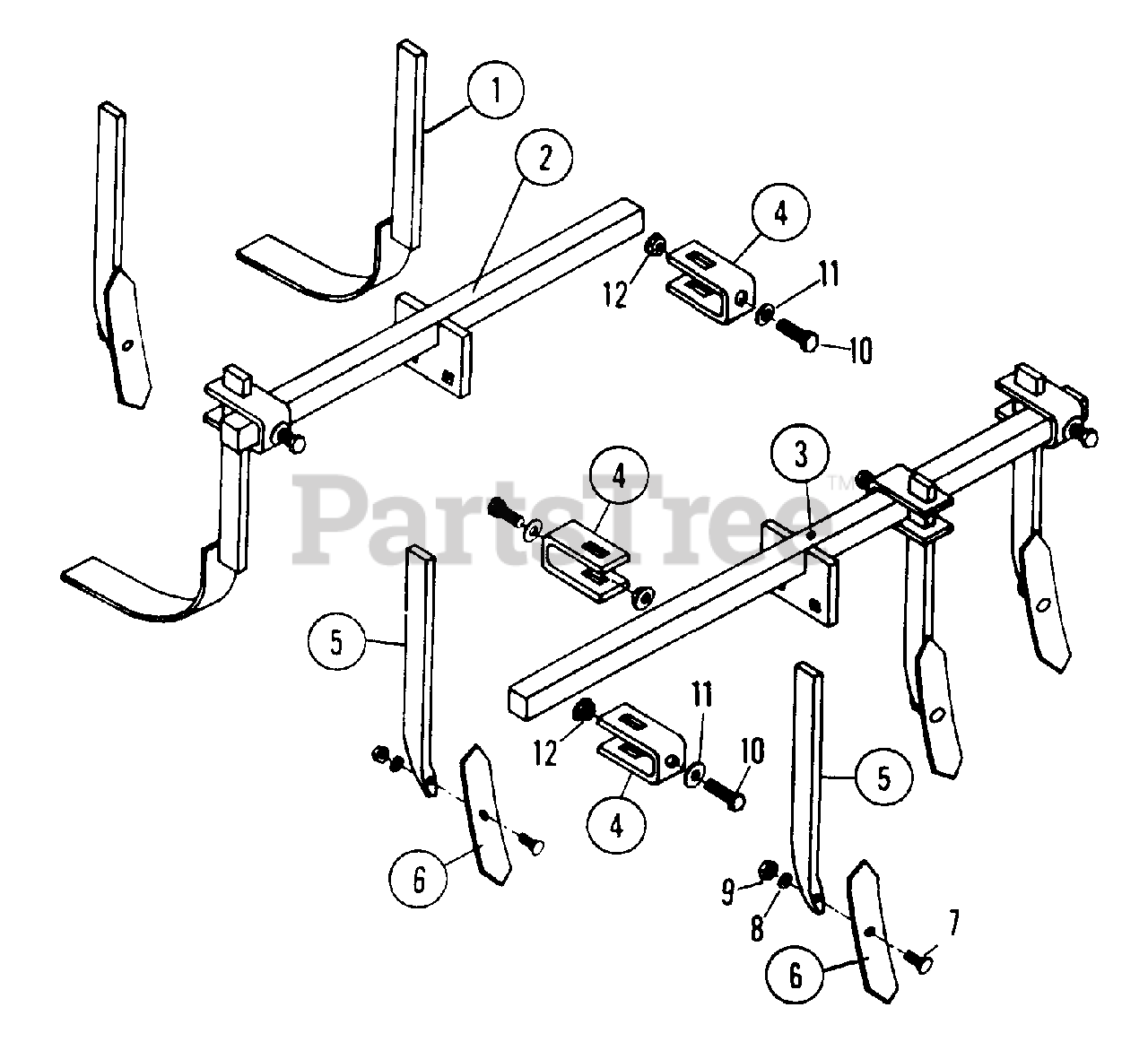

7060431 - Snapper Garden Tool Kit Cultivator Parts Parts Diagram

Garden Tool Kit

Cultivator Parts Parts Diagram

  • Title

1

Snapper 7013611

GAUGE-SHOE

$

$

Currently unavailable

2

Snapper 7013604

BAR, 26" CROSS

$

$

Currently unavailable

3

Snapper 7013603

BAR, 36" CROSS

$

$

Currently unavailable

4

Snapper 7013606

CLAMP, Shank

$

$

Currently unavailable

5

Snapper 7013605

SHANK

$

$

Currently unavailable

6

Snapper 7013609

SHOVEL, PLOW

$

$

Currently unavailable

7

Snapper 7090781

BOLT, 3/8 x 1-1/4 PLOW

$

$

Currently unavailable

8

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Snapper 7091302

NUT, 3/8 HEX
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7090330

BOLT, 1/2 x 1-1/2 HEX HEAD
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090705

WASHER, 1/2" PLAIN
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 7090619

NUT, 1/2 FLANGE
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

--

Snapper 7060431

KIT, Garden Tool (includes: 60432, 60433, 60434, 60435, & 60436)

Note: Brinley Hardy Mfg. components

$

$

Currently unavailable
