7060380 - Snapper 54" Dozer Blade Attachment for MF Series 54" Dozer Blade Parts Diagram

54" Dozer Blade Attachment for MF Series

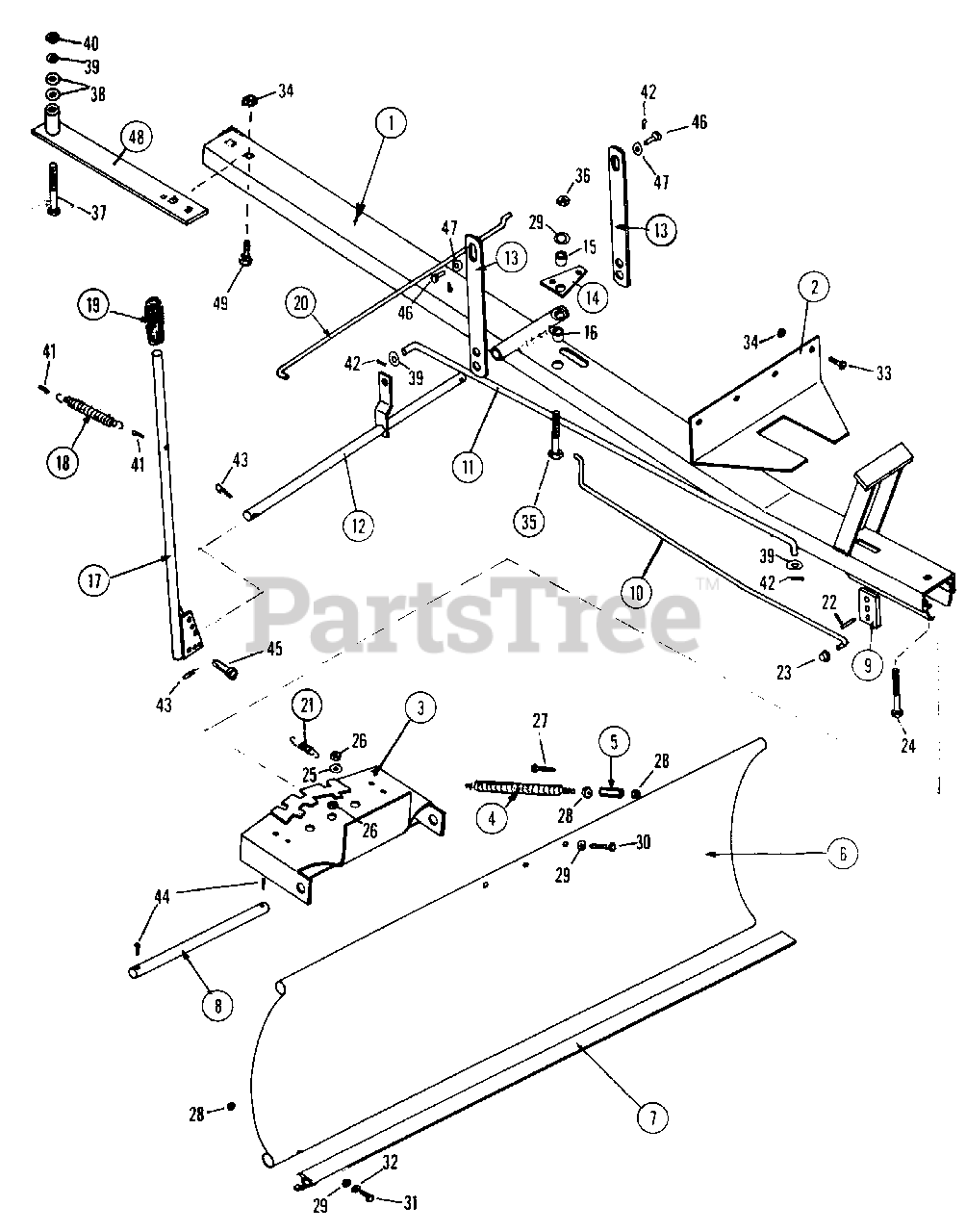

54" Dozer Blade Parts Diagram

  • Title
1

Snapper 7013122

FRAME, PUSH

$

$

Currently unavailable

2

Snapper 7013126

GUIDE, PUSH FRAME

$

$

Currently unavailable

3

Snapper 7013080

PLATE, PIVOT

$

$

Currently unavailable

4

Snapper 7013760

SPRING, BLADE TRIP
(Superseded to 7013760YP)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7013761

NUT, COUPLER

$

$

Currently unavailable

6

Snapper 7013120

BLADE, 54" DOZER

$

$

Currently unavailable

7

Snapper 7013121

BAR, 54" BLADE WEAR

$

$

Currently unavailable

8

Snapper 7013068

ROD, BLADE PIVOT

$

$

Currently unavailable

9

Snapper 7013116

BAR, PIVOT LATCH

$

$

Currently unavailable

10

Snapper 7013114

ROD, LATCH SIDE CONTROL

$

$

Currently unavailable

11

Snapper 7013125

ROD, BLADE ANGLING

$

$

Currently unavailable

12

Snapper 7013775

BAR, PIVOT

$

$

Currently unavailable

13

Snapper 7013776

STRAP, BLADE LIFT

$

$

Currently unavailable

14

Snapper 7013764

BELLCRANK, LATCH CONTROL

$

$

Currently unavailable

15

Snapper 7013763

BUSHING, BELLCRANK

$

$

Currently unavailable

16

Snapper 7013772

SPACER, BELLCRANK

$

$

Currently unavailable

17

Snapper 7013112

HANDLE, BLADE ANGLING

$

$

Currently unavailable

18

Snapper 7013771

SPRING, HANDLE RETURN

$

$

Currently unavailable

19

Snapper 7013070

GRIP, HANDLE

$

$

Currently unavailable

20

Snapper 7013124

ROD, LATCH CONTROL (LONG)

$

$

Currently unavailable

21

Snapper 7013073

SPRING, LATCH BAR LOCK

$

$

Currently unavailable

22

Snapper 7013072

PIN, SPIROL 1/4 x 1
(Superseded to 7013072YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7013257

NUT, 3/4C HALF HEX

$

$

Currently unavailable

24

Snapper 7090756

BOLT, 3/4C x 4 HEX HEAD

$

$

Not available

25

Snapper 7013074

WASHER, 3/4 ID. x 1-1/8 OD. FLAT

$

$

Currently unavailable

26

Snapper 7090757

NUT, 3/4C HALF HEX

$

$

Currently unavailable

27

Snapper 7090138

BOLT, 3/8C x 1 HEX FULL THREAD
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7091302

NUT, 3/8C HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7090758

BOLT, 3/8C x 5-1/2 HEX HEAD

$

$

Currently unavailable

31

Snapper 7090645

BOLT, 3/8C x 1 CARRIAGE

$

$

Currently unavailable

32

Snapper 7090118

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

33

Snapper 7090646

BOLT, 1/2C x 1 HEX HEAD

$

$

Not available

34

Snapper 7090706

LOCKNUT, 1/2C HEX

$

$

Currently unavailable

35

Snapper 7091497

BOLT, 3/8C x 1-1/2 HEX HEAD
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

36

Snapper 7091619

LOCKNUT, 3/8C HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

37

Snapper 7090754

BOLT, 5/8C x 4-1/2 HEX HEAD

$

$

Not available

38

Snapper 7013108

WASHER, 5/8ID x 1-3/8 OD. RUBBER

$

$

Currently unavailable

39

Snapper 7090183

WASHER, 5/8 FLAT
(Superseded to 7090183YP)

$4.49

$

In Stock, only 3 left!

0

40

Snapper 7090755

LOCKNUT, 5/8C HEX

$

$

Not available

41

Snapper 7091515

PIN, 3/16 x 1-1/2 COTTER
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 13

0

42

Snapper 7013773

PIN, HAIR COTTER

$

$

Currently unavailable

43

Snapper 7013113

PIN, HAIR COTTER

$

$

Currently unavailable

44

Snapper 7090654

PIN, 5/32 x 1-1/4 COTTER

$

$

Currently unavailable

45

Snapper 7012715

PIN, 3/8 x 1 -1/4

$

$

Not available

46

Snapper 7013111

PIN, 1/2 x 1 CLEVIS
(Superseded to 7013111YP)

$3.99

$

Usually ships in 2-12 days

0

47

Snapper 7090250

WASHER, 1/2" FLAT
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

48

Snapper 7013123

EXTENSION, PUSH FRAME (MOUNTING BAR)

$

$

Currently unavailable

49

Snapper 7090768

BOLT, Carriage 1/2-13X1-1/2
(Superseded to 7090768YP)

Note: Was (NLA) BOLT, 1/2C x 1-1/4 CARRIAGE

$3.49

$

Usually ships in 2-12 days

0

--

Snapper 7060380

KIT, Dozer Blade

$

$

Currently unavailable
