7060377 - Snapper 48" Snow Thrower Attachment for MF Series Lift, Crank & Mounting Parts Diagram

48" Snow Thrower Attachment for MF Series

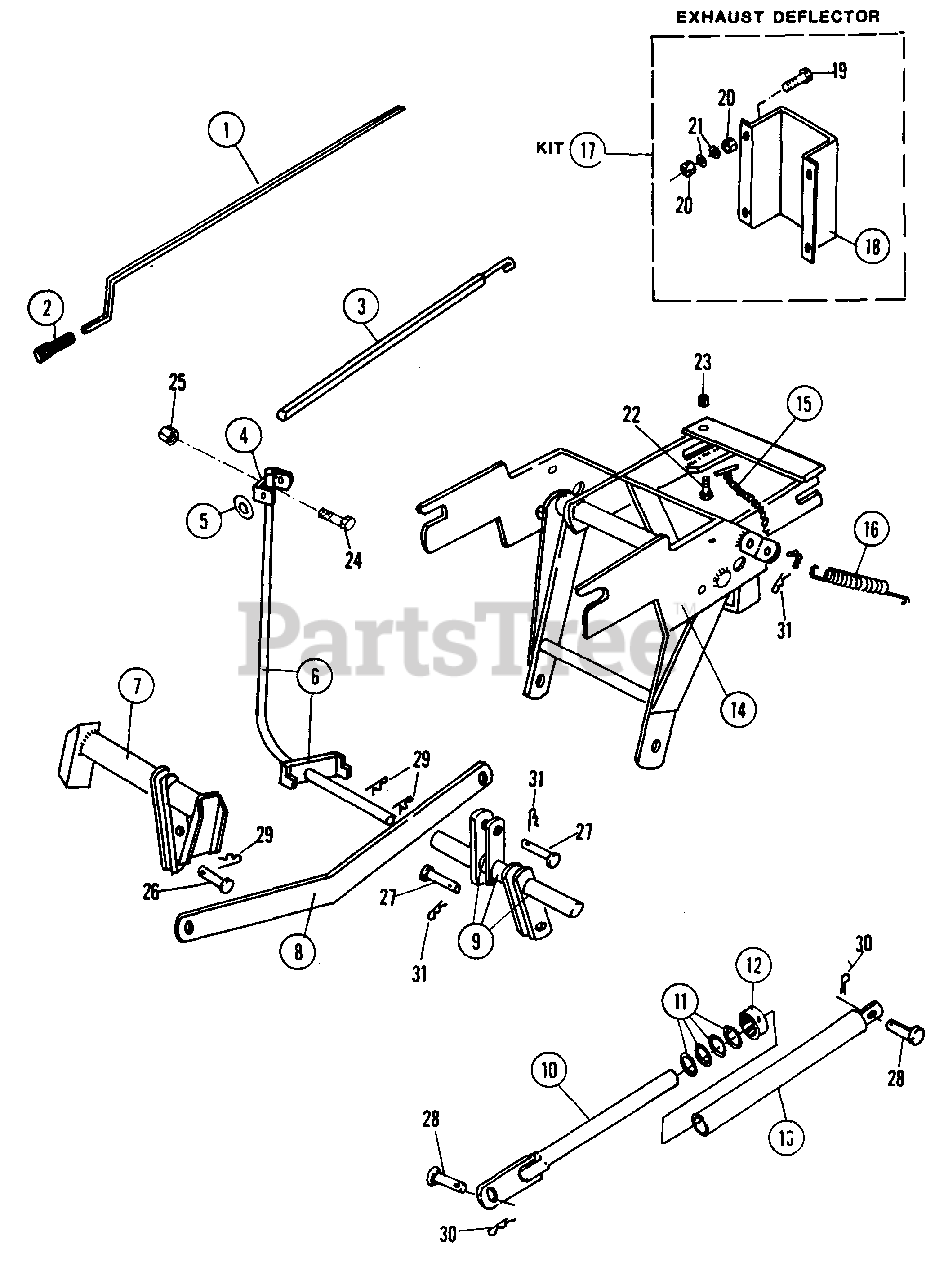

Lift, Crank & Mounting Parts Diagram

  • Title
1

Snapper 13466

ROD, CHUTE CRANK CONTROL

$

$

Currently unavailable

2

Snapper 13467

GRIP, HANDLE

$

$

Currently unavailable

3

Snapper 7013468

EXTENSION, CRANK ROD

$

$

Currently unavailable

4

Snapper 13465

GUIDE, CRANK CONTROL

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 14079

DECAL, CHUTE CONTROL

$

$

Currently unavailable

6

Snapper 13464

ROD, CRANK SUPPORT

$

$

Currently unavailable

7

Snapper 13457

LINKAGE, BELLCRANK

$

$

Currently unavailable

8

Snapper 13520

STRAP, LINK

$

$

Currently unavailable

9

Snapper 13461

LINKAGE, LIFT

$

$

Currently unavailable

10

Snapper 7014081

ROD, LIFT

$

$

Currently unavailable

11

Snapper 7032028

WASHER, LIFT STOP ADJUSTING
(Superseded to 7032028YP)

Note: Was 90279

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7014087

COLLAR, LIFT TUBE

$

$

Not available

13

Snapper 14086

TUBE, LIFT

$

$

Currently unavailable

14

Snapper 13501

BRACKET, SNOW THROWER MOUNTING

$

$

Currently unavailable

15

Snapper 7013519

CHAIN, TOGGLE

$

$

Currently unavailable

16

Snapper 7013469

SPRING, LIFT ASSIST.

$

$

Currently unavailable

17

Snapper 14082

KIT, EXHAUST DEFLECTOR

Note: (INCLUDES ITEMS 18 THRU 21)

$

$

Currently unavailable

18

Snapper 7014094

PLATE, EXHAUST DEFLECTOR

$

$

Currently unavailable

19

Snapper 7027230

BOLT, 1/4-20x1" HEX HEAD
(Superseded to 703820)

Note: Was 90745

$3.99

$

In Stock, only 4 left!

0

20

Snapper 7091576

NUT, 1/4-20 HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091098

WASHER, 17/16x5/8x.049 FLAT
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7090372

BOLT, 3/8cx1" HEX HEAD
(Superseded to 703954)

$

$

Not available

23

Snapper 7091585

LOCKNUT, 3/8c HEX
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

24

Snapper 7091497

BOLT, 3/8-16x1-1/2 HEX HEAD
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

25

Snapper 7091619

LOCKNUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

26

Snapper 13458

PIN, LIFT RETAINING CLEVIS

$

$

Currently unavailable

27

Snapper 7013460

PIN, LIFT LINK CLEVIS

$

$

Not available

28

Snapper 13463

PIN, LIFT TUBE CLEVIS

$

$

Currently unavailable

29

Snapper 12998

PIN, HAIR COTTER

$

$

Currently unavailable

30

Snapper 14055

PIN, COTTER

$

$

Currently unavailable

31

Snapper 13439

PIN, CHAIN RETAINING HAIR

$

$

Currently unavailable
