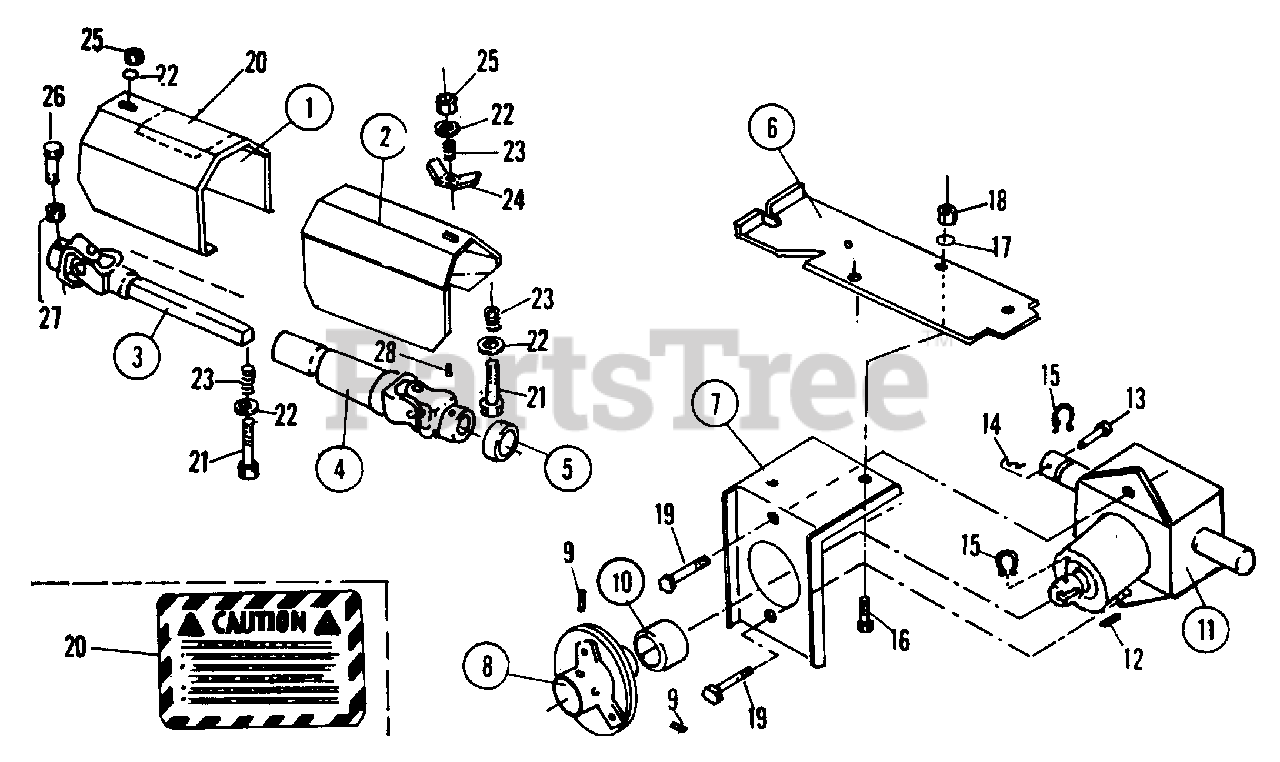

7060377 - Snapper 48" Snow Thrower Attachment for MF Series Drive, Gear Box Parts Parts Diagram

48" Snow Thrower Attachment for MF Series

Drive, Gear Box Parts Parts Diagram

  • Title
1

Snapper 13516

COVER, LEFT SIDE PTO

$

$

Currently unavailable

2

Snapper 13517

COVER, RIGHT SIDE PTO

$

$

Currently unavailable

3

Snapper 18457

SLIP-JOINT, FEMALE END

$

$

Currently unavailable

4

Snapper 13514

SLIP-JOINT, MALE END

$

$

Currently unavailable

5

Snapper 13796

SPACER, SLIP-JOINT TO GEAR BOX

$

$

Currently unavailable

6

Snapper 18458

PLATE, GEAR BOX MOUNTING

$

$

Currently unavailable

7

Snapper 18459

BRACKET, GEAR BOX MOUNTING

$

$

Currently unavailable

8

Snapper 14088

COUPLER ASSEMBLY (ENGINE TO GEARBOX)

$

$

Currently unavailable

9

Snapper 7090954

SETSCREW, 5/16-18 x 5/16 HEX SOCKET
(Superseded to 7090954YP)

Note: Was 13525

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 13795

SPACER, COUPLER TO GEARBOX

$

$

Currently unavailable

11

Snapper 7018456

GEARBOX ASSEMBLY, COMPLETE (PEERLESS #3573P91)

$

$

Currently unavailable

12

Snapper 7013431

KEY, GEAR BOX INPUT SHAFT
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 14093

PIN, SHEAR

$

$

Currently unavailable

14

Snapper 7013778

PIN, COTTER

$

$

Currently unavailable

15

Snapper 13792

RING, RETAINING

$

$

Currently unavailable

16

Snapper 7091304

BOLT, 3/8-16 x 1" HEX HEAD
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

17

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Snapper 7091302

NUT, 3/8-16 x HEX
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 90556

BOLT, 1/2-13 x 3/4 HEX HEAD

$1.49

$

Usually ships in 2-12 days

0

20

Snapper 13383

DECAL, CAUTION

$

$

Currently unavailable

21

Snapper 13527

BOLT, 3/8-16 x 2-3/4 HEX HEAD

$

$

Not available

22

Snapper 7090122

WASHER, 7/16 FLAT
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 12983

SPRING, PTO COVER

$

$

Currently unavailable

24

Snapper 13518

WING-BRACKET

$

$

Currently unavailable

25

Snapper 7091585

LOCKNUT, 3/8-16 HEX
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

26

Snapper 13358

BOLT, 1/4C x 2 HEX

$

$

Currently unavailable

27

Snapper 7090372

LOCKNUT, 1/4C HEX
(Superseded to 703954)

$

$

Not available

28

Snapper 13437

FITTING, GREASE

$

$

Currently unavailable
