7060377 - Snapper 48" Snow Thrower Attachment for MF Series Discharge, Header Parts Diagram

48" Snow Thrower Attachment for MF Series

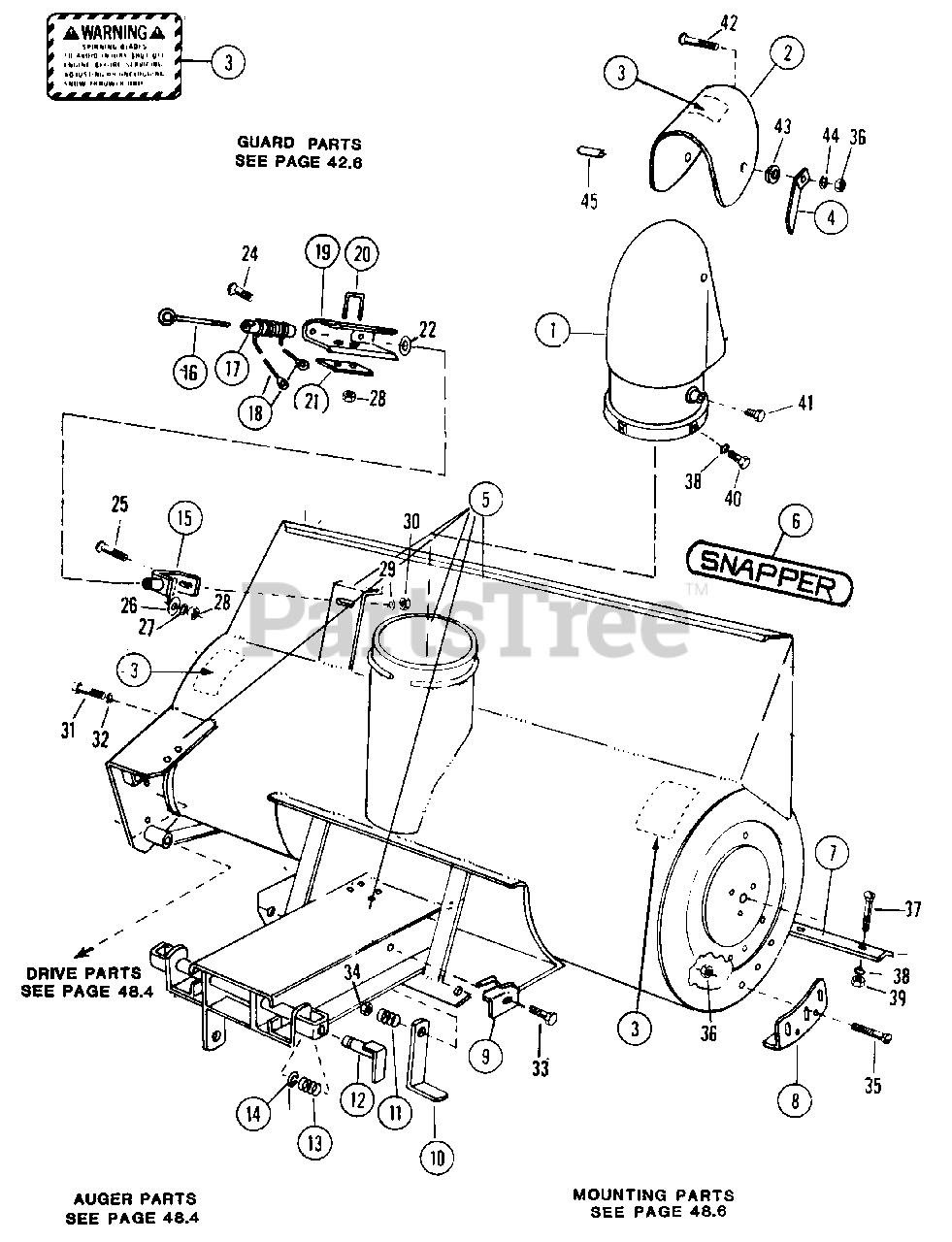

Discharge, Header Parts Diagram

  • Title
1

Snapper 13409

CHUTE, DISCHARGE

$

$

Currently unavailable

2

Snapper 13410

DEFLECTOR

$

$

Currently unavailable

3

Snapper 13381

DECAL, WARNING (SPINNING BLADES)

$

$

Currently unavailable

4

Snapper 13412

STRAP, DEFLECTOR LOCKING

$

$

Currently unavailable

5

Snapper 13475

HEADER, 48" SNOWTHROWER

$

$

Currently unavailable

6

Snapper 7019668

DECAL, SNAPPER
(Superseded to 7019668YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7013476

BLADE, SCRAPER
(Superseded to 7013476YP)

$103.99

$

Usually ships in 2-12 days

0

8

Snapper 7014092

SHOE, SKID

$

$

Not available

9

Snapper 14083

BRACKET, DOWN-STOP

$

$

Currently unavailable

10

Snapper 13480

KICKSTAND

$43.99

$

Usually ships in 2-12 days

0

11

Snapper 13481

SPRING, KICKSTAND

$

$

Currently unavailable

12

Snapper 13477

PIN, QUICK COUPLER

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7013478

SPRING, COUPLER

$

$

Currently unavailable

14

Snapper 13479

RING, PIN RETAINING

$

$

Currently unavailable

15

Snapper 13386

BRACKET, CHUTE DRIVE

$

$

Currently unavailable

16

Snapper 13389

EYE-BOLT, CHUTE DRIVE

$

$

Currently unavailable

17

Snapper 13388

TUBE, CHUTE DRIVE

$

$

Currently unavailable

18

Snapper 7013387

CABLE, CHUTE DRIVE
(Superseded to 7013387YP)

$43.99

$

Usually ships in 2-12 days

0

19

Snapper 7013385

SHROUD, CHUTE DRIVE

$

$

Not available

20

Snapper 13391

U-BOLT, LEVEL WIND

$

$

Currently unavailable

21

Snapper 13392

STRAP, LEVEL WIND FRICTION

$

$

Currently unavailable

22

Snapper 13390

WASHER, STACK CONTROL

$

$

Currently unavailable

?23

Snapper 7090372

LOCKNUT, 1/4C
(Superseded to 703954)

$

$

Not available

24

Snapper 13424

BOLT, 3/8C x 3/4 CARRIAGE

$1.99

$

Usually ships in 2-12 days

0

25

Snapper 13425

BOLT, 3/8C x 1 CARRIAGE

$

$

Currently unavailable

26

Snapper 7090517

WASHER, 3/8" FLAT
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

27

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

28

Snapper 7091302

NUT, 3/8C HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7091585

LOCK NUT, 3/8C HEX
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

31

Snapper 7062038

BOLT, 1/2C x 1-1/4 HEX HEAD

Note: Was 90656

$

$

Currently unavailable

32

Snapper 7090254

LOCKWASHER, 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7091305

BOLT, 3/8C x 2 HEX HEAD
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7091585

LOCKNUT, 3/8C HEX
(Superseded to 703347)

Note: Was 13529

$4.99

$

In Stock, only 2 left!

0

35

Snapper 7090316

BOLT, 5/16C x 3/4 CARRIAGE
(Superseded to 703225)

Note: Was 90670

$3.99

$

In Stock, Qty 18

0

36

Snapper 90709

LOCKNUT, 5/16C (CENTER NYLON)

$

$

Currently unavailable

37

Snapper 7091573

BOLT, 1/4C x 5/8 CARRIAGE
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

38

Snapper 7090052

LOCKWASHER, 1/4"
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

39

Snapper 7091576

NUT, 1/4C HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

40

Snapper 90668

BOLT, 1/4C x 5/8 HEX HEAD

$

$

Currently unavailable

41

Snapper 13415

BOLT, 1/4C x 1/2 HEX HEAD

$

$

Currently unavailable

42

Snapper 7091303

BOLT, 5/16C x 1" CARRIAGE
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0

43

Snapper 7090517

WASHER, 13/32 x 1-1/2
(Superseded to 7090517SM)

Note: Was 13413

$4.49

$

In Stock, Qty 8

0

44

Snapper 7090390

LOCKWASHER, 3/8 INTERNAL TOOTH
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

45

Snapper 13411

PAD, DEFLECTOR

$

$

Currently unavailable
