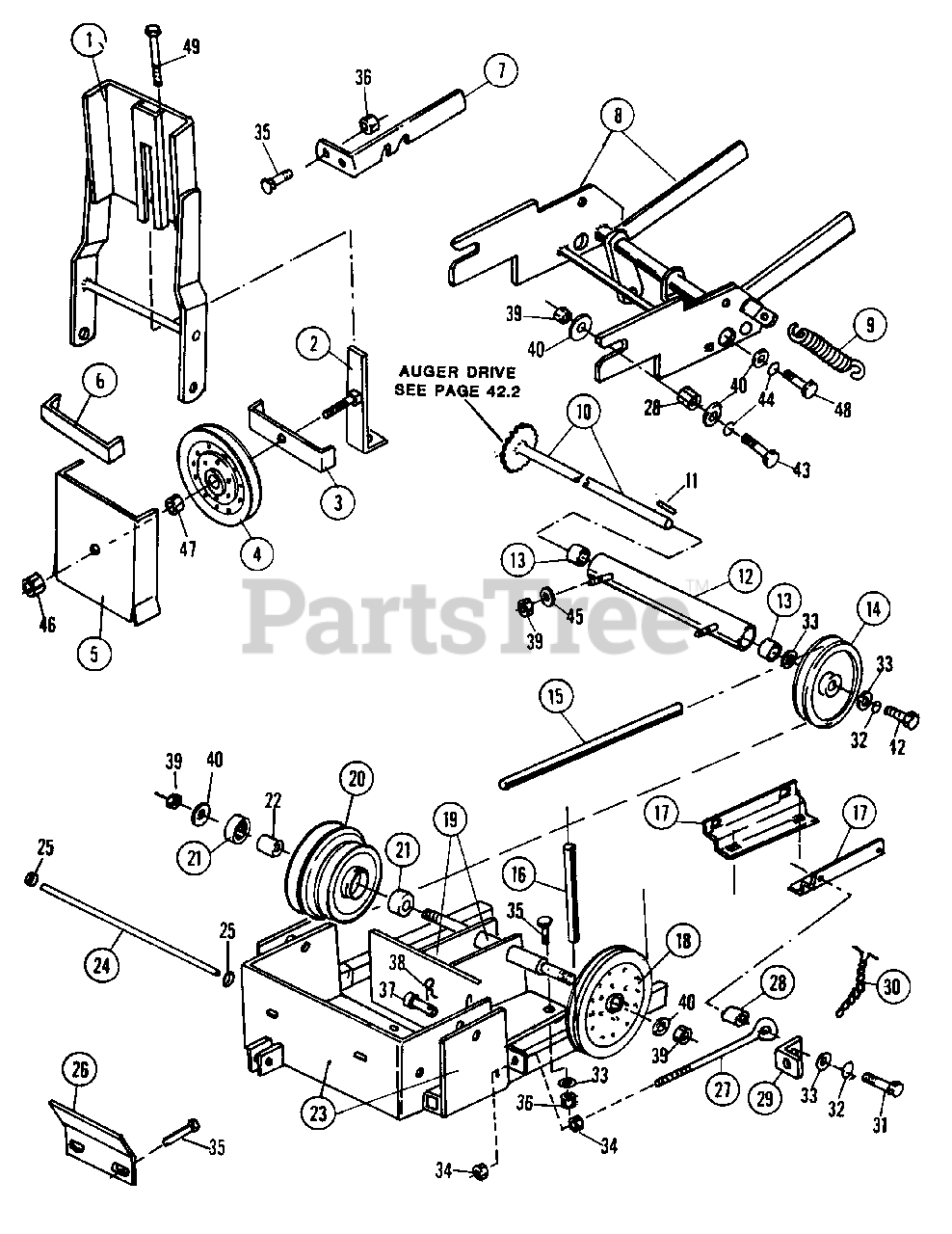

7060376 - Snapper 42" Snow Thrower Attachment for MF Series Mounting & Drive Parts Parts Diagram

42" Snow Thrower Attachment for MF Series

Mounting & Drive Parts Parts Diagram

  • Title
1

Snapper 12976

BRACKET, IDLER PULLEY MOUNTING

$

$

Currently unavailable

2

Snapper 13433

BAR, IDLER PULLEY MOUNTING

$

$

Currently unavailable

3

Snapper 13452

BAR, PULLEY SUPPORT

$

$

Currently unavailable

4

Snapper 7014072

PULLEY, IDLER (UPPER)

$

$

Currently unavailable

5

Snapper 13454

COVER, IDLER PULLEY

$

$

Currently unavailable

6

Snapper 13411

MOLDING, RUBBER

$

$

Currently unavailable

7

Snapper 12977

STRAP, IDLER RELEASE STOP

$

$

Currently unavailable

8

Snapper 13451

BRACKET, FRONT MOUNTING

$

$

Currently unavailable

9

Snapper 7013469

SPRING, LIFT ASSIST

$

$

Currently unavailable

10

Snapper 13428

SPROCKET JACKSHAFT

$

$

Currently unavailable

11

Snapper 7013431

KEY, 3/16 SQUARE x 1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 12978

HOUSING, JACKSHAFT

Note: (INCLUDES 2 of ITEM 13)

$

$

Currently unavailable

13

Snapper 13427

BEARING, NEEDLE

$

$

Currently unavailable

14

Snapper 13429

PULLEY, JACKSHAFT DRIVE

$

$

Currently unavailable

15

Snapper 7013434

BELT, DRIVE

$

$

Not available

16

Snapper 7013536

BELT, IDLER
(Superseded to 7013536YP)

$19.99

$

Usually ships in 2-12 days

0

17

Snapper 13435

BRACKET, CHANNEL

$

$

Currently unavailable

18

Snapper 7014071

PULLEY, IDLER (LOWER-RIVETED)

$

$

Not available

19

Snapper 13436

BRACKET, PULLEY MOUNTING

Note: (INCLUDES SHAFT)

$

$

Currently unavailable

20

Snapper 13440

PULLEY, DRIVE BELT

$

$

Currently unavailable

21

Snapper 7013443

BEARING, PULLEY
(Superseded to 7013443YP)

$61.99

$

In Stock, only 1 left!

0

22

Snapper 13442

SPACER, BEARING

$

$

Currently unavailable

23

Snapper 13437

FRAME, DRIVE

$

$

Currently unavailable

24

Snapper 13449

ROD, BELT POPPER

$

$

Currently unavailable

25

Snapper 13450

CLIP, SPRING

$

$

Currently unavailable

26

Snapper 13472

PLATE, FRAME SUPPORT

$

$

Currently unavailable

27

Snapper 13445

EYE-BOLT

$

$

Currently unavailable

28

Snapper 13470

SPACER

$

$

Currently unavailable

29

Snapper 13448

BRACKET, CHAIN ANCHOR

$

$

Currently unavailable

30

Snapper 7013519

CHAIN, ANCHOR TOGGLE

$

$

Currently unavailable

31

Snapper 7091305

BOLT, 3/8-16x2 HEX HEAD
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

Note: Was 13474

$3.49

$

In Stock, Qty 18

0

33

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7090625

NUT, 1/2 HALF HEX

$

$

Not available

35

Snapper 7091640

BOLT, 3/8-16 CARRIAGE
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

36

Snapper 7091619

LOCKNUT, 3/8 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

37

Snapper 13438

CLEVIS-PIN, 5/8x1-7/8

$

$

Currently unavailable

38

Snapper 13439

HAIR-PIN

$

$

Currently unavailable

39

Snapper 7091316

LOCKNUT, 1/2-13 HEX
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

40

Snapper 7090250

WASHER, 17/32x1-1/16x3/32
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

?41

Snapper 7091304

BOLT, 3/8x1" HEX HEAD
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

42

Snapper 13473

BOLT, 3/8x3/4 HEX HEAD

$

$

Currently unavailable

43

Snapper 7090330

BOLT, 1/2-13x1-1/2 HEX HEAD
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7090254

LOCKWASHER, 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

45

Snapper 13535

WASHER, 1/2x1-1/4x5/64

$569.99

$

Usually ships in 2-12 days

0

46

Snapper 90686

NUT, 5/8 HALF HEX
(Superseded to 90686GS)

$14.99

$

Usually ships in 2-12 days

0

47

Snapper 7090537

NUT, 5/8 C HEX
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

48

Snapper 7062038

BOLT, 1/2-13 x 1-1/4 HEX HEAD

Note: Was 90656

$

$

Currently unavailable

49

Snapper 13455

BOLT, 1/2c SPECIAL BELT ADJUSTING

$

$

Currently unavailable
