7060376 - Snapper 42" Snow Thrower Attachment for MF Series Chute, Crank & Lift Linkage Parts Diagram

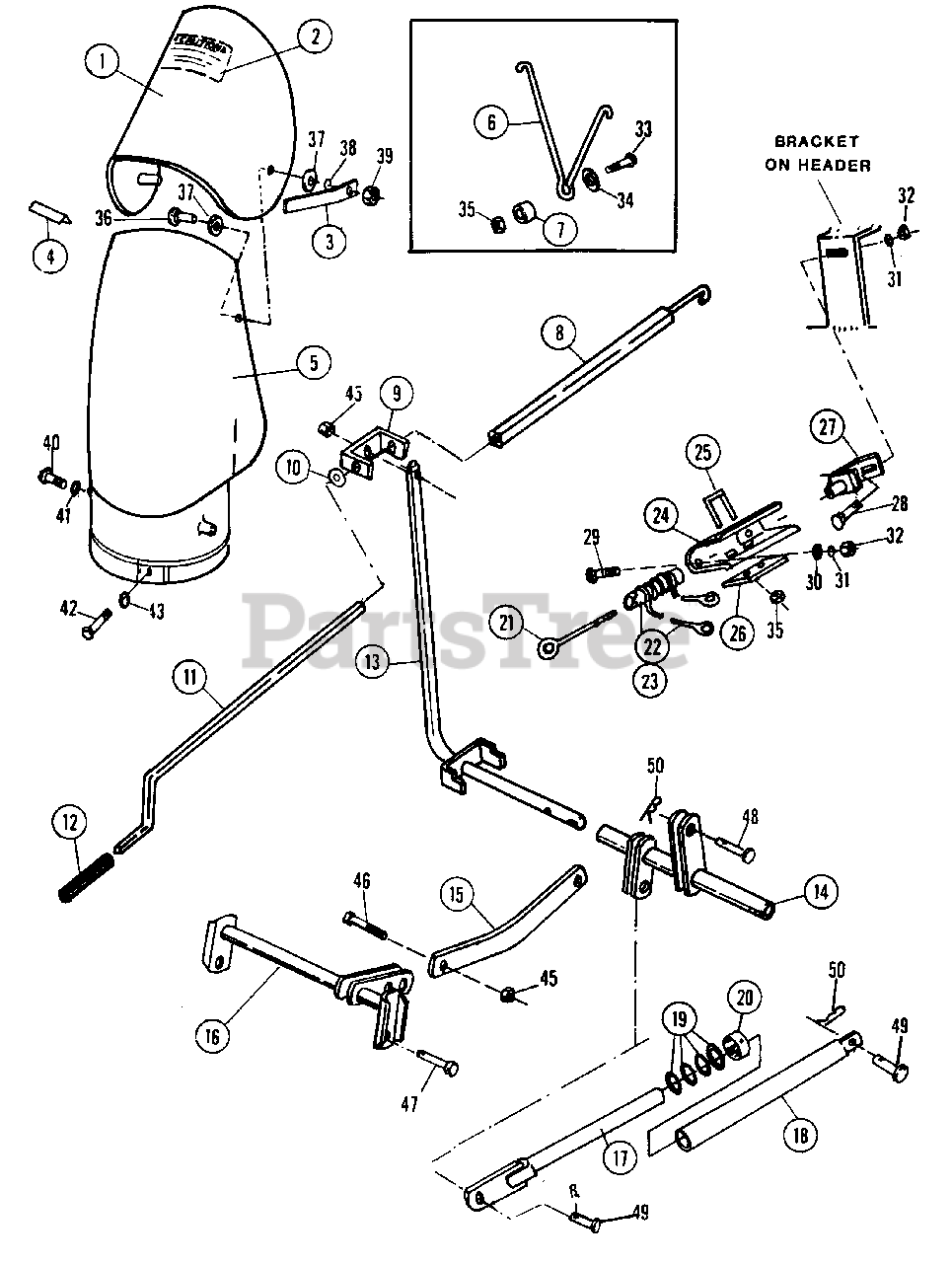

42" Snow Thrower Attachment for MF Series

Chute, Crank & Lift Linkage Parts Diagram

  • Title
1

Snapper 13380

DEFLECTOR, DISCHARGE

$

$

Currently unavailable

2

Snapper 13381

DECAL, WARNING (SPINNING BLADES)

$

$

Currently unavailable

3

Snapper 13412

STRAP, DEFLECTOR LOCKING

$

$

Currently unavailable

4

Snapper 13411

MOLDING, RUBBER

$

$

Currently unavailable

5

Snapper 13409

CHUTE, DISCHARGE

$

$

Currently unavailable

6

Snapper 13415

GUARD, SPRING HOOK

$

$

Currently unavailable

7

Snapper 13416

SPACER, SPRING HOOK

$

$

Currently unavailable

8

Snapper 7013468

EXTENSION, CRANK ROD

$

$

Currently unavailable

9

Snapper 13465

GUIDE, CRANK ROD

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 14079

DECAL, CHUTE CONTROL

$

$

Currently unavailable

11

Snapper 13466

ROD, CRANK CONTROL

$

$

Currently unavailable

12

Snapper 13467

GRIP, CRANK CONTROL HANDLE

$

$

Currently unavailable

13

Snapper 13464

SUPPORT, CRANK ROD

$

$

Currently unavailable

14

Snapper 13461

LINKAGE LIFT

$

$

Currently unavailable

15

Snapper 13459

STRAP, LINK

$

$

Currently unavailable

16

Snapper 13457

LINKAGE, BELLCRANK

$

$

Currently unavailable

17

Snapper 7014081

ROD, LIFT

$

$

Currently unavailable

18

Snapper 14080

TUBE, LIFT

$

$

Currently unavailable

19

Snapper 7032028

WASHER, LIFT STOP ADJUSTING
(Superseded to 7032028YP)

Note: Was 90279

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7014087

COLLAR, LIFT TUBE

$

$

Not available

21

Snapper 13389

EYE-BOLT

$

$

Currently unavailable

22

Snapper 7013387

CABLE-TUBE ASSEMBLY
(Superseded to 7013387YP)

Note: (INCLUDES ITEM 23)

$43.99

$

Usually ships in 2-12 days

0

23

Snapper 13388

TUBE, CHUTE DRIVE

$

$

Currently unavailable

24

Snapper 7013385

SHROUD, CHUTE DRIVE

$

$

Not available

25

Snapper 13391

U-BOLT, LEVEL WIND

$

$

Currently unavailable

26

Snapper 13392

STRAP, LEVEL WIND FRICTION

$

$

Currently unavailable

27

Snapper 13386

BRACKET, CHUTE DRIVE MOUNTING

$

$

Currently unavailable

28

Snapper 13424

BOLT, 3/8cx3/4 CARRIAGE

$1.99

$

Usually ships in 2-12 days

0

29

Snapper 7091640

BOLT, 3/8cx1" CARRIAGE
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

30

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

31

Snapper 7090118

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

32

Snapper 7091302

NUT, 3/8 C HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 13420

BOLT, 1/4cx1-1/4 HEX HEAD

$

$

Currently unavailable

34

Snapper 7014241

WASHER, SPECIAL RETAINER
(Superseded to 7014241YP)

Note: Was 13414

$3.99

$

In Stock, only 1 left!

0

35

Snapper 7090372

LOCKNUT, 1/4C HEX
(Superseded to 703954)

$

$

Not available

36

Snapper 13422

BOLT, 5/16-18x1" CARRIAGE

$

$

Currently unavailable

37

Snapper 7090517

WASHER, DEFLECTOR
(Superseded to 7090517SM)

Note: Was 13413

$4.49

$

In Stock, Qty 8

0

38

Snapper 7090187

LOCKWASHER, 5/8"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 13423

LOCKNUT, 5/8c HEX

$

$

Currently unavailable

40

Snapper 13419

BOLT, 1/4-20x1-1/2 HEX HEAD

$

$

Currently unavailable

41

Snapper 7014241

WASHER, CABLE RETAINING
(Superseded to 7014241YP)

Note: Was 13414

$3.99

$

In Stock, only 1 left!

0

42

Snapper 90682

BOLT, 1/4-20x5/8 HEX HEAD

$

$

Currently unavailable

43

Snapper 7090052

LOCKWASHER, 1/4"
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

?44

Snapper 7091497

BOLT, 3/8-16x1-1/2 HEX HEAD
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

45

Snapper 7091619

LOCKNUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

46

Snapper 7091328

BOLT, 3/8-16x1-1/4 HEX HEAD
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

47

Snapper 13458

CLEVIS, PIN

$

$

Currently unavailable

48

Snapper 7013460

CLEVIS-PIN

$

$

Not available

49

Snapper 13463

CLEVIS-PIN

$

$

Currently unavailable

50

Snapper 12998

HAIR PIN, COTTER

$

$

Currently unavailable
