7060376 - Snapper 42" Snow Thrower Attachment for MF Series Auger & Header Parts Diagram

42" Snow Thrower Attachment for MF Series

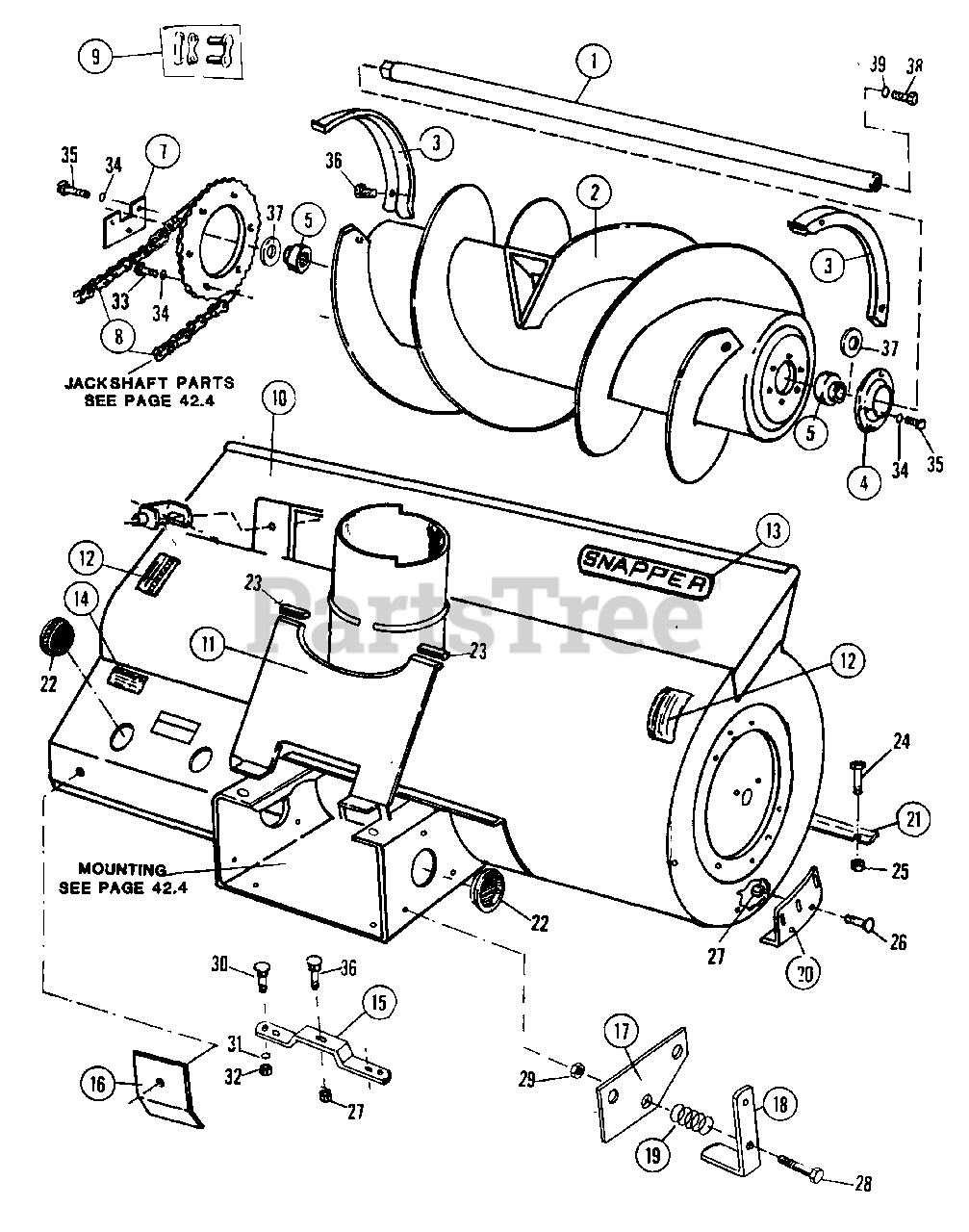

Auger & Header Parts Diagram

  • Title
1

Snapper 13395

SHAFT, AUGER

$

$

Currently unavailable

2

Snapper 13393

AUGER, 42" UNIT

$

$

Currently unavailable

3

Snapper 13405

GUARD, CHAIN & BEARING

$

$

Currently unavailable

4

Snapper 13396

FLANGETTE

$

$

Currently unavailable

5

Snapper 12981

BEARING, AUGER SHAFT

$

$

Currently unavailable

?6

Snapper 7013398

SPROCKET, AUGER CHAIN
(Superseded to 7013398YP)

$119.99

$

Usually ships in 2-12 days

0

7

Snapper 13397

PLATE, AUGER MOUNTING

$

$

Currently unavailable

8

Snapper 13400

CHAIN, AUGER DRIVE

$

$

Currently unavailable

9

Snapper 13402

KIT, CHAIN REPAIR

$

$

Currently unavailable

10

Snapper 13380

HEADER, 42" SNOW THROWER

$

$

Currently unavailable

11

Snapper 13534

COVER, CHANNEL

$

$

Currently unavailable

12

Snapper 13381

DECAL, WARNING (SPINNING BLADES)

$

$

Currently unavailable

13

Snapper 7019668

DECAL, SNAPPER
(Superseded to 7019668YP)

$6.49

$

Usually ships in 2-12 days

0

14

Snapper 13383

DECAL, CAUTION (STOP MACHINE)

$

$

Currently unavailable

15

Snapper 13471

BRACKET, CHANNEL COVER MOUNTING

$

$

Currently unavailable

16

Snapper 13407

PLATE, REINFORCEMENT

$

$

Currently unavailable

17

Snapper 14096

PLATE, KICKSTAND MOUNTING

$

$

Currently unavailable

18

Snapper 14097

KICKSTAND

$

$

Currently unavailable

19

Snapper 13481

SPRING, KICKSTAND

$

$

Currently unavailable

20

Snapper 7014092

SHOE, SKID

$

$

Not available

21

Snapper 7013382

BLADE, SCRAPER
(Superseded to 7013382YP)

$87.99

$

Usually ships in 2-12 days

0

22

Snapper 13408

PLUG, BUTTON

$

$

Currently unavailable

23

Snapper 13411

MOLDING, RUBBER

$

$

Currently unavailable

24

Snapper 7091573

BOLT, 1/4-20x5/8 CARRIAGE
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

25

Snapper 7091545

LOCKNUT, 1/4-20 FLANGE
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

26

Snapper 7090316

BOLT, 5/16-18 x 3/4 CARRIAGE
(Superseded to 703225)

Note: Was 90670

$3.99

$

In Stock, Qty 20+

0

27

Snapper 90709

LOCKNUT, 5/16-18 NYLON CENTER

$

$

Currently unavailable

28

Snapper 7091328

BOLT, 3/8cx1-1/4 HEX HEAD
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7091585

LOCKNUT, 3/8c HEX
(Superseded to 703347)

Note: Was 13529

$4.99

$

In Stock, only 2 left!

0

30

Snapper 13425

BOLT, 3/8cx1" CARRIAGE

$

$

Currently unavailable

31

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

Note: Was 13474

$3.49

$

In Stock, Qty 17

0

32

Snapper 7091302

NUT, 3/8c HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091318

BOLT, 5/16-18x3/4 HEX HEAD
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

34

Snapper 7090187

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7090204

BOLT, 5/16-18x5/8 HEX HEAD
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

36

Snapper 13406

SCREW, 1/4-14x1/2 SPECIAL

$

$

Currently unavailable

37

Snapper 13399

SPACER, AUGER BEARING

$

$

Currently unavailable

38

Snapper 7062038

BOLT, 1/2-13x1-1/4 HEX HEAD

Note: Was 90656

$

$

Currently unavailable

39

Snapper 7090254

LOCKWASHER, 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0
