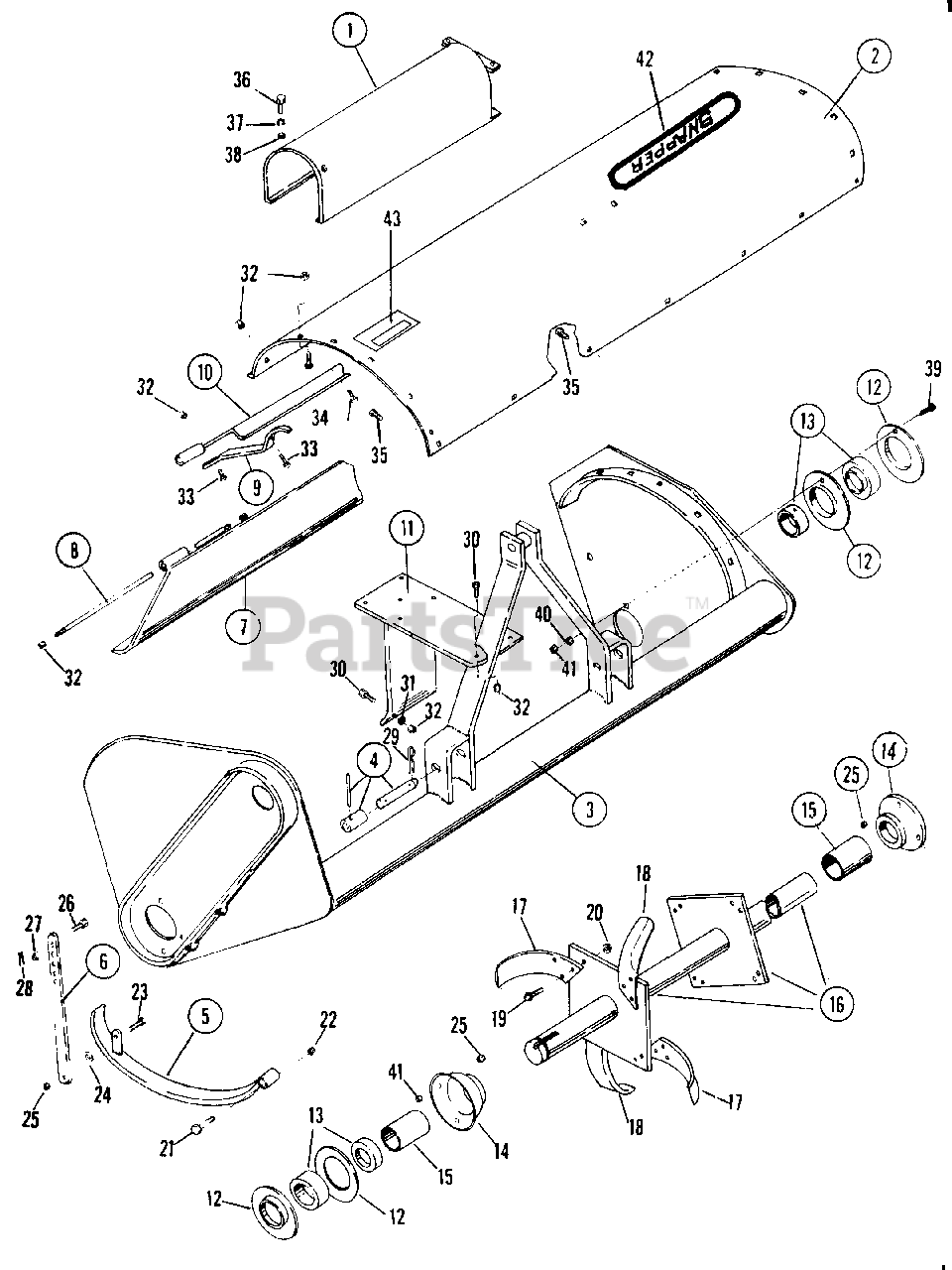

7060375 - Snapper 48" Rear PTO Tiller Attachment for MF Series Frame, Shroud, Tines Parts Diagram

48" Rear PTO Tiller Attachment for MF Series

Frame, Shroud, Tines Parts Diagram

  • Title

1

Snapper 7013973

SHIELD, TORQUE LIMITER TUNNEL

$

$

Currently unavailable

2

Snapper 7013966

SHROUD, TILLER

$

$

Currently unavailable

3

Snapper 7013964

FRAME

$

$

Currently unavailable

4

Snapper 7013181

PIN ASSEMBLY

$

$

Currently unavailable

5

Snapper 7013978

SKID

$

$

Currently unavailable

6

Snapper 7013979

STRAP, ADJUSTING

$

$

Currently unavailable

7

Snapper 7013157

LEVEL - BLADE

$

$

Currently unavailable

8

Snapper 7013158

ROD, HINGE

$

$

Currently unavailable

9

Snapper 7013980

STRAP, SUPPORT

$

$

Currently unavailable

10

Snapper 7013969

BRACKET, HINGE

$

$

Currently unavailable

11

Snapper 7013968

MOUNT, GEAR BOX

$

$

Currently unavailable

12

Snapper 7012999

FLANGETTE, 4-HOLE

$

$

Currently unavailable

13

Snapper 7013262

BEARING, SEALED WITH LOCK COLLAR 1-1/2"

$

$

Currently unavailable

14

Snapper 7013171

CAP, BEARING GUARD (DUST)

$

$

Currently unavailable

15

Snapper 7013170

TUBE, TINE SHAFT LOCK

$

$

Currently unavailable

16

Snapper 7013167

SHAFT, TINE

$

$

Currently unavailable

17

Snapper 7013168

TINE, SINGLE RIGHT HAND

$

$

Not available

18

Snapper 7013169

TINE, SINGLE LEFT HAND

$

$

Currently unavailable

19

Snapper 7013813

BOLT, HEX FLANGED HEAD

$

$

Currently unavailable

20

Snapper 7091619

LOCKNUT, HEX FLANGED
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

21

Snapper 7090778

BOLT, 5/8-11 x 2-3/4 HEX - GRADE 5

$

$

Currently unavailable

22

Snapper 7090537

NUT, 5/8-11 HEX
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

23

Snapper 7090330

BOLT, 1/2-13 x 1-1/2 HEX - GRADE 2
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7013954

WASHER, RUBBER

$

$

Currently unavailable

25

Snapper 7090706

LOCKNUT, 1/2-13 HEX

$

$

Currently unavailable

26

Snapper 7013956

BOLT, SPECIAL HEX (Make from 7092108 - machine & drill)

$

$

Currently unavailable

27

Snapper 7090705

WASHER, 1/2" PLAIN
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7012867

PIN, COTTER HAIR 1/8 x 1-7/8
(Superseded to 7012867YP)

$2.99

$

Usually ships in 2-12 days

0

29

Snapper 7091596

HAIR PIN, .0148 X 2.62 YZ
(Superseded to 7091596YP)

Note: Was 13256

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7091304

BOLT, 3/8-16 x 1" HEX - GRADE 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

31

Snapper 7090122

WASHER, 3/8 PLAIN
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091619

LOC K NUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

33

Snapper 7090645

BOLT, 3/8-16 x 1" CARRIAGE

$

$

Currently unavailable

34

Snapper 7091923

BOLT, 3/8-16 x 3/4 CARRIAGE
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7091541

SCREW, 5/16-18 x 3/4 SELF-TAPPING
(Superseded to 703228)

Note: Was 90765

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7090534

SCREW, 5/16-18 x 1/2 HEX HEAD
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7090187

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7090692

WASHER, 5/16 SAE PLAIN
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 7090769

BOLT, Carriage 1/2-13X1-3/4 GR5

$

$

Currently unavailable

40

Snapper 7091316

NUT, 1/2-13 HEX
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

41

Snapper 7013172

SPACER, BEARING CAP

$

$

Currently unavailable

42

Snapper 7019668

DECAL, SNAPPER
(Superseded to 7019668YP)

$6.49

$

Usually ships in 2-12 days

0

43

Snapper 7013953

DECAL, CAUTION

$

$

Currently unavailable
