7060373 - Snapper 36" Rear PTO Tiller Attachment for MF Series Upper Hitch, Adjuster Parts Diagram

36" Rear PTO Tiller Attachment for MF Series

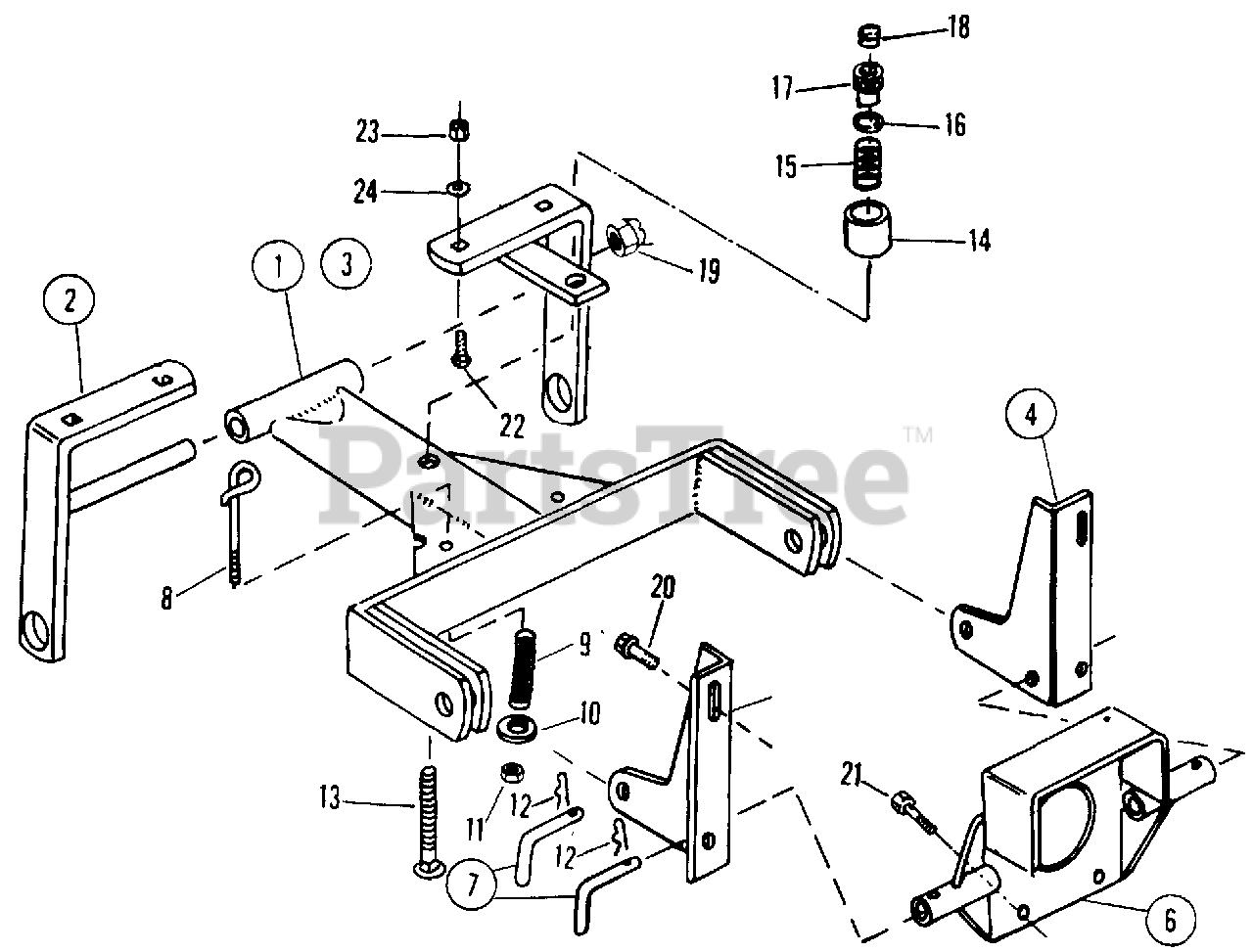

Upper Hitch, Adjuster Parts Diagram

  • Title
1

Snapper 7013192

LINK, UPPER HITCH

$

$

Currently unavailable

2

Snapper 7013193

BRACKET, RIGHT HAND

$

$

Currently unavailable

3

Snapper 7013194

BRACKET, LEFT HAND

$

$

Currently unavailable

4

Snapper 7013186

BRACKET, HITCH MOUNT - RIGHT HAND

$

$

Currently unavailable

5

Snapper 7013187

BRACKET, HITCH MOUNT - LEFT HAND

$

$

Currently unavailable

6

Snapper 7013190

MOUNT, GEAR BOX

$

$

Currently unavailable

7

Snapper 7013191

L-PIN, SHORT

$

$

Currently unavailable

8

Snapper 7013202

ROD, LOCK

$

$

Currently unavailable

9

Snapper 7013203

SPRING, LOCK ROD .406" ID x 3.75" Long

$

$

Currently unavailable

10

Snapper 7091098

WASHER, SPECIAL
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091705

LOCKNUT, 1/4 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7012867

PIN, 1/8 x 1-7/8 COTTER
(Superseded to 7012867YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7090763

BOLT, SPECIAL CARRIAGE

$

$

Currently unavailable

14

Snapper 7013196

TUBE, TENSION LIMIT

$

$

Currently unavailable

15

Snapper 7013197

SPRING, BELT TENSION .437" ID x 1.25" Long

$

$

Currently unavailable

16

Snapper 7090517

WASHER, SPECIAL WIDE RIM
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

17

Snapper 7013960

KNOB, BELT TENSION TORQUE 3/8-16 x 2.37" OD

$

$

Currently unavailable

18

Snapper 7013984

GROMMET .312" ID for .562" Hole (Atlantic India Rubber #2856)

$

$

Currently unavailable

19

Snapper 7090755

LOCKNUT, 5/8 HEX

$

$

Not available

20

Snapper 7027198

BOLT, HEX FLANGE 3/8 x 1
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

21

Snapper 7091328

BOLT, 3/8-16 x 1-1/4 HEX
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

22

Snapper 7090759

BOLT, 1/2C x 1-1/4 CARRIAGE

$

$

Currently unavailable

23

Snapper 7090706

NUT, 1/2-13 HEX LOCK

$

$

Currently unavailable

24

Snapper 7090705

WASHER, 1/2 PLAIN
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0
