7060373 - Snapper 36" Rear PTO Tiller Attachment for MF Series Gear Box, Drive Sheave Parts Diagram

36" Rear PTO Tiller Attachment for MF Series

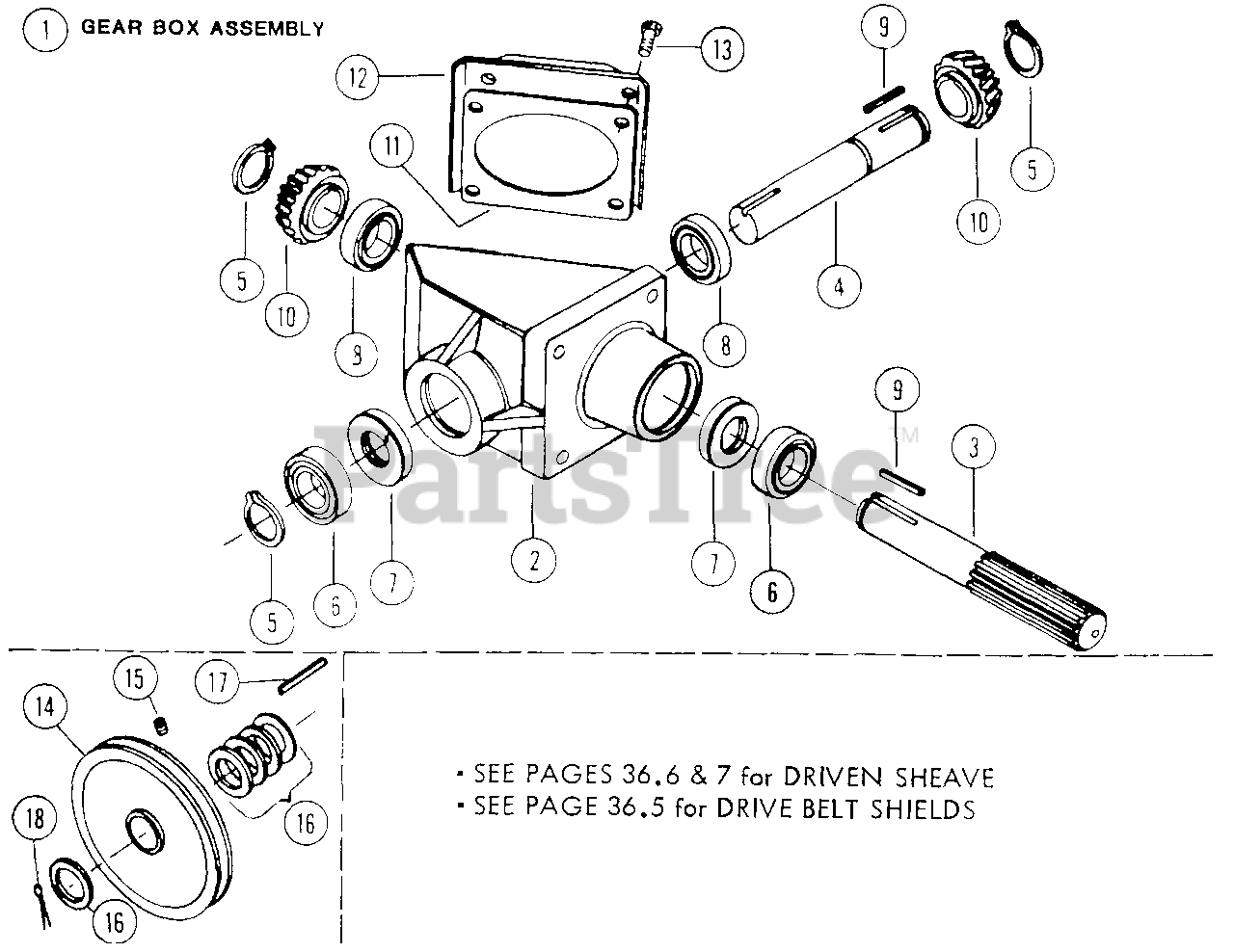

Gear Box, Drive Sheave Parts Diagram

  • Title
1

Snapper 7013198

GEAR BOX ASSEMBLY, 1:1 RATIO

Note: (INCLUDES ITEMS 2 THRU 13)

$

$

Currently unavailable

2

Snapper 7013780

HOUSING, GEAR BOX

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Snapper 7012899

RING, RETAINING

$2.99

$

In Stock, only 1 left!

0

6

Snapper 7013443

BEARING, BALL - OUTER
(Superseded to 7013443YP)

$61.99

$

In Stock, only 1 left!

0

7

Snapper 7013789

SEAL, OIL

$

$

Currently unavailable

8

Snapper 7013790

BEARING, BALL - INNER

$

$

Currently unavailable

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Snapper 7013784

GASKET, LID

$

$

Currently unavailable

$

$

Currently unavailable

13

Snapper 7013791

BOLT, LID RETAINING

$

$

Currently unavailable

14

Snapper 7013786

SHEAVE, DRIVE

$

$

Currently unavailable

15

Snapper 7090848

SETSCREW, 5/16-18 x 1/2 HEX SOCKET
(Superseded to 7090848SM)

Note: Was 13261

$10.99

$

In Stock, only 1 left!

0

16

Snapper 7013071

WASHER, SPECIAL .765" ID, 1.25" OD, 14 GA.

$

$

Currently unavailable

17

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

Note: Was 13249

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7091809

PIN, 1/8 x 1-1/2 COTTER
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

Usually ships in 2-12 days

0
