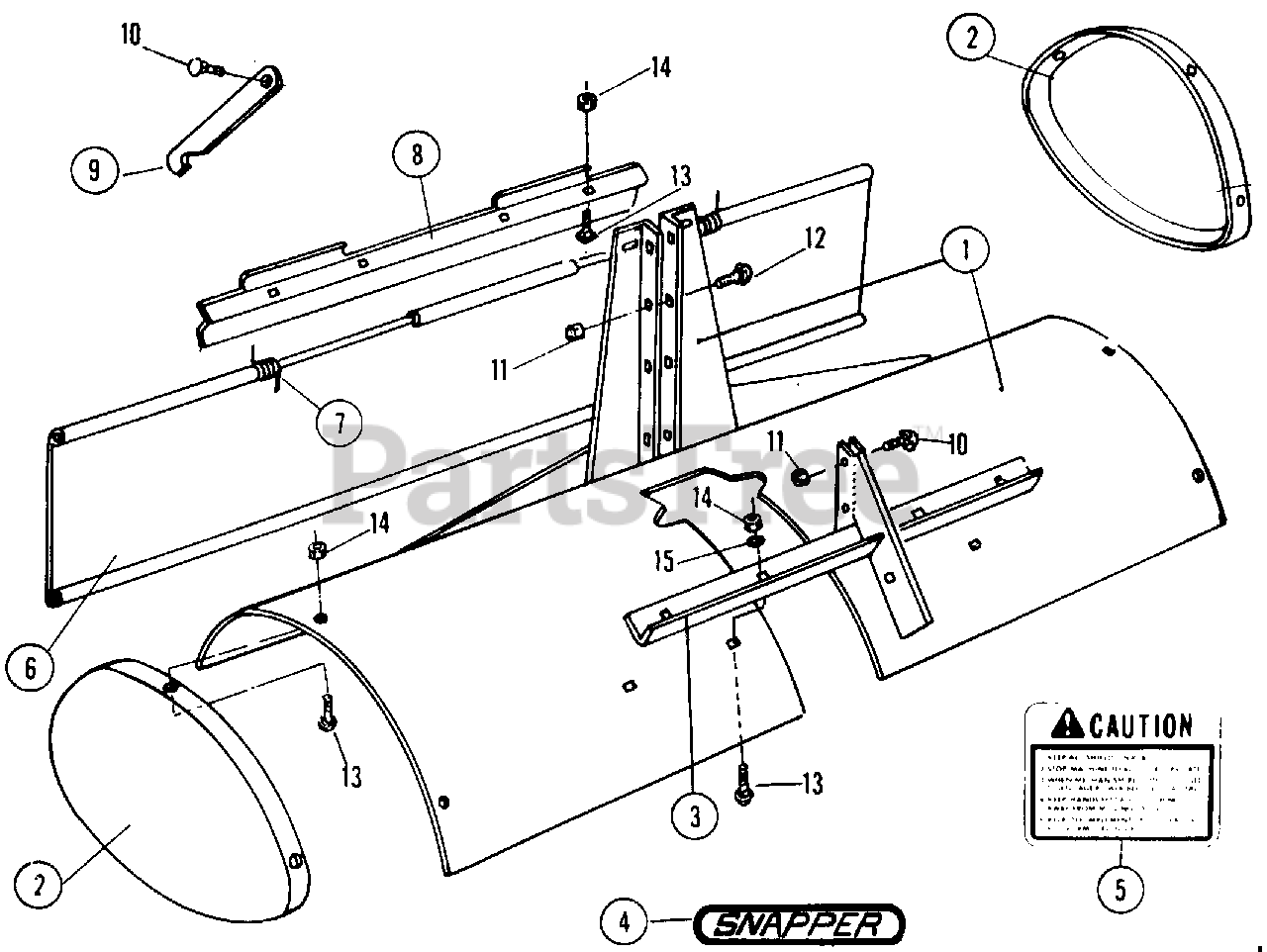

7060373 - Snapper 36" Rear PTO Tiller Attachment for MF Series Frame, Shroud Parts Diagram

36" Rear PTO Tiller Attachment for MF Series

Frame, Shroud Parts Diagram

  • Title
1

Snapper 7013799

SHROUD ASSEMBLY, 36" TILLER

$

$

Currently unavailable

2

Snapper 7013095

COVER, SHROUD END

Note: (SAME BOTH SIDES)

$

$

Currently unavailable

3

Snapper 7013798

BRACE, SHROUD

$

$

Currently unavailable

4

Snapper 7019668

DECAL, SNAPPER
(Superseded to 7019668YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7018443

DECAL, CAUTION

$

$

Currently unavailable

6

Snapper 7013199

LEVEL BLADE

$

$

Currently unavailable

7

Snapper 7013955

SPRING, TENSION

$

$

Currently unavailable

8

Snapper 7013094

HINGE PLATE

$

$

Currently unavailable

9

Snapper 7013801

STRAP, BLADE LOCKING

$

$

Currently unavailable

10

Snapper 7090496

BOLT, 1/4-20 x 1 CARRIAGE
(Superseded to 7090496YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7091530

BOLT, 1/4-20 x 3/4 CARRIAGE
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

13

Snapper 7090731

BOLT, 5/16-18 x 1/2 CARRIAGE
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

14

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

15

Snapper 7090692

WASHER, 5/16 PLAIN
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0
