7060373 - Snapper 36" Rear PTO Tiller Attachment for MF Series Belt Shield, Lift Link Parts Diagram

36" Rear PTO Tiller Attachment for MF Series

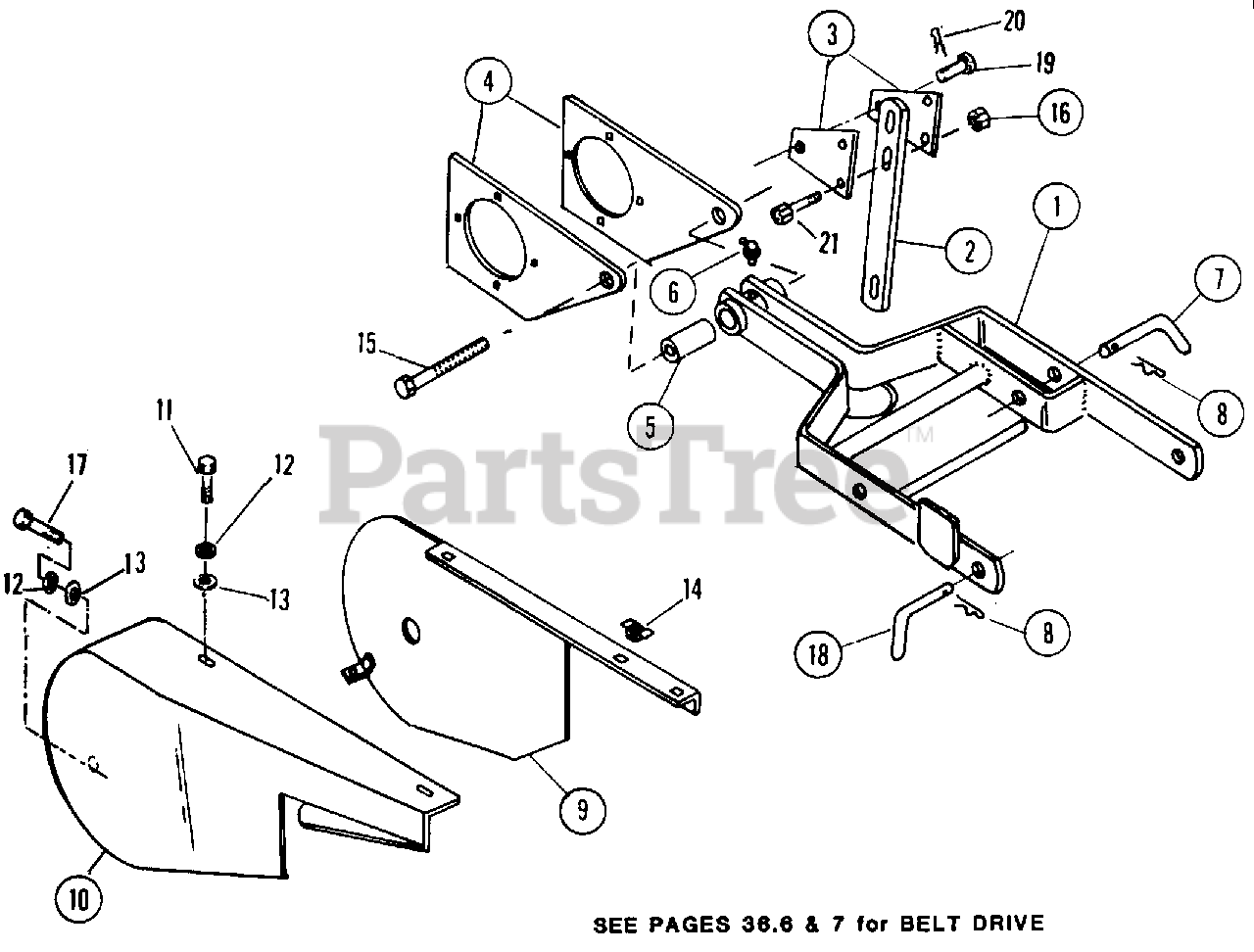

Belt Shield, Lift Link Parts Diagram

  • Title
1

Snapper 7013188

LINK, LOWER LIFT

$

$

Currently unavailable

2

Snapper 7013222

STRAP, BAR LIFT

$

$

Currently unavailable

3

Snapper 7013223

PLATE, LIFT STRAP

$

$

Currently unavailable

4

Snapper 7013092

PLATE, ATTACHING

$

$

Currently unavailable

5

Snapper 7013189

BEARING, TUBE

$

$

Currently unavailable

6

Snapper 7013066

FITTING, LUBE 1.187" Tall, 65°, for .4" Hole

$

$

Currently unavailable

7

Snapper 7013224

L-PIN, LONG

$

$

Currently unavailable

8

Snapper 7012867

PIN, COTTER HAIR 5/32 x l-13/16
(Superseded to 7012867YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7013200

SHIELD, BELT INNER

$

$

Currently unavailable

10

Snapper 7013201

SHIELD, BELT OUTER

$

$

Currently unavailable

11

Snapper 7091318

BOLT, 5/16 x 3/4 HEX HEAD
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

12

Snapper 7090187

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090692

WASHER, 5/16 PLAIN
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7016116

NUT, PUSH ON, 5/16-18 YZ
(Superseded to 7016116YP)

Note: Was 13254

$2.49

$

In Stock, Qty 10

0

15

Snapper 7062038

(NLA) BOLT,1/2C X1-1/4 GR5

Note: Was 90656

$

$

Currently unavailable

16

Snapper 7090975

LOCKNUT, 1/2 HEX
(Superseded to 703894)

Note: Was 90706

$3.49

$

In Stock, Qty 9

0

17

Snapper 7090534

BOLT, 5/16 x 1/2 HEX HEAD
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7013191

L-PIN, SHORT

$

$

Currently unavailable

19

Snapper 7013226

PIN, DRILLED

$

$

Currently unavailable

20

Snapper 7012714

PIN, Hair 1-3/16 x .156 dia.

$

$

Currently unavailable

21

Snapper 7091328

BOLT, 3/8 x 1-1/4 BOLT
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0
