7060334 - Snapper Muffler Kit 10, 11, 12hp Briggs & Stratton Briggs 10, 11 & 12 HP Mufflers Parts Diagram

Muffler Kit 10, 11, 12hp Briggs & Stratton

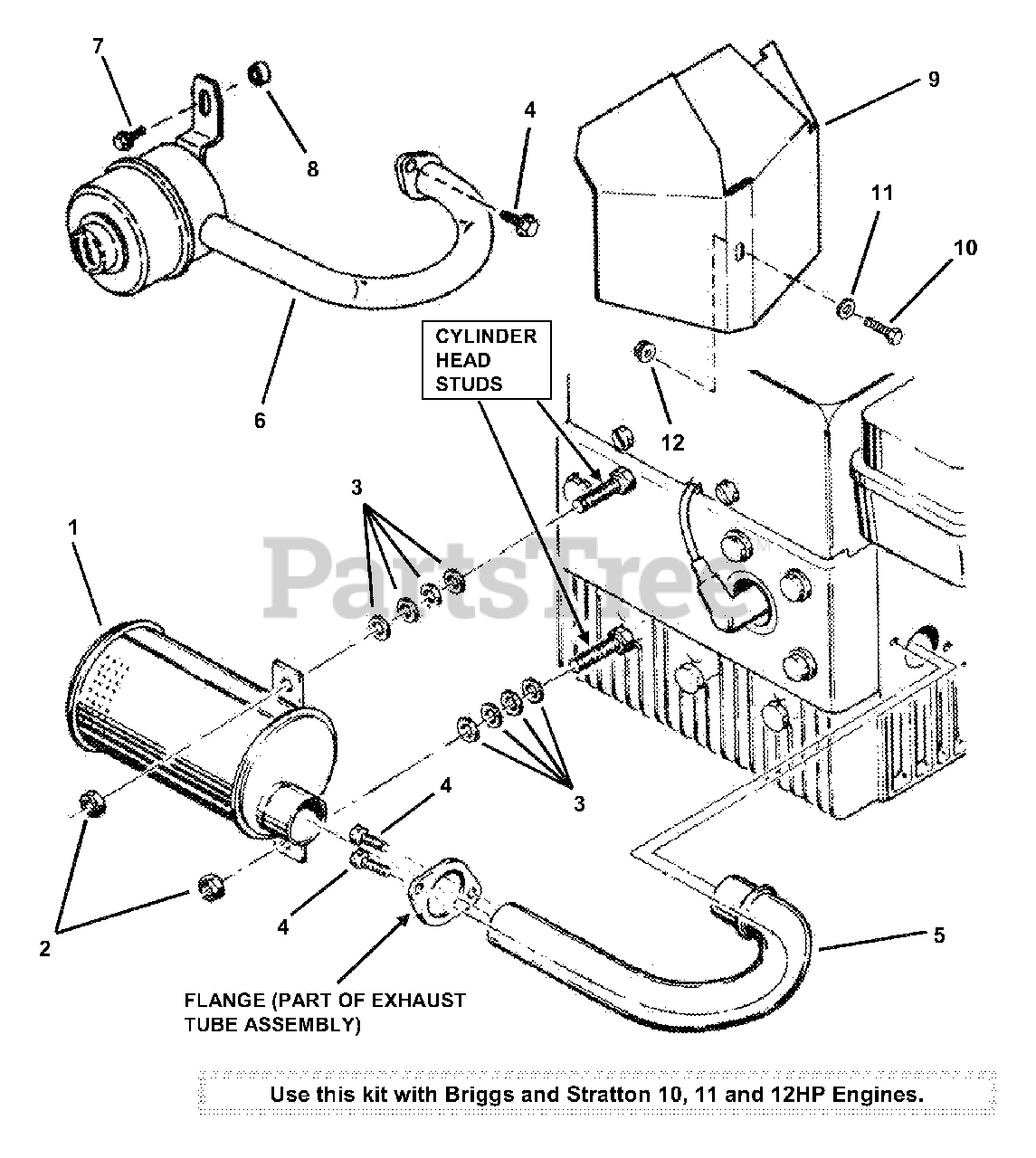

Briggs 10, 11 & 12 HP Mufflers Parts Diagram

  • Title
--

Snapper 7060334

KIT, Muffler

Note: (Includes items 1 thru 5)

$

$

Not available

1

Snapper 7018213

MUFFLER, 11HP Briggs

$

$

Not available

2

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

5

Snapper 7018214

TUBE, Exhaust

Note: (Includes Flange)

$

$

Not available

6

Snapper 7051996

MUFFLER, 10 & 12HP Briggs
(Superseded to 7051996YP)

Note: Was 16079 Not included in this kit.

$84.99

$

In Stock, only 2 left!

0

7

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073 (Not included in this kit.)

$4.49

$

In Stock, Qty 7

0

8

Snapper 7021866

SPACER (10HP Models)
(Superseded to 7021866YP)

Note: Not included in this kit.

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7035048

HEAT SHIELD, 11HP Briggs
(Superseded to 7035048YP)

$52.99

$

In Stock, only 1 left!

0

10

Snapper 7090528

SCREW, 1/4-28 x 1-1/2" Hex Head Cap

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7090743

NUT, 1/4-28 Hex Flange Lock

$

$

Not available
