7060293 - Snapper Snow Dozer Blade Kit for Tiller Snow Dozer Blade Kit #60293 Parts Diagram

Snow Dozer Blade Kit for Tiller

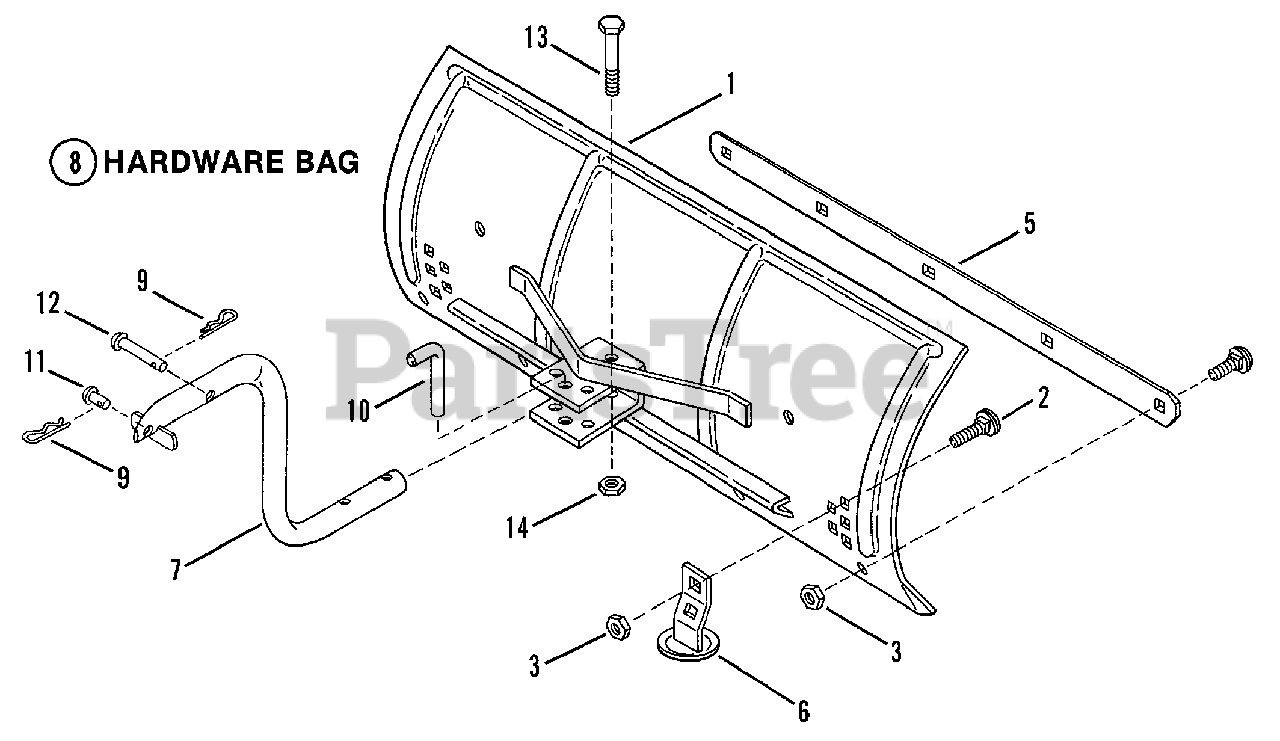

Snow Dozer Blade Kit #60293 Parts Diagram

  • Title

1

Snapper 7041616

BLADE STRUCTURE

Note: Was 57391

$

$

Currently unavailable

2

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, Gr. 2
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 1 left!

0

4

Snapper 7091547

BOLT, 3/8-16 x 3/4" Square Neck Carriage, Gr. 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7037733

SCRAPER
(Superseded to 7037733YP)

$87.99

$

Usually ships in 2-12 days

0

6

Snapper 7040445

SLIDE
(Superseded to 7040445YP)

$84.99

$

In Stock, only 2 left!

0

7

Snapper 7047726

(NLA) ASSEMBLY, Tongue

$

$

Currently unavailable

8

Snapper 7060322

HARDWARE BAG (not shown)

Note: (Incl. Items 9 thru 14)

$

$

Not available

9

Snapper 7011714

HAIRPIN
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7031002

PIN, 3/8 x 3-1/4" Hitch
(Superseded to 7031002YP)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7014779

PIN, 5/16 x 3/4" Short
(Superseded to 7014779YP)

Note: Was 12362

$6.49

$

Usually ships in 2-12 days

0

12

Snapper 7012363

PIN, 5/16 x 2-1/2" Long
(Superseded to 7012363YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7090017

SCREW, 1/2-20 x 2-3/4" Hex Head Cap
(Superseded to 7090017YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090266

NUT, 1/2-20 Hex Center Lock
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 7060293

(NLA) KIT, Tiller Snow Plow

$

$

Currently unavailable
