7060266 - Snapper Wishbone Harrow Kit Wishbone Harrow Kit #60266 Parts Diagram

Wishbone Harrow Kit

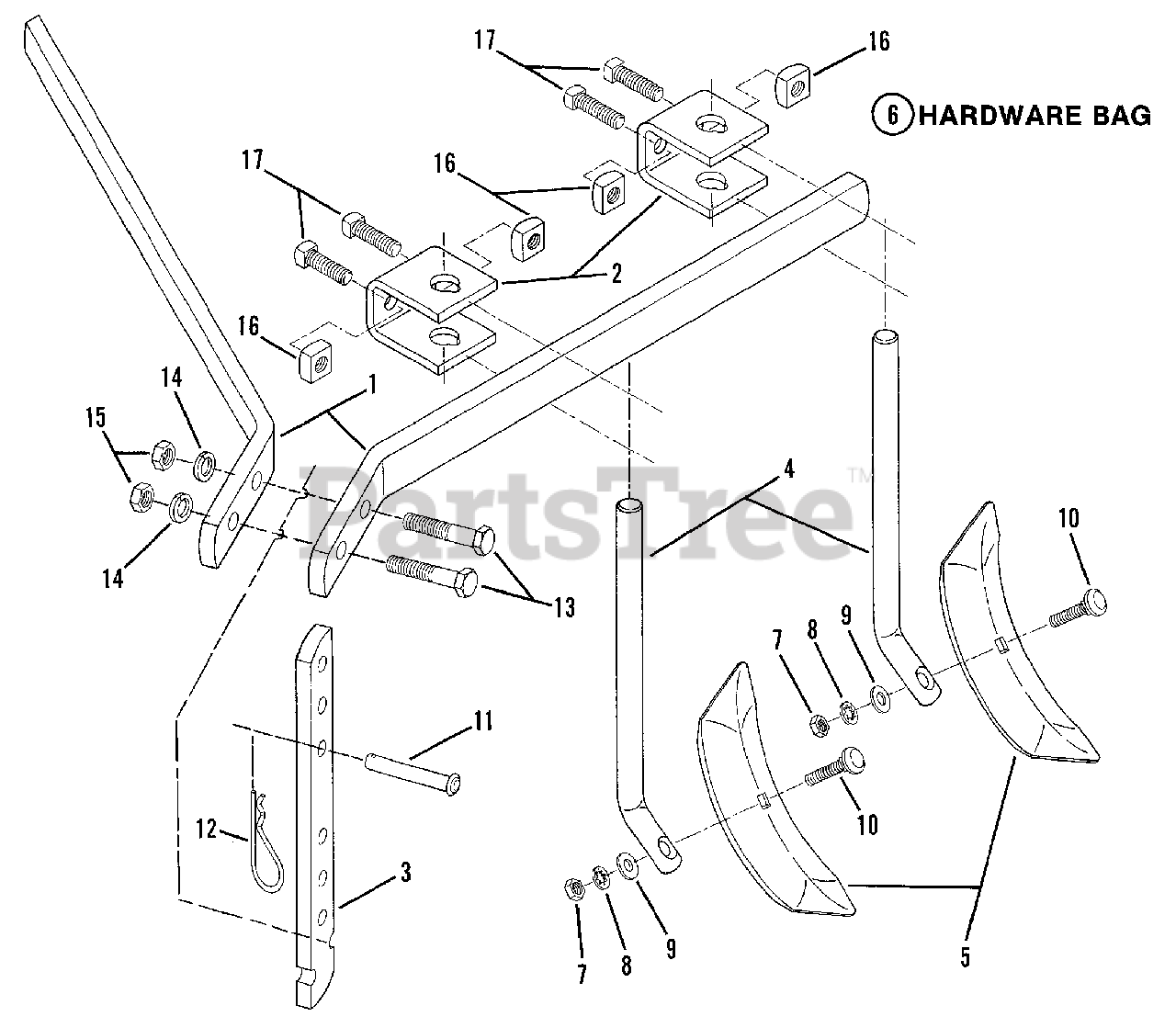

Wishbone Harrow Kit #60266 Parts Diagram

  • Title

1

Snapper 7031905

(NLA) TOOL BAR

$

$

Currently unavailable

2

Snapper 7031904

CLAMP
(Superseded to 7031904YP)

$27.99

$

Usually ships in 2-12 days

0

3

Snapper 7031906

(NLA) BEAM, Cultivator

$

$

Currently unavailable

4

Snapper 7032474

SHANK, Cultivator 11.25"x.75"
(Superseded to 7032474YP)

Note: Was 31907 15.25"

$48.99

$

Usually ships in 2-12 days

0

5

Snapper 7012244

SHOVEL, Double Point
(Superseded to 7012244YP)

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7090390

WASHER, 3/8 Internal-Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091945

BOLT, 3/8-16x1-1/2" Carriage

Note: Was 90497

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7014539

PIN, Clevis, 3/8x2-9/16"
(Superseded to 7014539YP)

Note: Was 12239

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7011714

PIN, Hair
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7090543

SCREW, 1/2-13x2" Hex Head Cap
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 7090254

WASHER, 1/2 Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

16

Snapper 7090326

NUT, 1/2-13 Square

$

$

Currently unavailable

17

Snapper 7062162

SCREW, 1/2-13x1-1/4" Square Head Set

Note: Was 90542

$

$

Currently unavailable
