7060264 - Snapper High Torque Drive Kit High Torque Drive Kit #60264 Parts Diagram

High Torque Drive Kit

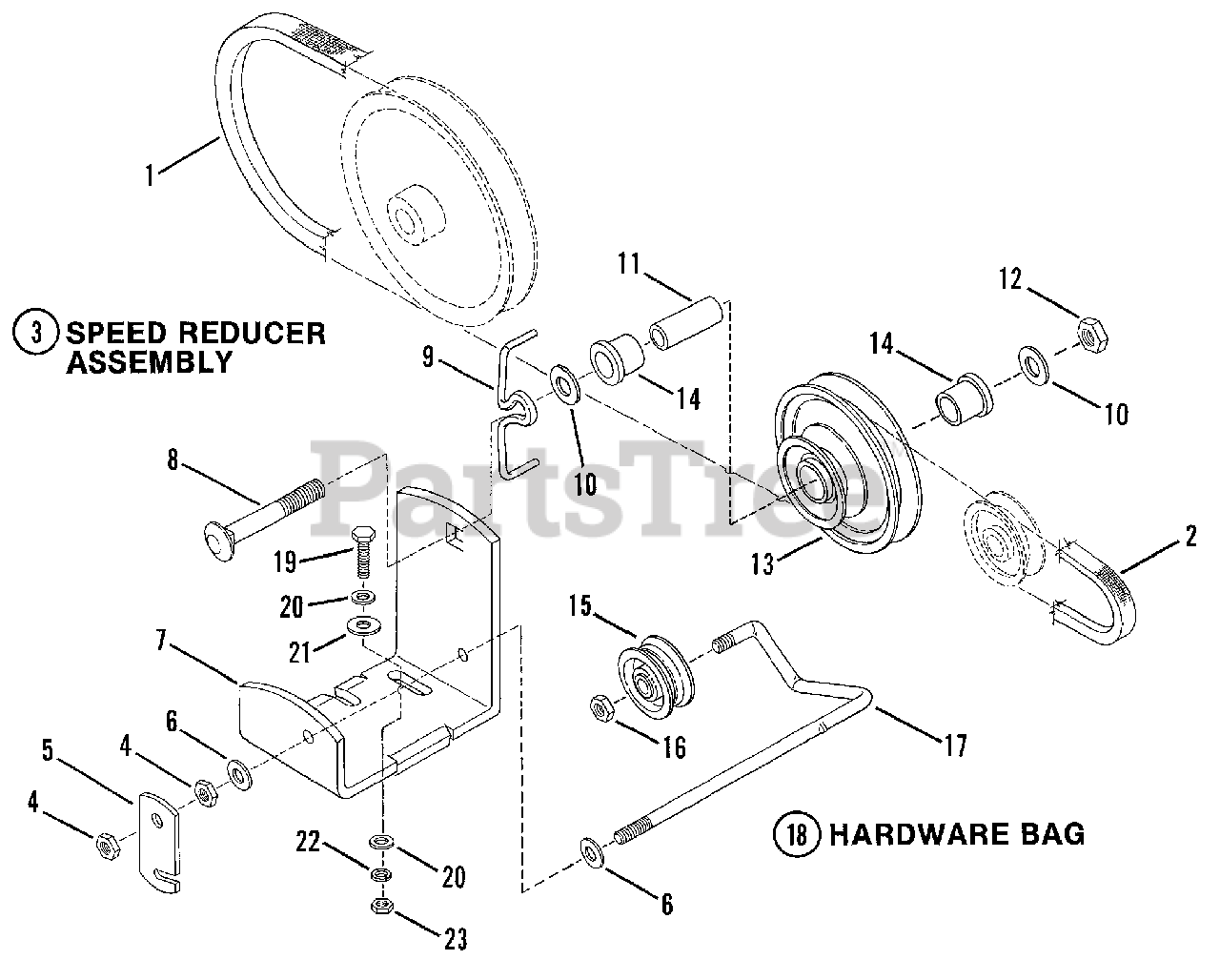

High Torque Drive Kit #60264 Parts Diagram

  • Title

1

Snapper 7012249

V-BELT (Reducer to Chain Drive 37")
(Superseded to 1674312SM)

$28.99

$

In Stock, Qty 9

0

2

Snapper 7012248

V-BELT (Engine to Reducer 26.75")

$

$

Not available

3

Snapper 7059526

(NLA) SPEED REDUCER ASSM'Y.

$

$

Currently unavailable

4

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

5

Snapper 7031168

LINK, Idler
(Superseded to 7031168YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7039585

(NLA) MOUNT, Speed Reduction

$

$

Currently unavailable

8

Snapper 7090570

BOLT, 1/2-13x2-3/4" Carriage

$

$

Not available

9

Snapper 7031909

GUIDE, Belt
(Superseded to 7031909YP)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 7091587

WASHER, 1/2 Flat
(Superseded to 704123)

Note: Was 90250

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7012254

RACE, Bearing

$

$

Not available

12

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

13

Snapper 7057094

SHEAVE ASSM'Y.
(Superseded to 7057094YP)

Note: (Includes item 14)

$

$

Not available

14

Snapper 7012252

BEARING
(Superseded to 7012252YP)

$

$

Not available

15

Snapper 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, only 3 left!

0

16

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

17

Snapper 7018182

ARM, Pulley
(Superseded to 7018182YP)

$5.99

$

Usually ships in 2-12 days

0

18

Snapper 7060274

(NLA) HARDWARE BAG

Note: (Includes items 19 thru 23)

$

$

Currently unavailable

19

Snapper 7090209

SCREW, 5/16-18x1" Hex Head Cap
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7090500

WASHER, 7/16 Flat

$2.99

$

In Stock, Qty 7

0

22

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0
