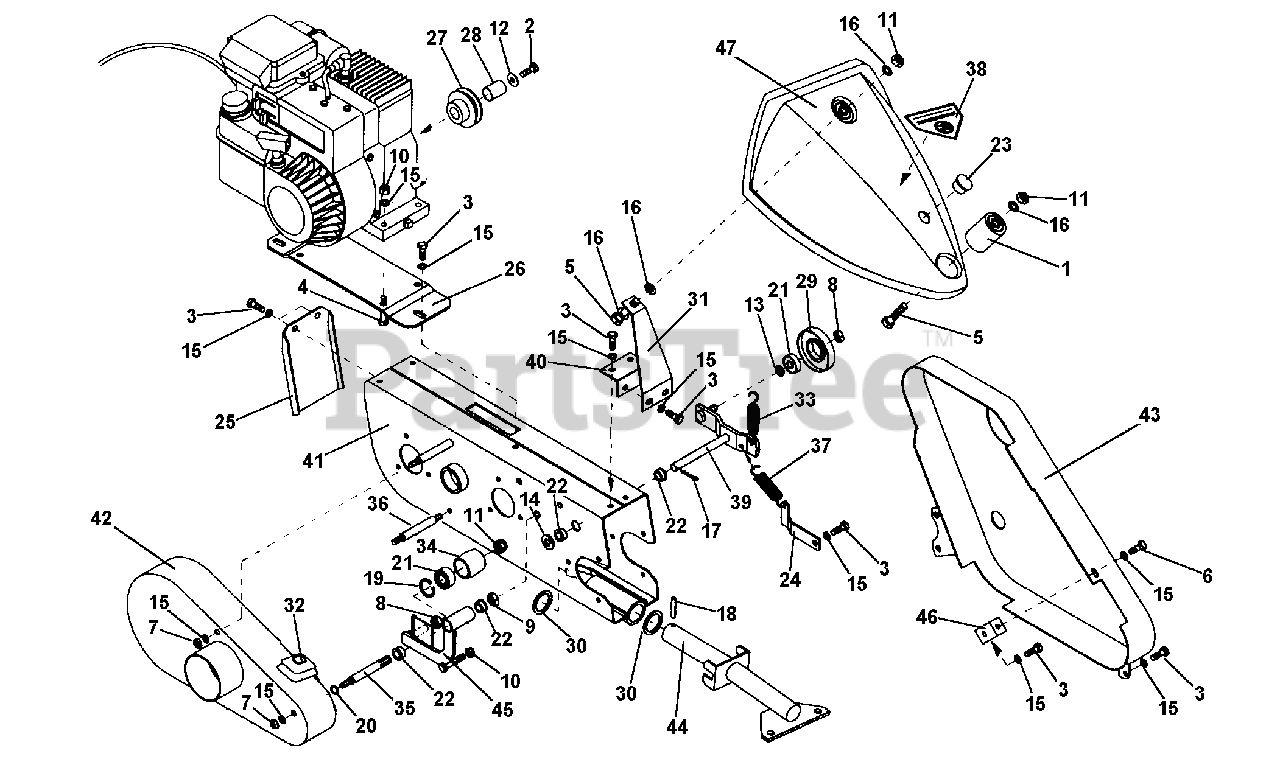

705 - BCS America Two-Wheeled Tractor Frame (SN: 1000 & Above) Parts Diagram

Two-Wheeled Tractor

Frame (SN: 1000 & Above) Parts Diagram

  • Title

1

BCS America 300.10102

SILENT BLOCK

$68.99

$

In Stock, only 1 left!

0

2

BCS America 311.00003

SCREW 5/16 X 7/8"

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 31112150

SCREW M8X20

$1.49

$

In Stock, only 4 left!

0

4

BCS America 311.12154

SCREW M8X40

$1.99

$

In Stock, only 4 left!

0

5

BCS America 311.12214

SCREW M10X45

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 311.21007

SCREW M10X35

$

$

Currently unavailable

7

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

8

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 3 left!

0

9

BCS America 31211120

NUT M12

$1.49

$

In Stock, Qty 5

0

10

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

11

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

12

BCS America 31411090

WASHER, FLAT

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 314.11105

WASHER, FLAT M10.5

$1.49

$

In Stock, only 1 left!

0

14

BCS America 31411130

WASHER, FLAT M13

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 314.21083

WASHER, M8.3

$1.49

$

In Stock, Qty 7

0

16

BCS America 314.23105

WASHER, LOCK M10.5

$1.49

$

In Stock, Qty 5

0

17

BCS America 341.10031

COTTER PIN

$

$

Currently unavailable

18

BCS America 342.11064

LOCKING PIN M6X40

$1.49

$

Usually ships in 5-8 days

0

19

BCS America 35111030

CIRCLIP, INTERNAL

$1.49

$

Usually ships in 5-8 days

0

20

BCS America 351.21012

CIRCLIP, EXTERNAL

$0.99

$

Usually ships in 5-8 days

0

21

BCS America 371.12099

BEARING M10X30X9

$22.99

$

Usually ships in 5-8 days

0

22

BCS America 511.46808

BUSHING

$29.34

$

Usually ships in 5-8 days

0

23

BCS America 551.43593

PLUG

$1.49

$

In Stock, only 3 left!

0

24

BCS America 561.46783

SPRING SUPPORT

$10.99

$

Usually ships in 5-8 days

0

25

BCS America 561.46809

BACK COVER

$

$

Currently unavailable

26

BCS America 561.4681

ENGINE BRACKET

$

$

Currently unavailable

27

BCS America 561.46813

ENGINE PULLEY

$75.99

$

Usually ships in 5-8 days

0

28

BCS America 561.46815

SPACER

$

$

Currently unavailable

29

BCS America 561.46844

IDLER PULLEY

$72.99

$

Usually ships in 5-8 days

0

30

BCS America 561.46849

SHIM

$9.99

$

Usually ships in 5-8 days

0

31

BCS America 563.46825

HOOD BRACKET

$57.99

$

Usually ships in 5-8 days

0

32

BCS America 580.46794

BOOT

$14.99

$

Usually ships in 5-8 days

0

33

BCS America 580.46798

SPRING

$11.99

$

Usually ships in 5-8 days

0

34

BCS America 580.46854

SPACER

$60.99

$

Usually ships in 5-8 days

0

35

BCS America 580.46855

IDLER SHAFT

$42.99

$

Usually ships in 5-8 days

0

36

BCS America 580.46894

SPACER SHAFT

$35.99

$

Usually ships in 5-8 days

0

37

BCS America 580.46897

SPRING

$25.99

$

Usually ships in 5-8 days

0

38

BCS America 580.46924

DECAL

$

$

Currently unavailable

39

BCS America 590.46784

IDLER ARM

$159.99

$

Usually ships in 5-8 days

0

40

BCS America 59046790

BRACE

$17.99

$

Usually ships in 5-8 days

0

41

BCS America 59046800

FRAME

$632.26

$

Usually ships in 5-8 days

0

42

BCS America 590.46811

BELT GUARD

$

$

Currently unavailable

43

BCS America 590.46812

BELT GUARD

$190.26

$

Usually ships in 5-8 days

0

44

BCS America 590.46845

CUTTERBAR SUPPORT

$155.99

$

Usually ships in 5-8 days

0

45

BCS America 590.46851

IDLER ARM

$87.98

$

Usually ships in 5-8 days

0

46

BCS America 590.46895

BRACKET, BELT GUARD

$30.80

$

Usually ships in 5-8 days

0

47

BCS America 59050640

HOOD

$303.99

$

Usually ships in 5-8 days

0
