705 - BCS America Two-Wheeled Tractor Cutter Bar (SN: 1000 & Above) Parts Diagram

Two-Wheeled Tractor

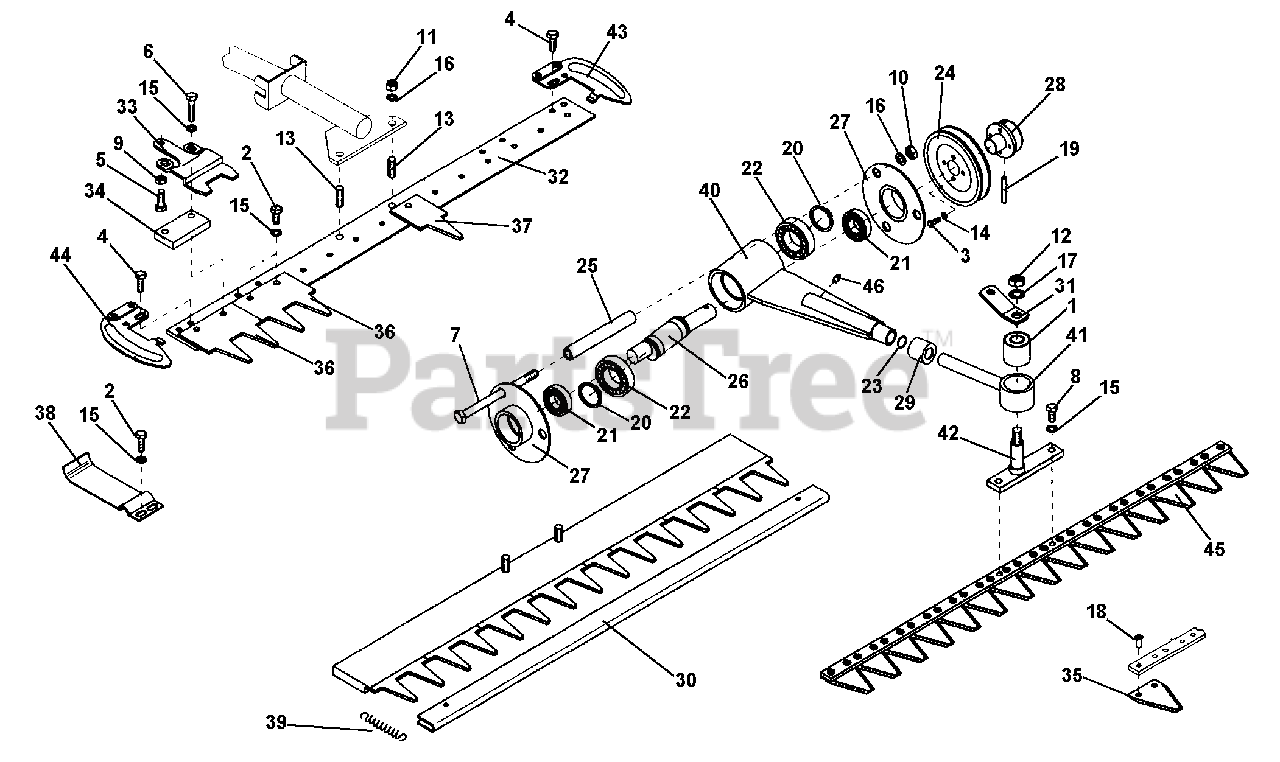

Cutter Bar (SN: 1000 & Above) Parts Diagram

  • Title

1

BCS America 30010160

SILENT BLOCK

$26.99

$

Usually ships in 5-8 days

0

2

BCS America 311.11151

SCREW M8X16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 31112050

SCREW M5X16

$0.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12148

SCREW M8X14

$1.49

$

In Stock, Qty 10

0

5

BCS America 31112150

SCREW M8X20

$1.49

$

In Stock, only 4 left!

0

6

BCS America 311.12153

SCREW M8X35

$1.49

$

In Stock, only 2 left!

0

7

BCS America 311.12228

SCREW M10X120

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 311.13093

SCREW M8X1X16

$1.49

$

In Stock, only 3 left!

0

9

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

10

BCS America 31211100

NUT, M10

$1.49

$

In Stock, only 3 left!

0

11

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

12

BCS America 312.41121

NUT, SELF LOCKING M12

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 313.11101

STUD M10X30

$8.99

$

Usually ships in 5-8 days

0

14

BCS America 314.11053

WASHER, FLAT M5.3

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 314.21083

WASHER M8.4

$1.49

$

In Stock, Qty 7

0

16

BCS America 314.21101

SUPER WASHER M10

$1.99

$

In Stock, only 3 left!

0

17

BCS America 31421130

SUPER WASHER M13

$1.99

$

In Stock, only 1 left!

0

18

BCS America 33112530

RIVET M5.3X14

$

$

Not available

19

BCS America 342.11068

LOCKING PIN M6X45

$1.99

$

Usually ships in 5-8 days

0

20

BCS America 35121030

CIRCLIP, EXTERNAL

$1.49

$

Usually ships in 5-8 days

0

21

BCS America 37112200

BEARING M20X47X14

$

$

Not available

22

BCS America 37112230

BEARING M30X55X13

$51.99

$

Usually ships in 5-8 days

0

23

BCS America 381.11564

"O" RING

$

$

Currently unavailable

24

BCS America 532.46829

PULLEY

$220.99

$

Usually ships in 5-8 days

0

25

BCS America 561.46797

SPACER

$35.99

$

Usually ships in 5-8 days

0

26

BCS America 561.46826

ARTICULATING SHAFT

$520.99

$

Usually ships in 5-8 days

0

27

BCS America 561.46827

BEARING HOLDER

$175.99

$

Usually ships in 5-8 days

0

28

BCS America 56146830

PULLEY HUB

$143.99

$

Usually ships in 5-8 days

0

29

BCS America 561.46835

SPACER

$134.99

$

Usually ships in 5-8 days

0

30

BCS America 561.46878

BLADE GUARD

$

$

Currently unavailable

31

BCS America 56146880

HOOD BRACKET

$39.99

$

Usually ships in 5-8 days

0

32

BCS America 563.48936

SLIDE FOR CUTTERBAR

$

$

Currently unavailable

33

BCS America 56351400

BLADE HOLDER

$34.99

$

In Stock, only 1 left!

0

34

BCS America 563.51402

BLADE GUIDE BLOCK

$

$

Currently unavailable

35

BCS America 563.59015

INDIVIDUAL BLADE

$4.99

$

Usually ships in 5-8 days

0

36

BCS America 565.50648

DOUBLE FINGER

$58.99

$

Usually ships in 5-8 days

0

37

BCS America 565.50649

SINGLE FINGER

$34.99

$

Usually ships in 5-8 days

0

38

BCS America 580.46677

SKID

$39.99

$

In Stock, only 1 left!

0

39

BCS America 580.49942

SPRING

$20.99

$

Usually ships in 5-8 days

0

40

BCS America 590.46831

BAR CONTROL

$732.99

$

Usually ships in 5-8 days

0

41

BCS America 590.46837

ARM, BAR CONTROL

$140.74

$

Usually ships in 5-8 days

0

42

BCS America 590.46875

BLADE PIN

$145.54

$

Usually ships in 5-8 days

0

43

BCS America 590.48931

R.H. END GUARD

$

$

Currently unavailable

44

BCS America 590.48932

L.H. END GUARD

$

$

Currently unavailable

45

BCS America 59059030

BLADE ASSEMBLY

$119.99

$

Usually ships in 5-8 days

0

46

BCS America F0826016000

GREASE ZIRT

$

$

Not available
