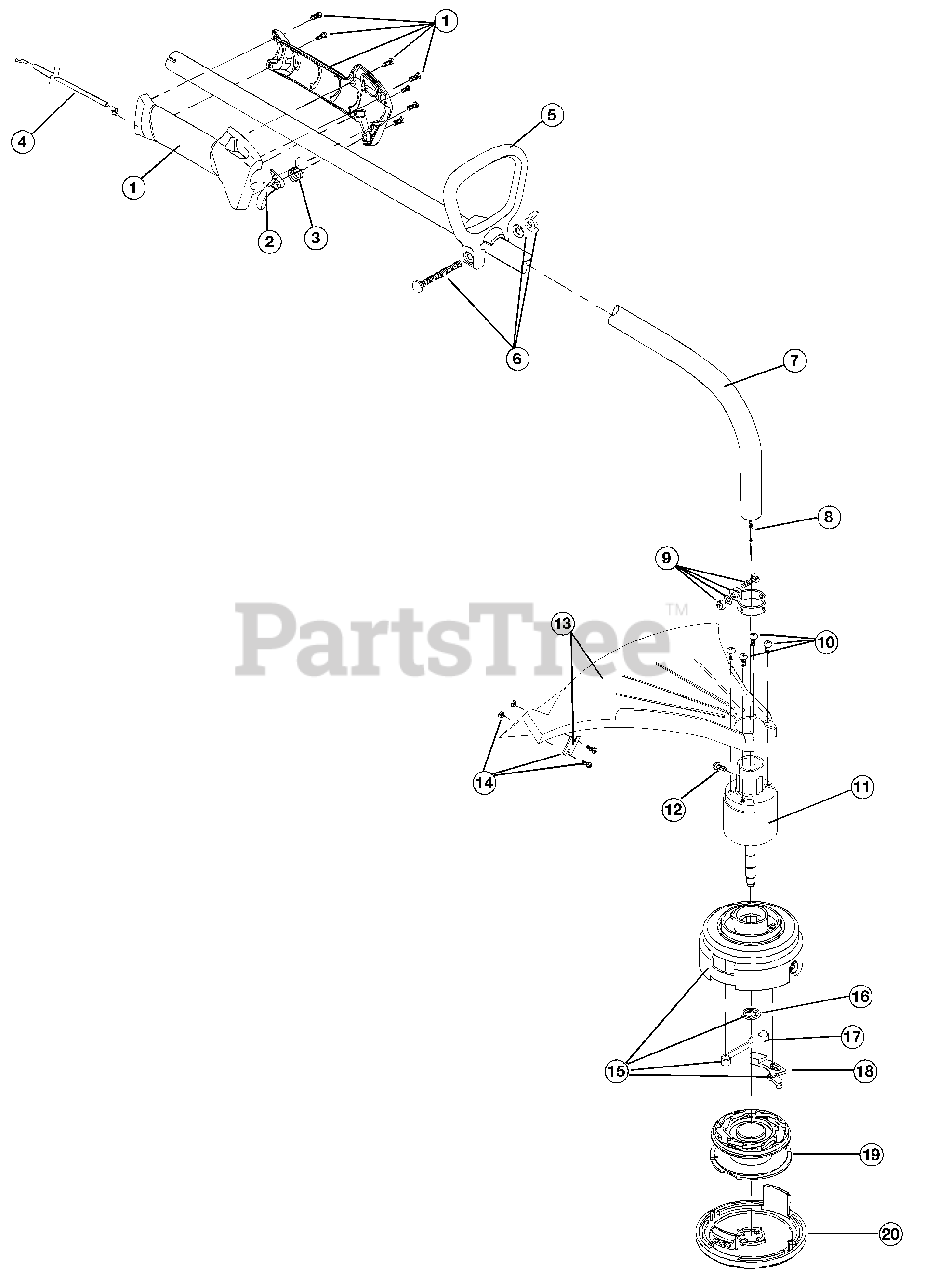

704r VP (41BD7V4G034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing & Trigger Assembly (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle Assembly (includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-04276

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$81.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly (includes 12)

$

$

Not available

10

MTD 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

11

MTD 791-182870

Bushing Housing Assembly w/shaft (For ALF Head)

$

$

Not available

11

MTD 791-153312

Housing

$

$

Not available

12

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

MTD 791-683274

Shield and Blade Assembly (includes 14)

$36.99

$

Usually ships in 3-6 days

0

14

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

15

MTD 791-182841

Outer Spool w/ Retainer (includes 16-18)

$

$

Not available

16

MTD 791-181560

Retainer
(Superseded to 753-04348)

$6.99

$

In Stock, only 2 left!

0

17

MTD 791-182842

Pawl Spring

$

$

Not available

18

MTD 791-182843

Ratchet Pawl

$

$

Not available

19

MTD 791-182844

Inner Reel

$

$

Not available

20

MTD 791-182845

Spool Cover

$

$

Not available

MTD 791-182840

Automatic Line Feed Assembly (includes 15-20)

Note: Optional Accessory; Item not shown

$

$

Not available

MTD 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Optional Accessory; Item not shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-00052

Reel and Line Assembly

Note: Optional Accessory; Item not shown

$

$

Not available

MTD 791-610375

Line .080 inch Replacement

Note: Optional Accessory; Item not shown

$

$

Not available
