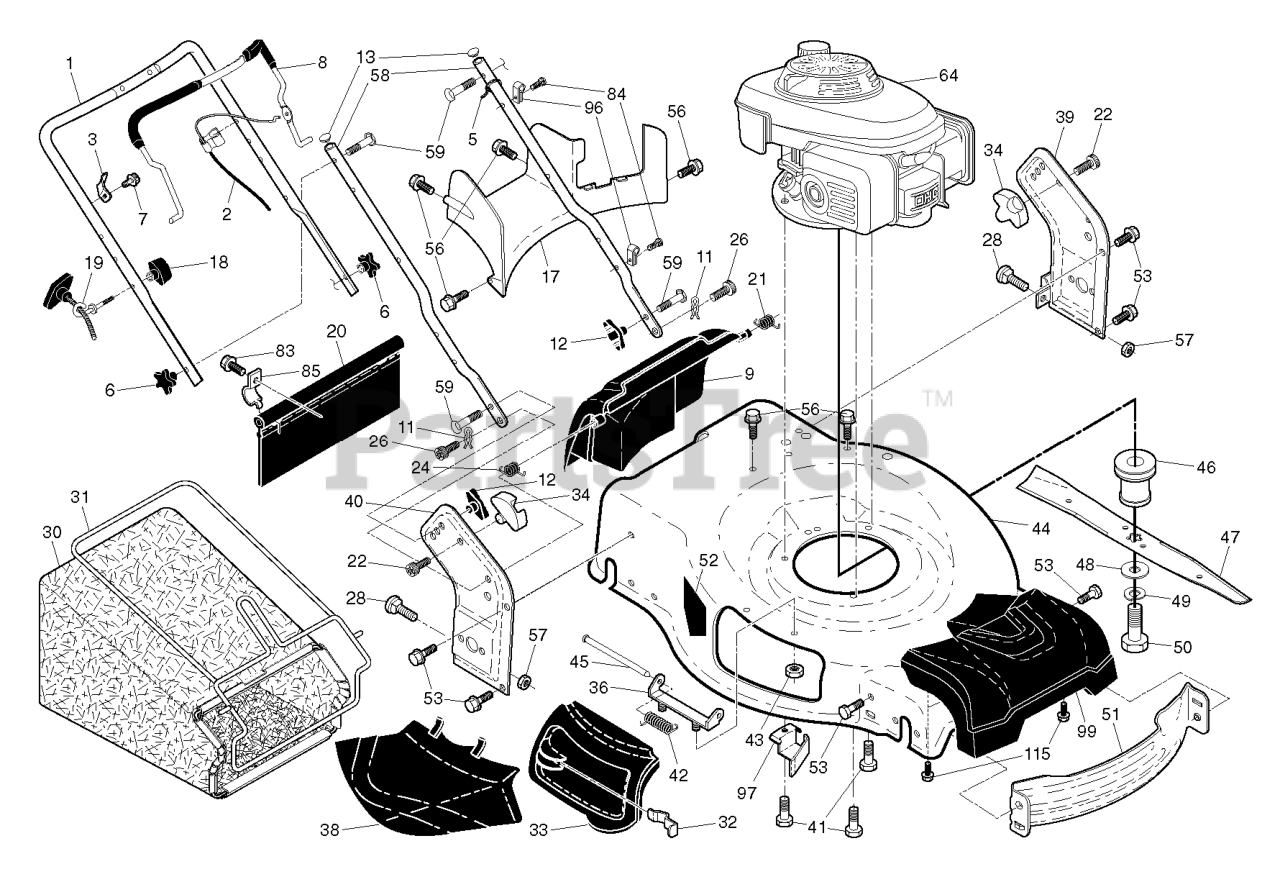

7022 R - Husqvarna 22" Walk-Behind Mower (Original) ENGINE Parts Diagram

22" Walk-Behind Mower

ENGINE Parts Diagram

  • Title

64

000000000

Note: HONDA GCV160-LAOS3B FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

44

Husqvarna 532446261

HOUSING.22+.RWD.HUSQ.ORANGE

Note: For 96143010601

$218.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

$

$

Not available

97

Husqvarna 581313802

BRACKET.DRIVE.COVER.RGD.

$11.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

Note: For 96143010601

$4.99

$

In Stock, Qty 8

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

47

Husqvarna 532420463

BLADE.22PLUS

$22.99

$

In Stock, only 2 left!

0

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RIGHT

$

$

Not available

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 7

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 8

0

24

Husqvarna 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, only 4 left!

0

44

Husqvarna 532432263

KIT.HSG.22+RGD.MC.WO.ORG.CESYM

Note: For 96143010600

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

7

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 13

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532419949

SPRING.LH.BLACK

$6.49

$

In Stock, Qty 9

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 580947315

GBAG.A361029ER.HUSQ.GRY/SIL
(Superseded to 580947302)

$87.99

$

Usually ships in 3-10 days

0

28

Husqvarna 596136401

Bolts

Note: For 96143010600

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532427497

CABLE.MZR.50.SNAP-IN

$14.99

$

In Stock, Qty 13

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

115

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 13

0

34

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$17.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

$66.99

$

In Stock, only 2 left!

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LEFT

$28.99

$

In Stock, only 2 left!

0

99

Husqvarna 585668702

COVER.ASM.FRONT.HUSQ.22+RGD

$28.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 4 left!

0

46

Husqvarna 581851501

ADAPTER.BLADE.25MM.3MPH

$17.99

$

In Stock, Qty 20+

0
