7022 F - Husqvarna 22" Walk-Behind Mower (Original) FRAME Parts Diagram

22" Walk-Behind Mower

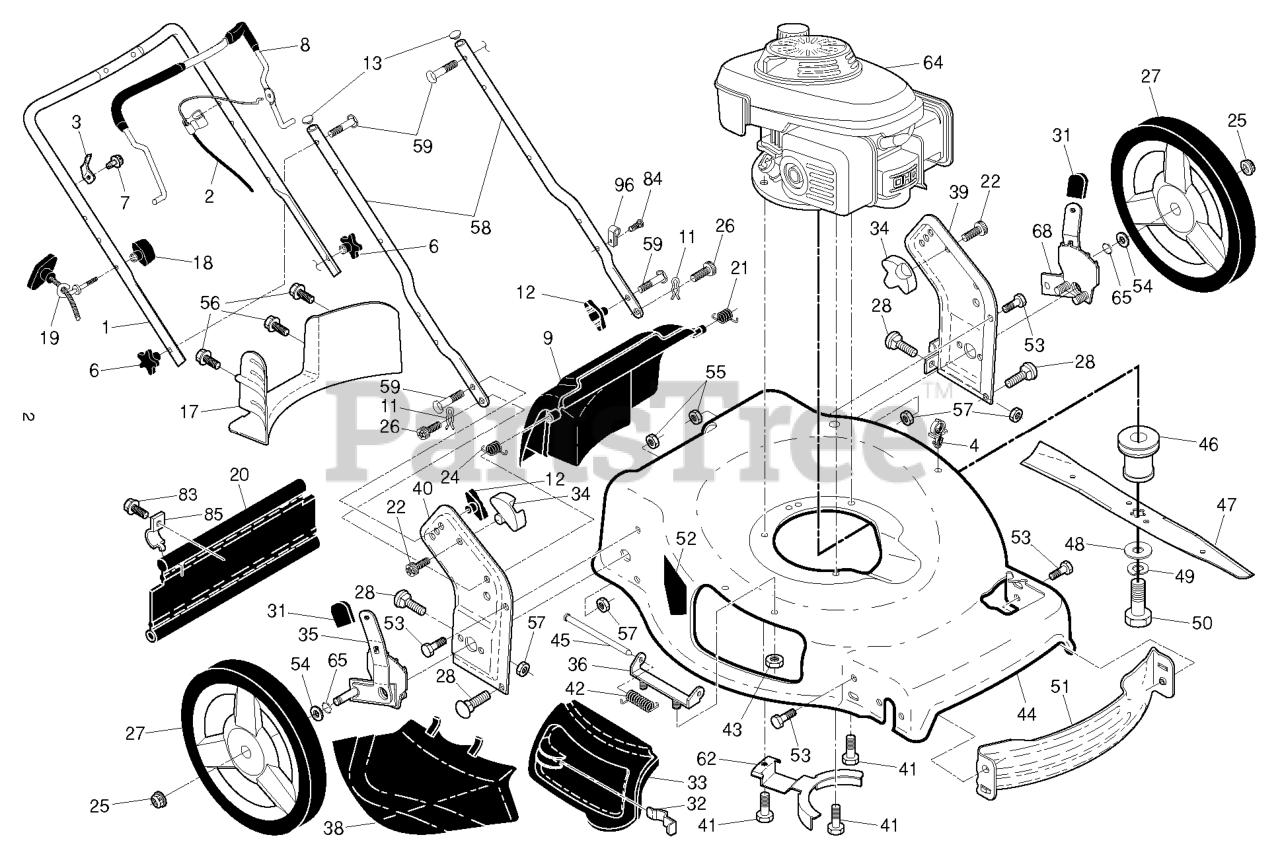

FRAME Parts Diagram

  • Title

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 9

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LH

$28.99

$

In Stock, only 2 left!

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 13

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

Usually ships in 3-10 days

0

27

Husqvarna 580334601

WHEEL.12 X 1.75 CFH3SPK.RAD3
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

64

000000000

Note: GCV160-LAOS3B

$

$

Not available

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 5

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

Note: For 96143010501

$4.99

$

In Stock, Qty 8

0

35

Husqvarna 532431140

ADJUSTER.ASM.9POS.HW.R/R

Note: RH

$26.99

$

In Stock, only 1 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

4

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 581690801

HOUSING.22+.FWD.MC.ZWO.ORANGE.

$

$

Not available

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RH

$

$

Not available

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

46

Husqvarna 581473301

ADAPTOR BLADE 25MM STAR

$17.99

$

In Stock, Qty 13

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

47

Husqvarna 532421825

BLADE.22+.PREMIUM/PREC.FGD/RGD

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532415350

CABLE.ASM.ZONE.CONTROL

$17.99

$

In Stock, Qty 17

0

1

Husqvarna 585854806

HANDLE.UP.3POS.BS.AW2.GREY

$

$

Not available

21

Husqvarna 532419949

SPRING.LH.BLACK

$6.49

$

In Stock, Qty 10

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

31

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

17

Husqvarna 532427307

BAFFLE.22PLUS.FGD.REAR.

$15.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

$66.99

$

In Stock, only 3 left!

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

$17.99

$

In Stock, only 2 left!

0

68

Husqvarna 532431141

ADJUSTER.ASM.9POS.HW.R/L

Note: LH

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

28

Husqvarna 596136401

Bolts

Note: For 96143010500

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 4 left!

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

In Stock, only 1 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available
