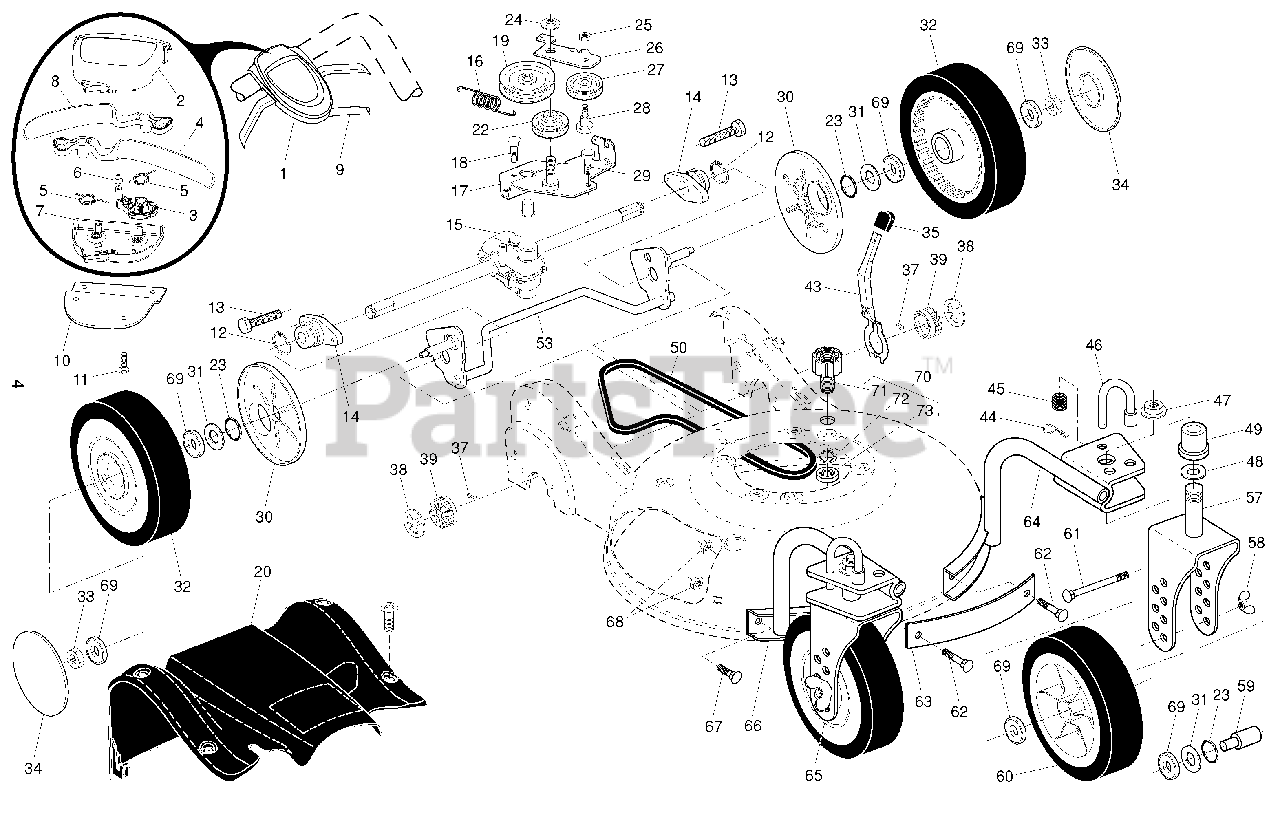

7021 RC (961430057-00) - Husqvarna 21" Walk-Behind Mower (2009-12) Drive Parts Diagram

21" Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Husqvarna 532431004

Drive Control Assembly

Note: (Includes Cable)

$

$

Currently unavailable

2

Husqvarna 532431638

Cover, Drive Control, Top

$

$

Not available

3

Husqvarna 532432286

Cam, Drive Control

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532432977

Lever, Drive Control, LH

$

$

Not available

6

Husqvarna 532432273

Bushing, Drive Control

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532433057

Cover, Drive Control, Bottom

$

$

Not available

8

Husqvarna 532433087

Lever, Drive Control, RH

$

$

Not available

9

Husqvarna 532431656

Cable, Drive Control

$68.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532432790

Bracket, Mounting, Drive Control

$

$

Not available

11

Husqvarna 532181698

Screw, Torx Head #8 x 5/8

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 812000012

Ring, Retaining
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532088652

Screw

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 532408027

Bearing / Axle Support

$

$

Not available

15

Husqvarna 532419211

Gear Case Assembly, Complete

$

$

Not available

16

Husqvarna 532406558

Spring, Return

$8.99

$

In Stock, Qty 7

0

17

Husqvarna 532408005

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

18

Husqvarna 532163409

Screw

$7.49

$

In Stock, Qty 6

0

19

Husqvarna 532194018

Pulley, Drive
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

20

Husqvarna 532432677

Drive Cover Assembly

Note: (Includes Mounting Screws and Retainers)

$60.99

$

In Stock, only 1 left!

0

22

Husqvarna 532193791

Pulley Assembly, V-Groove

$

$

Not available

23

Husqvarna 532188152

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532409149

Nut, Hex, Flangelock

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 873930500

Nut, Hex, Lock

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532416736

Idler Arm

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532166043

Pulley, Idler

$31.99

$

In Stock, only 1 left!

0

28

Husqvarna 532160829

Bolt, Hex Head, Shoulder

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 817060410

Screw 1/4-20 x 1/16

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532183457

Cover, Dust, Wheel

$

$

Not available

31

Husqvarna 532088348

Washer, Flat 3/8

$7.49

$

In Stock, Qty 6

0

32

Husqvarna 532192622

Wheel Assembly, Rear 9 x 2-1/4

$79.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532183442

Hubcap

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 532425242

Knob, Star

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532404845

Pawl

$5.99

$

In Stock, only 3 left!

0

38

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532403849

Pinion

$6.99

$

In Stock, Qty 8

0

43

Husqvarna 532190520

Lever, Selector, Wheel Height, Rear
(Superseded to 532188508)

$9.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532169675

Clip, Retainer

$7.49

$

In Stock, only 1 left!

0

45

Husqvarna 532185051

Spring

$5.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532185054

Rod, Lock

$10.99

$

In Stock, only 1 left!

0

47

Husqvarna 532409149

Nut, Hex, Flangelock

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532188906

Washer, Flat 1/2

$7.99

$

In Stock, only 2 left!

0

49

Husqvarna 532195996

Bushing

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532408031

Belt, Drive

$

$

Not available

53

Husqvarna 532416740

Rear Axle Assembly

$40.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532417063

Bracket, Caster Wheel, LH

$

$

Not available

58

Husqvarna 532187248

Wing Nut 5/16-18

$9.49

$

In Stock, only 1 left!

0

59

Husqvarna 532185111

Bushing

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532192234

Wheel Assembly, Front 9 x 2-1/4

$46.99

$

Usually ships in 3-10 days

0

61

Husqvarna 872270528

Bolt, Carriage 5/16-18 x 3-1/2

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532187474

Bolt, Carriage 5/16-18 x 7/8

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532188475

Strap, Front

$27.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532414070

Support Tube Assembly, LH

$125.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532417064

Bracket, Caster Wheel, RH

$

$

Not available

66

Husqvarna 532414069

Support Tube Assembly, RH

$72.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532187555

Bolt, Carriage 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532187263

Nut, Hex 5/16
(Superseded to 539990717)

$1.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532751068

Bearing, Ball (Wheel)

$8.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532421114

Water Washout Assembly

$24.99

$

In Stock, only 2 left!

0

71

Husqvarna 532419735

Fitting, Hose, Water Washout
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

72

Husqvarna 532415585

Washer, Lock, Internal Tooth

$4.99

$

In Stock, only 2 left!

0

73

Husqvarna 532415586

Locknut, Hex, with O-Ring

$6.49

$

In Stock, only 4 left!
