7021 RB (961430067-00) - Husqvarna 21" Walk-Behind Mower (2010-02) DRIVE Parts Diagram

21" Walk-Behind Mower

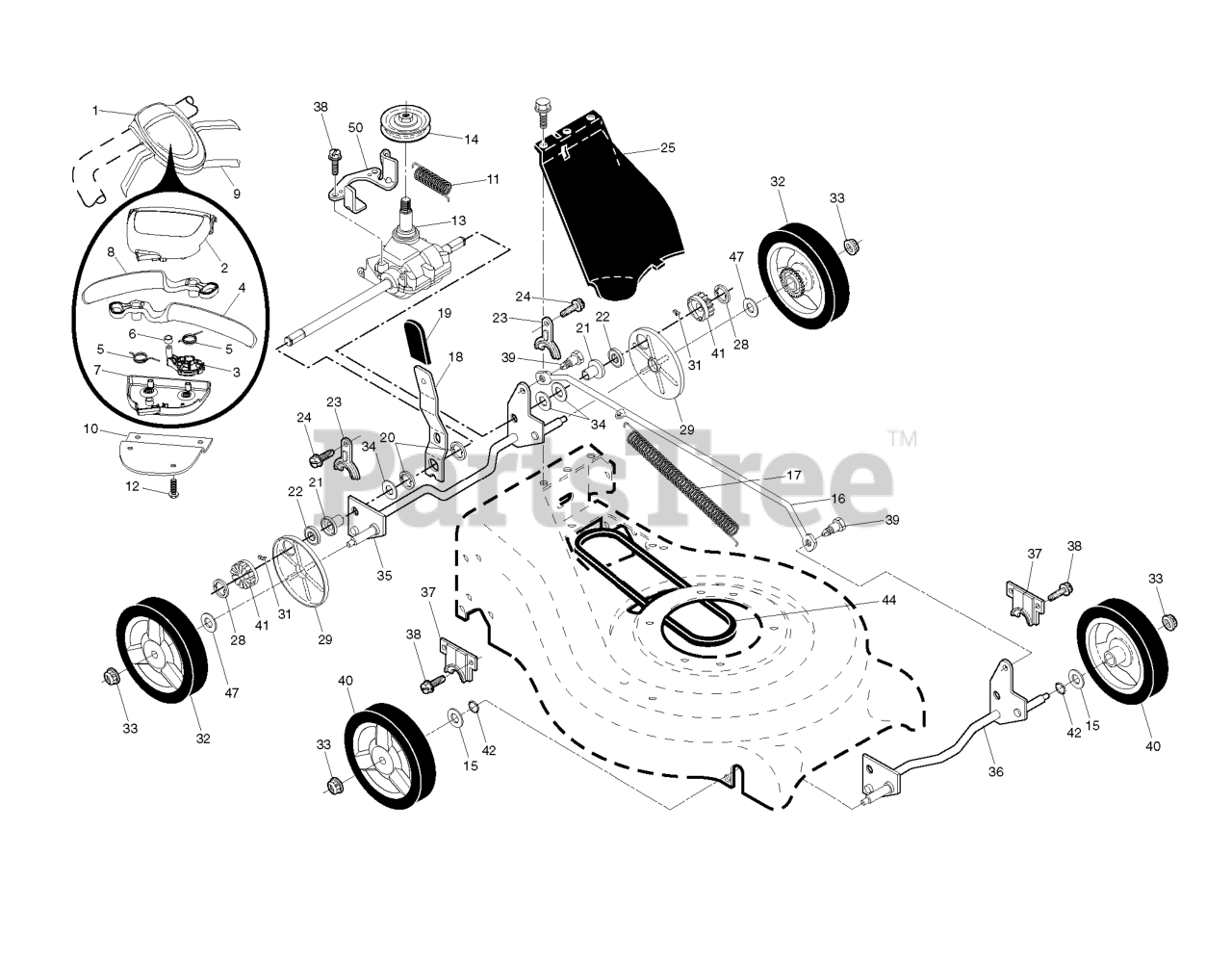

DRIVE Parts Diagram

  • Title

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 9

0

2

Husqvarna 532431638

RP CASE.CONT.ROL.TOP.HUSQV.

Note: TOP

$

$

Not available

6

Husqvarna 532432273

BUSHING.CONTROL.CAM

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532419213

TRANSMISSION.21.RWGD

$

$

Not available

7

Husqvarna 532433057

COVER.DR.CONTROL.LOWER.GRAY

Note: BOTTOM

$

$

Not available

42

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

22

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

49

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

14

Husqvarna 532193443

PULLEY.1.PIECE

$17.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532413105

WHEEL & TIRE ASSY, REAR
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

17

Husqvarna 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 2 left!

0

19

Husqvarna 532190069

KNOB.EXT.ERGO.BLACK

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532410922

SHAFT ASSY REAR
(Superseded to 532403102)

Note: REAR

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 532420381

SPRING, DRIVE CONTROL

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

18

Husqvarna 532418866

SPRING.SELECTOR.
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532433087

LEVER.CONTROL.LH.22+.CURVE.BLA

Note: LH

$

$

Not available

50

Husqvarna 532413104

BELT KEEPER
(Superseded to 532404832)

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532431001

RP.CONTROL.AW2.21RGD
(Superseded to 581075005)

$

$

Not available

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

21

Husqvarna 532412450

BEARING SUPPORT
(Superseded to 532404838)

$

$

Not available

24

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

36

Husqvarna 532410933

SHAFT ASSY, FRONT
(Superseded to 532407175)

Note: FRONT

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431655

CABLE.CONTROL.21RGD

$53.99

$

In Stock, only 2 left!

0

25

Husqvarna 532432672

COVER.DR.ASM.199775X418.CE
(Superseded to 532400783)

$12.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532432286

CAM.GEN2.DUAL.TRIGGER

$7.49

$

In Stock, only 1 left!

0

44

Husqvarna 532406580

BELT.RGD.VS

$30.99

$

In Stock, only 3 left!

0

8

Husqvarna 532432977

LEVER.CONTROL.RH.22+.CURV.BLAC

Note: RH

$

$

Not available

16

Husqvarna 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

12

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

34

Husqvarna 532851226

WASHER

$4.99

$

In Stock, only 1 left!

0
