7021 RB (961430055-00) - Husqvarna 21" Walk-Behind Mower (2009-11) Drive Parts Diagram

21" Walk-Behind Mower

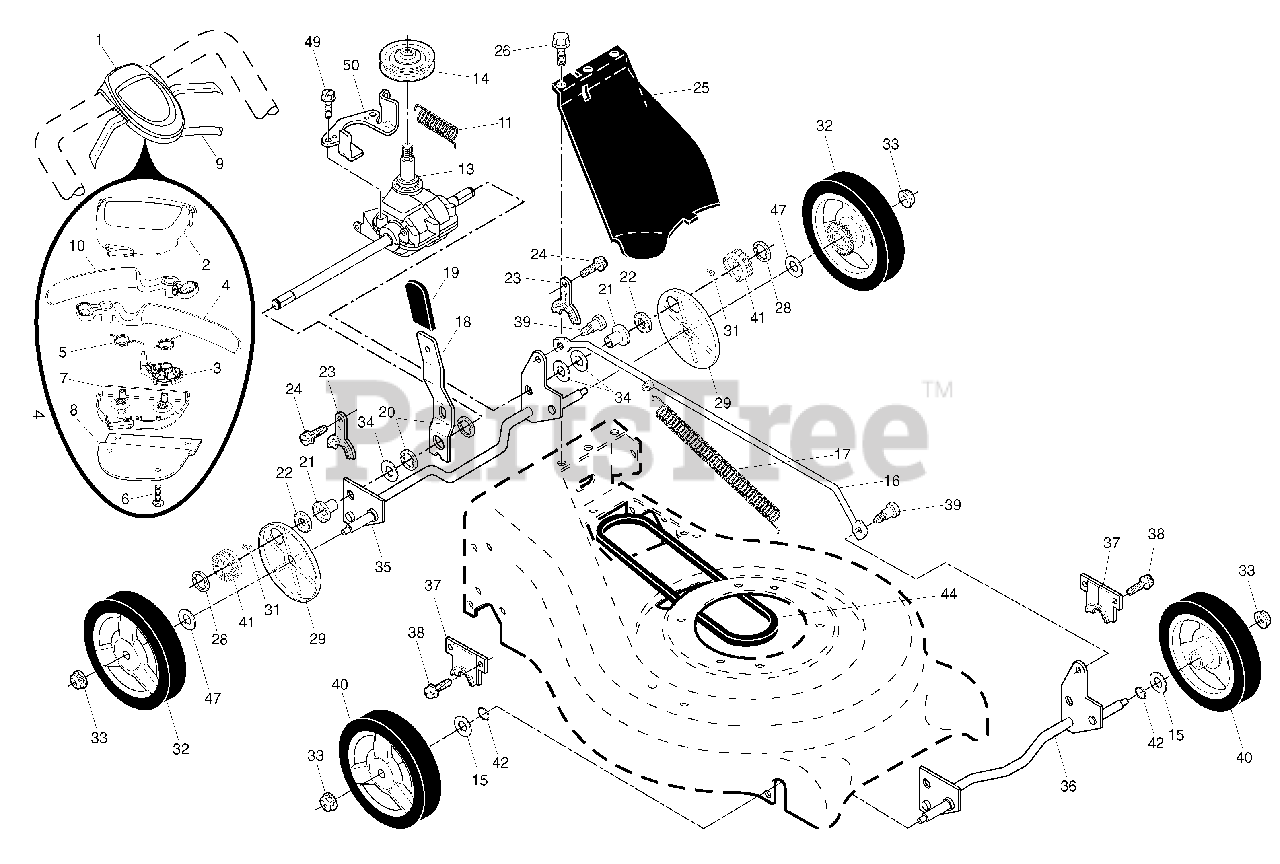

Drive Parts Diagram

  • Title

1

Husqvarna 532431001

Drive Control Assembly
(Superseded to 581075005)

Note: (Inlcludes Cable)

$

$

Not available

2

Husqvarna 532431638

Cover, Top, Drive Control

$

$

Not available

3

Husqvarna 532432286

Cam

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532433087

Lever, Drive Control, LH

$

$

Not available

5

Husqvarna 532420381

Spring, Drive Control

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw, Phillips Head #10 x 5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532433057

Cover, Bottom, Drive Control

$

$

Not available

8

Husqvarna 532432790

Mounting Bracket, Drive Control

$

$

Not available

9

Husqvarna 532431655

Cable, Drive Control

$53.99

$

In Stock, only 2 left!

0

10

Husqvarna 532432977

Lever, Drive Control, RH

$

$

Not available

11

Husqvarna 532406558

Spring

$8.99

$

In Stock, Qty 7

0

13

Husqvarna 532419213

Gear Case Assembly, Complete

$

$

Not available

14

Husqvarna 532193443

Pulley, Drive

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088348

Washer

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 532407147

Rod, Connecting

$

$

Not available

17

Husqvarna 532409616

Spring, Extension

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532418866

Spring Selector
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532190069

Knob, Selector Spring

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532412450

Bearing, Support
(Superseded to 532404838)

$

$

Not available

22

Husqvarna 532191039

Bearing, Ball
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

23

Husqvarna 532164555

Retainer, Drive Assembly, Stamped
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 817060410

Screw, Tapping, Hex Head 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532400783

Cover Drive

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532750634

Screw, Threaded, Rolled #10-25 x .50

$6.49

$

In Stock, Qty 5

0

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

31

Husqvarna 532404845

Pawl

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 532413105

Wheel, Driven, Rear 8 x 1-3/4
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851226

Washer, Flat

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 532410922

Shaft Assembly, Rear
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532410933

Shaft Assembly, Front
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

Retainer, Front Shaft

$

$

Not available

38

Husqvarna 532163409

Screw #12 x 5/8

$7.49

$

In Stock, Qty 6

0

39

Husqvarna 532407059

Bolt, Shoulder, Semi-Gimlett Point

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532410831

Wheel, Front 8 x 1-3/4
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

41

Husqvarna 532404835

Pinion

$6.99

$

In Stock, Qty 9

0

42

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532406580

V-Belt

$30.99

$

In Stock, only 3 left!

0

47

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532163409

Screw #12 x 5/8

$7.49

$

In Stock, Qty 6

0

50

Husqvarna 532413104

Bracket, Belt
(Superseded to 532404832)

$6.49

$

Usually ships in 3-10 days

0
