7021 R (961430063-01) - Husqvarna 21" Walk-Behind Mower (2011-01) FRAME & ENGINE Parts Diagram

21" Walk-Behind Mower

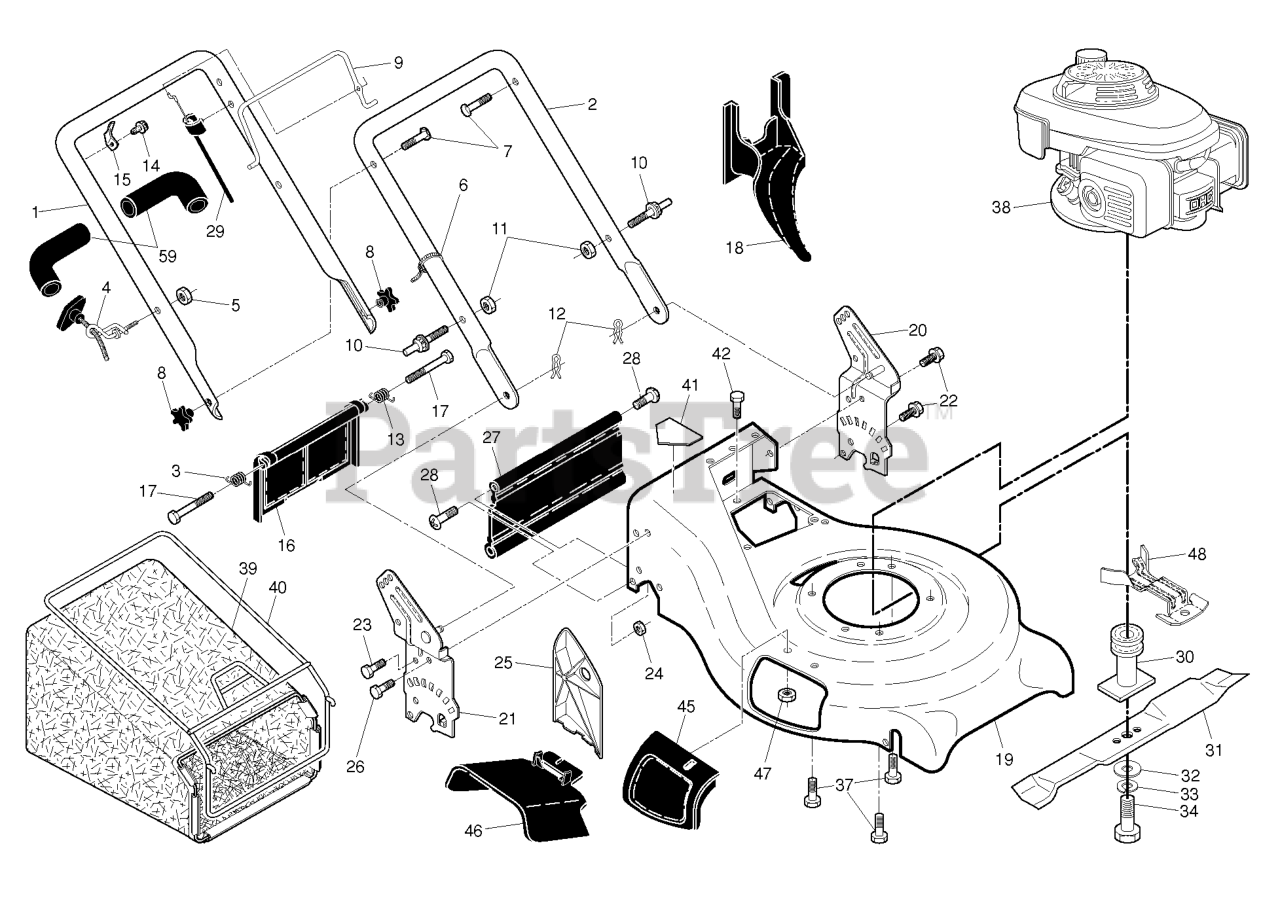

FRAME & ENGINE Parts Diagram

  • Title

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

BOLT

$

$

Not available

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

11

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532418239

BRACKET.HNDL.ASM.21.RWGD.LT.OR

Note: LH

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532408442

SKIRT.REAR.21.RWGD.BLACK(2 2M)

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532411951

FRAME.GBAG.21.RWGD.SC

$

$

Not available

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532405416

SPRING.RH.REAR.DOOR.21.RWGD

Note: RH

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532405415

SPRING.LH.REAR.DOOR.21.RWGD

Note: LH

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

2

Husqvarna 532197202

HANDLE.LOWER.21.GREY

$

$

Not available

39

Husqvarna 532425667

RP.GBAG.93230247T.SILV.CROWN.B
(Superseded to 581002903)

$47.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

21

Husqvarna 532418251

BRACKET.HNDL.ASM.21.RWGD.RT.OR

Note: RH

$20.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532425923

CABLE.MZR.47.75.SNAP-IN.PU.L

$18.99

$

In Stock, only 1 left!

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

$54.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532426812

BAIL.CONTROL.MZR.BS.ORANGE

$

$

Not available

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532408888

REAR DOOR ASSEMBLY
(Superseded to 532401815)

$18.99

$

Usually ships in 3-10 days

0

38

000000000

Note: HONDA GCV160-LAS3A FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

47

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

19

Husqvarna 532407535

HOUSING.21.RWD.ORANGE.WALK.

$

$

Not available

31

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

30

Husqvarna 532421176

ADAPTER.BLADE/PULLEY.25M

$28.99

$

In Stock, only 1 left!

0

22

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

28

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

42

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

48

Husqvarna 532429001

BRACKET.ENG/BELTKEEPER.BZP

$7.49

$

In Stock, only 3 left!

0
