7021 KF (961430091-00) - Husqvarna 21" Walk-Behind Mower (2011-12) DRIVE Parts Diagram

21" Walk-Behind Mower

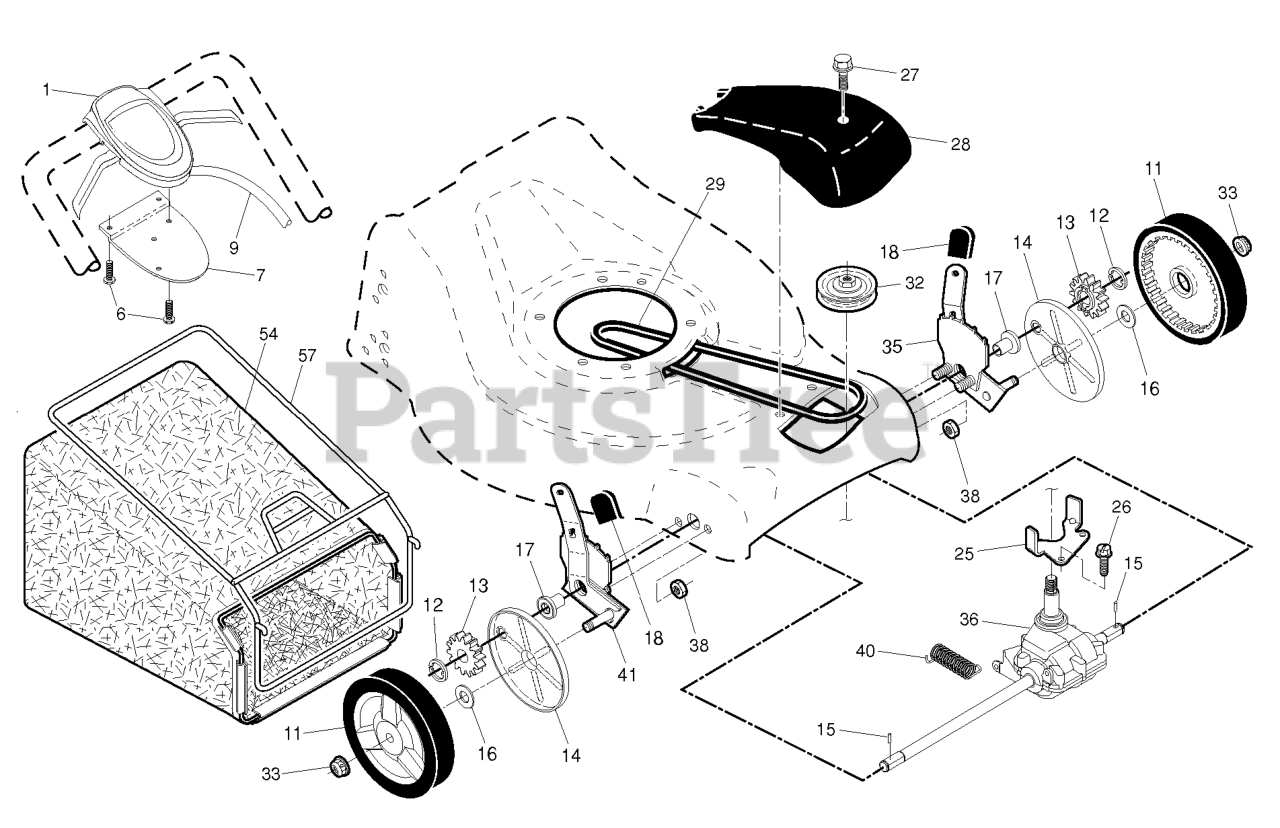

DRIVE Parts Diagram

  • Title
13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

1

Husqvarna 532430998

CONTROL.AW2.21FGD.
(Superseded to 581080913)

$58.99

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$120.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532432664

COVER.DRIVE.ASM.185579.CE.WALK

Note: Includes Mounting Screw & Pushnut

$24.99

$

In Stock, only 2 left!

0

7

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

$8.99

$

In Stock, Qty 7

0

$7.49

$

In Stock, Qty 6

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

35

Husqvarna 532438485

KIT ADJUSTER ASM.438151.

Note: LH

$44.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532438486

KIT ADJUSTER ASM.438148

Note: RH

$

$

Not available

9

Husqvarna 532431651

RP CABLE.CONTROL.21FGD.GEN2
(Superseded to 581080913)

$58.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532425732

RB GBAG.33230247T.SIL.HUSQ.BLU
(Superseded to 580953406)

$62.99

$

In Stock, only 1 left!

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 532421836

BEARING.ASM.
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

57

Husqvarna 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532194149

BELT.DRIVE.FG

$24.99

$

In Stock, only 1 left!

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 5

0
