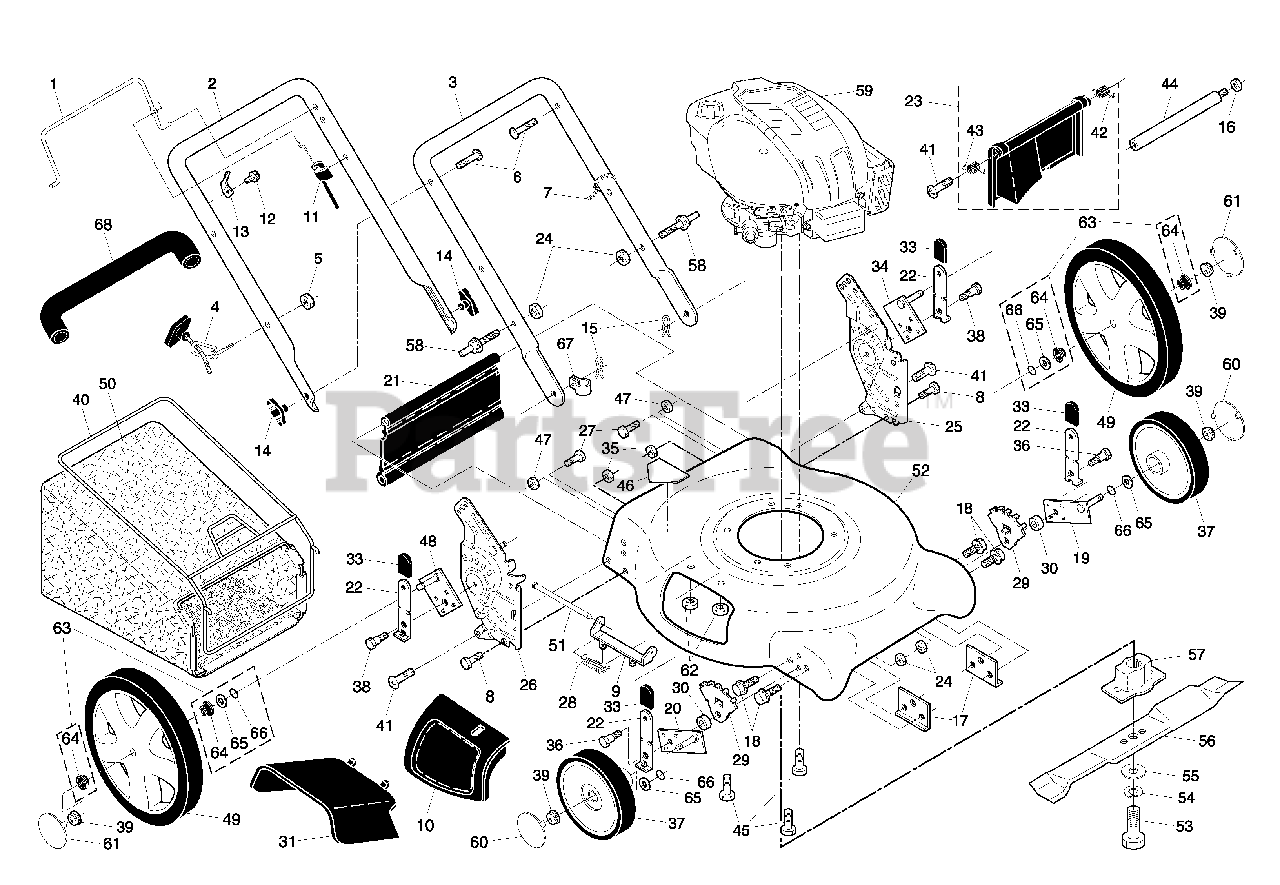

7021 CP (961330002-00) - Husqvarna 21" Walk-Behind Mower (2005-01) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532197203

Control Bar
(Superseded to 532194176)

$

$

Not available

2

Husqvarna 532196954

Upper Handle

Note: (Includes Foam Grip)

$60.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532197202

Lower Handle

$

$

Not available

4

Husqvarna 532179585

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

Handle Bolt

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 874780512

Hex Bolt 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154132

Hinge Bracket Assembly

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 532185589

Mulcher Door
(Superseded to 581825801)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532176556

Engine Zone Control Cable

$22.99

$

In Stock, only 4 left!

0

12

Husqvarna 532750634

Hex Washer Head Screw #10-24 x 1/2

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 532125203

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 532185588

Handle Knob

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532751152

Nut, Hex, Flangelock 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 532174112

Support Bracket
(Superseded to 532165946)

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

Screw

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532189277

Axle Arm Assembly, Front, LH
(Superseded to 532186577)

$

$

Not available

20

Husqvarna 532189278

Axle Arm Assembly, Front, RH
(Superseded to 532186578)

$

$

Not available

21

Husqvarna 532189008

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532168599

Selector Spring
(Superseded to 532168360)

$

$

Not available

23

Husqvarna 532186612

Kit, Rear Door

Note: (Includes Springs)

$

$

Not available

24

Husqvarna 873930500

Locknut, Hex 5/16-18

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532197204

Handle Bracket Assembly, LH

$

$

Not available

26

Husqvarna 532197205

Handle Bracket Assembly, RH

$

$

Not available

27

Husqvarna 817600406

Screw 1/4-20 x 3/8

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532152124

Spring, Torsion

$7.49

$

In Stock, only 3 left!

0

29

Husqvarna 532165704

Wheel Adjusting Bracket, Front
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532183901

Spacer

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532185595

Discharge Deflector
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

33

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

34

Husqvarna 532168601

Axle Arm Assembly, Rear, LH
(Superseded to 532167130)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532166785

Locknut, Hex 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

36

Husqvarna 532160828

Shoulder Bolt 5/16-18

$

$

Not available

37

Husqvarna 532150348

Wheel & Tire Assembly, Front 8 x 2
(Superseded to 581009401)

$

$

Not available

38

Husqvarna 532164362

Shoulder Bolt

$

$

Not available

39

Husqvarna 532083923

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532188813

Frame, Grassbag
(Superseded to 532194642)

$

$

Not available

41

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 532165766

Spring, Rear Door, LH

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532165767

Spring, Rear Door, RH

$

$

Not available

44

Husqvarna 532185819

Rod, Rear Door

$9.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 873800500

Nut, Hex

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532168602

Axle Arm Assembly, Rear, RH
(Superseded to 532167131)

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532180552

Wheel & Tire Assembly, Rear 14 x 2

$80.99

$

In Stock, Qty 5

0

50

Husqvarna 532194715

Grassbag
(Superseded to 581002102)

$93.99

$

In Stock, Qty 20+

0

51

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

52

Husqvarna 532163662

Kit, Lawn Mower Housing Assembly
(Superseded to 532443257)

Note: (Includes Key Numbers 17, 18 and 46)

$218.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Lockwasher
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532189028

21" Blade

$22.99

$

In Stock, Qty 5

0

57

Husqvarna 532193707

Blade Adapter
(Superseded to 532420097)

$11.99

$

In Stock, Qty 20+

0

58

Husqvarna 532188821

Adjustment Bolt

$6.49

$

In Stock, only 1 left!

0

59

Engine, Briggs & Stratton, Model Number 12H602 (Order parts from engine manufacturer)

$

$

Not available

60

Husqvarna 532180626

Hubcap, Front Wheel, 8"
(Superseded to 532150182)

$

$

Not available

61

Husqvarna 532191853

Hubcap, Rear Wheel, 3"
(Superseded to 532150635)

$

$

Not available

62

Husqvarna 873800400

Nut, Hex, Nylock 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

63

Husqvarna 532193498

Kit, Bushing, High Wheel

$10.99

$

In Stock, only 2 left!

0

64

Husqvarna 532193696

Bushing, Nylon, Black

$

$

Currently unavailable

65

Husqvarna 532088348

Washer, Flat

$7.49

$

In Stock, Qty 6

0

66

Husqvarna 532188152

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532192770

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

68

Husqvarna 532186362

Grip, Foam

$12.99

$

In Stock, only 3 left!

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532196955

Owner's Manual, English / French

$

$

Currently unavailable
