7021 CM (954224088) - Husqvarna 21" Walk-Behind Mower (2003-11) PRODUCT COMPLETE Parts Diagram

21" Walk-Behind Mower

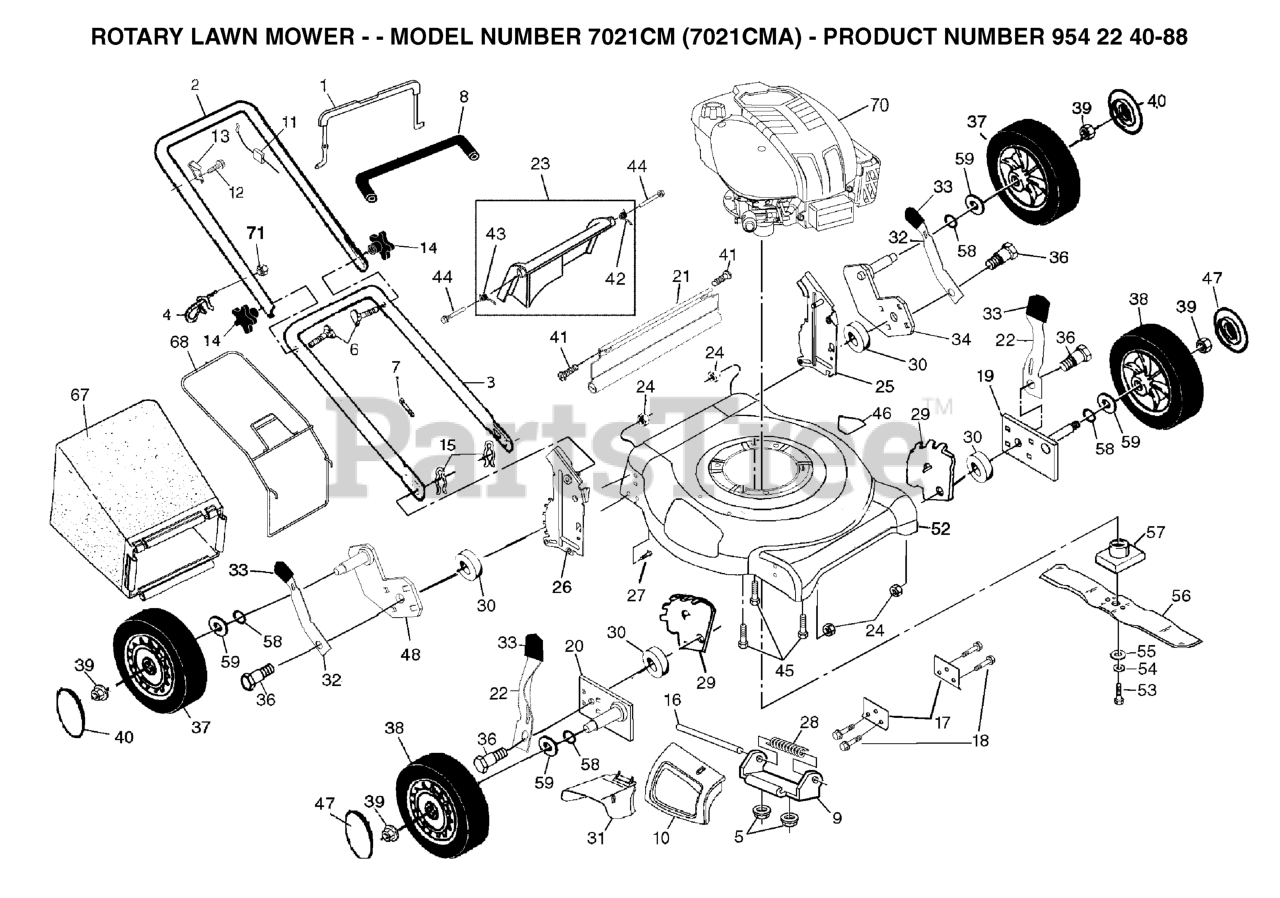

PRODUCT COMPLETE Parts Diagram

  • Title
56

Husqvarna 532175064

BLADE
(Superseded to 532189028)

$22.99

$

In Stock, Qty 6

0

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532189277

AXLE ARM ASSY
(Superseded to 532186577)

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532188813

FRAME, GRASS BAG
(Superseded to 532194642)

$

$

Not available

6

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

71

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 532168599

REPL BY 532 1683-60
(Superseded to 532168360)

$

$

Not available

39

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532180183

WHEEL.10X2.PR.HITRAC.BLACK

$

$

Not available

13

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532183901

SPACER.34X1.38X.22

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 4 left!

0

59

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 532851856

SCREW
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532180541

WHEEL 8 X 2 BLACK BALL BEARING

$

$

Not available

58

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532174105

HANDLE BRACKET ASSEMBLY, LEFT
(Superseded to 586559801)

$

$

Not available

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 532165766

SPRING (LH)

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

- -

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532165767

SPRING (RH)

$

$

Not available

14

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$7.49

$

In Stock, only 1 left!

0

57

Husqvarna 532184590

BLADE ADAPTER
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 5

0

29

Husqvarna 532165704

WHEEL BRACKET ADJUSTER
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 532174110

HANDLE.LOWER.GREY
(Superseded to 532174291)

$

$

Not available

47

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

23

Husqvarna 532186612

KIT.REAR.DOOR.21.DOMED.

$

$

Not available

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

36

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

26

Husqvarna 532174106

HANDLE.BRKT.ASSY.RIGHT.BLACK
(Superseded to 586559801)

$

$

Not available

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

46

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

16

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

$

$

Not available

19

Husqvarna 532189278

AXLE ARM ASSY LF
(Superseded to 532186578)

$

$

Not available

17

Husqvarna 532174112

SUPPORT BRACKET
(Superseded to 532165946)

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532176556

ENGINE ZONE CONTROL CABLE

$22.99

$

In Stock, only 4 left!

0

52

Husqvarna 532163662

HOUSING ASSEMBLY
(Superseded to 532443257)

$218.99

$

Usually ships in 3-10 days

0
