7021 CH1 (954224095-B) - Husqvarna 21" Walk-Behind Mower (2004-06) Drive Assembly Parts Diagram

21" Walk-Behind Mower

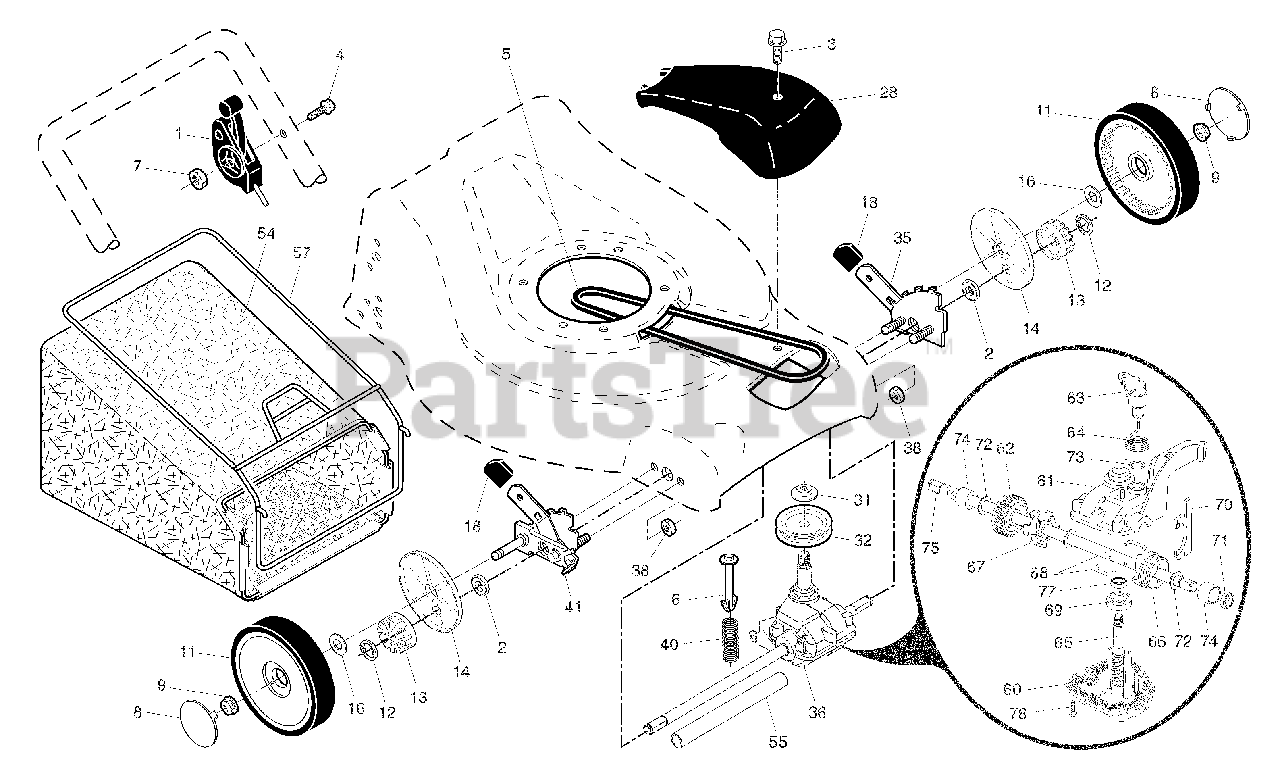

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532184588

Drive Control Assembly

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 532169911

Bearing, Wheel Adjuster

$

$

Not available

3

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532158755

Screw

$

$

Not available

5

Husqvarna 532175436

V-Belt

$24.99

$

In Stock, Qty 5

0

6

Husqvarna 532150495

Retainer, Spring

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532191730

Nut, Hex, Flanged 1/4-20

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

9

Husqvarna 532145212

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532180767

Wheel & Tire Assembly
(Superseded to 532180775)

$34.99

$

In Stock, Qty 13

0

12

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137054

Pinion

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532180504

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

16

Husqvarna 532067725

Washer 1/2

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

28

Husqvarna 532185579

Drive Cover
(Superseded to 532432664)

$24.99

$

In Stock, only 2 left!

0

31

Husqvarna 532132010

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532189407

Pulley, Drive
(Superseded to 532194126)

$

$

Not available

35

Husqvarna 532151521

Kit, Wheel Adjuster, LH

Note: (Includes Knob and Bearing)

$

$

Not available

36

Husqvarna 532180184

Gear Case Assembly, Complete

$

$

Not available

38

Husqvarna 873800400

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532137090

Spring, Tension

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532151520

Kit, Wheel Adjuster, RH

Note: (Includes Knob and Bearing)

$

$

Not available

54

Husqvarna 532189765

Grassbag Assembly
(Superseded to 532410667)

$87.99

$

In Stock, only 3 left!

0

55

Husqvarna 532175739

Driveshaft Cover

$

$

Not available

57

Husqvarna 532188815

Frame, Grassbag
(Superseded to 532194643)

$

$

Not available

60

Husqvarna 532183497

Case, Lower

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$15.99

$

In Stock, only 1 left!

0

61

Husqvarna 532183498

Case, Upper

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$15.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532183499

Gear, 27 Teeth

$17.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183500

Lever, Clutch

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532183501

Spring, Return

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532183502

Shaft, Input

$30.99

$

In Stock, only 1 left!

0

66

Husqvarna 532183503

Dog, Movable

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532183504

Dog, Fixed

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183507

Fork, Shift

$9.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

72

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532183510

Seal, Case

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532183512

Shaft, Output

$46.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0
