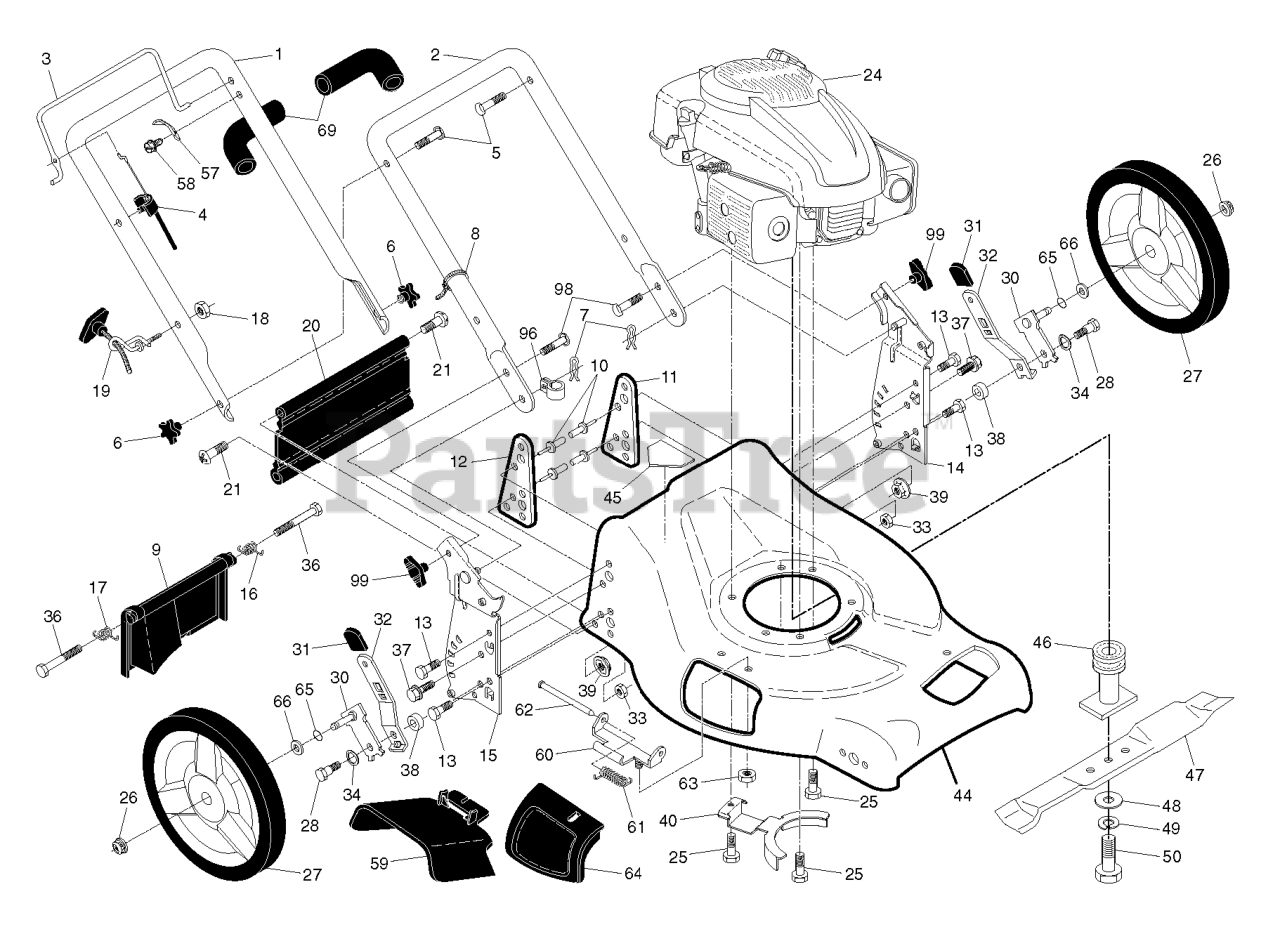

7021 (374082) - Husqvarna 21" Walk-Behind Mower (2010-01) FRAME & ENGINE Parts Diagram

21" Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

63

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$20.99

$

In Stock, only 1 left!

0

15

Husqvarna 532434512

BRACKET.ASM.HNDL.RT.21.FGD.HW

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532185582

DEFLECTOR.CLIPPIN.21.FGD
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532413141

ARM.ASM.AXLE.REAR.5/9.POS.BZP

$7.49

$

In Stock, only 3 left!

0

57

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

98

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

31

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

46

Husqvarna 532421248

RP ADAPTER.BLADE.25MM.21F
(Superseded to 532443950)

$

$

Not available

58

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

20

Husqvarna 532413159

SKIRT.REAR.21 FWGD.BLACK

$17.99

$

In Stock, only 3 left!

0

12

Husqvarna 532410542

BRACKET.SUPRT.RH.21.FWGD

$7.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

64

Husqvarna 532185576

DOOR.MULCH.21.REAR.FWGD

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

14

Husqvarna 532434550

BRACKET.ASM.HDL.LT.21FGD.HW.OR

$

$

Not available

7

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532184193

BOLT

$

$

Not available

17

Husqvarna 532405418

SPRING.REAR.DOOR.EZ.21.RT

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

3

Husqvarna 532427970

BAIL.DSTRT.AW.CREAS.ORAN

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532405417

SPRING.REAR.DOOR.EZ.21.LT

$9.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

99

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

34

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

26

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532408989

HOUSING.21.FWD.ORANGE.WALK

Note: "Includes Key Numbers 10,11,12, and 45"

$

$

Not available

2

Husqvarna 532434726

HANDLE.LOWER.D-STRAIT.GREY

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532156581

RP CABLE.MZR.54.10.SNAP.IN.RT
(Superseded to 532168552)

$22.99

$

In Stock, only 1 left!

0

45

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

69

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

11

Husqvarna 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

62

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

24

000000000

Note: KOHLER XT173-3089-EA

$

$

Not available

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532409889

SELECTOR SPRING
(Superseded to 532401626)

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

1

Husqvarna 532427658

HANDLE.ASM.GRY.W/GRIP

Note: Includes Foam Grip

$60.99

$

In Stock, only 1 left!

0

21

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0
