702 R (116-702E100) - Cub Cadet Walk-Behind Mower Engine (1996) Engine Internal And Air Cleaner Parts Diagram

Walk-Behind Mower Engine

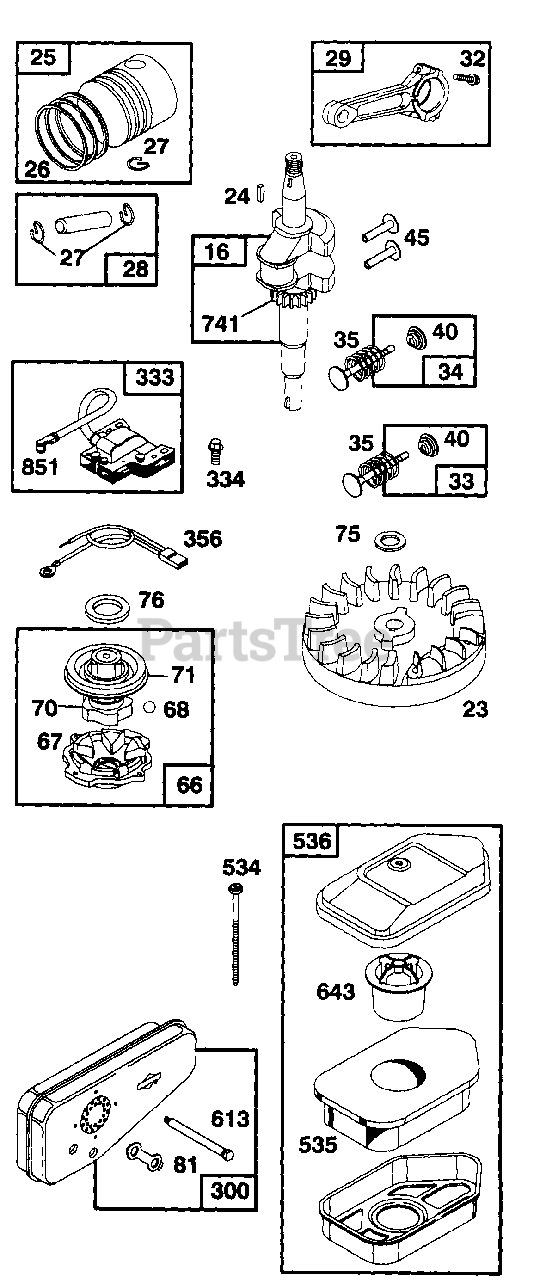

Engine Internal And Air Cleaner Parts Diagram

  • Title

16

Cub Cadet BS-492748

Crankshaft

Note: Note: To Replace Crankshaft Gear Pin-Order Part No. BS- 230978.

$172.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-495046

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-298904

Piston Assy. (Standard)

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Assy. (.010" O.S.)

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Assy. (.020" O.S.)

$

$

Not available

Cub Cadet BS-298907

Piston Assy. (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-298982

Ring Set (Standard)

$48.99

$

In Stock, Qty 8

0

Cub Cadet BS-299742

Ring Set (Std. Chrome)

$

$

Not available

Cub Cadet BS-298983

Ring Set (.010" O.S.)

$

$

Not available

Cub Cadet BS-298984

Ring Set (.020" O,S.)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set (.030" O.S.)

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin-Piston (Standard)

$8.99

$

In Stock, only 3 left!

0

Cub Cadet BS-298908

Pin-Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-294201

Rod-Connecting

$

$

Not available

Cub Cadet BS-296079

Rod-Conn. (.020" Undersize)

$18.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-296676

Valve-Exhaust

$23.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

$24.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-260552

Spring-Valve

$5.49

$

In Stock, only 1 left!

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

66

Cub Cadet BS-399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet-Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer-Retainer

$

$

Not available

75

Cub Cadet BS-223047

Washer-Spring

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Sealing

$

$

Not available

81

Cub Cadet BS-223256

Lock-Muffler Screw

$

$

Not available

300

Cub Cadet BS-394644

Muffler-Exhaust

$

$

Not available

333

Cub Cadet BS-398593

Armature-Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, only 1 left!

0

334

Cub Cadet BS-94731

Screw-Sem

$

$

Not available

356

Cub Cadet BS-398808

Wire-Stop

$11.99

$

In Stock, only 1 left!

0

534

Cub Cadet BS-93865

Screw-Air Cleaner
(Superseded to BS-691417)

$5.99

$

In Stock, only 3 left!

0

535

Cub Cadet BS-272235

Element-Air Cleaner
(Superseded to BS-272235S)

$5.99

$

In Stock, Qty 7

0

536

Cub Cadet BS-493492

Cleaner Assembly-Air
(Superseded to BS-698472)

$

$

Not available

613

Cub Cadet BS-93935

Screw-Hex. Head
(Superseded to BS-691413)

$5.99

$

Usually ships in 2-12 days

0

643

Cub Cadet BS-280972

Cup-Air Cleaner

$

$

Not available

741

Cub Cadet BS-261533

Gear-Timing

$

$

Not available

851

Cub Cadet BS-493880

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
