702 R (116-702E100) - Cub Cadet Walk-Behind Mower Engine (1996) Cylinder Assembly And Engine Sump Parts Diagram

Walk-Behind Mower Engine

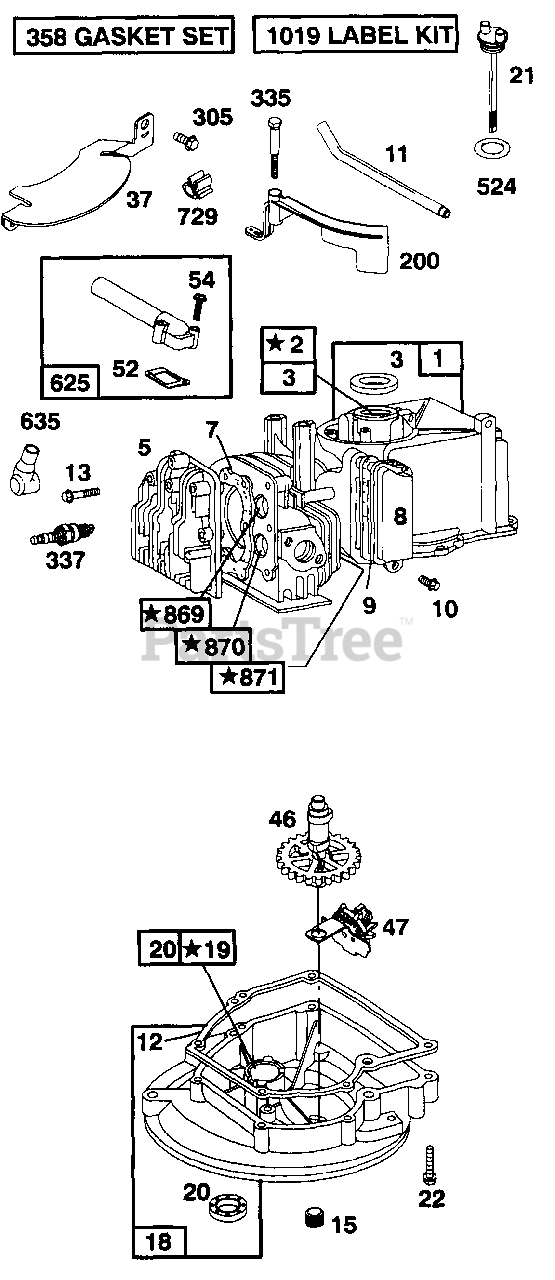

Cylinder Assembly And Engine Sump Parts Diagram

  • Title

Cub Cadet BS-398210

Short Block

$221.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-399164

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included in Gasket Set - P/N BS-298989

$5.49

$

In Stock, Qty 17

0

5

Cub Cadet BS-213942

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272536

Gasket-Cylinder Head

Note: Included in Gasket Set - P/N BS-298989

$

$

Not available

8

Cub Cadet BS-495785

Breather Assy.

Note: (Includes Gasket)

$

$

Not available

9

Cub Cadet BS-272602

Gasket-Breather

Note: Included in Gasket Set - P/N BS-298989

$

$

Not available

10

Cub Cadet BS-94621

Screw-Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-231774

Tube-Breather
(Superseded to BS-691245)

$8.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-270833

Gasket-Crankcase (.015" Thick, Standard)
(Superseded to BS-692218)

Note: Included in Gasket Set - P/N BS-298989

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set - P/N BS-298989

$9.99

$

In Stock, only 2 left!

0

Cub Cadet BS-270896

Gasket-Crankcase (.009" Thick)

Note: Included in Gasket Set - P/N BS-298989

$5.99

$

In Stock, Qty 8

0

13

Cub Cadet BS-93111

Screw-Cylinder Head
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-395384

Sump-Engine

$

$

Not available

19

Cub Cadet BS-293709

Bushing

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391483

Seal-Oil
(Superseded to BS-391483S)

Note: Included in Gasket Set - P/N BS-298989

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet BS-281081

Plug-Oil Filler
(Superseded to BS-691913)

$9.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-94607

Screw-Mtg. Sem

$

$

Not available

37

Cub Cadet BS-223150

Guard-Flywheel

$

$

Currently unavailable

46

Cub Cadet BS-493747

Gear-Cam

$

$

Not available

47

Cub Cadet BS-491688

Slinger-Oil

$

$

Not available

52

Cub Cadet BS-270345

Gasket-Intake Elbow

Note: Included in Gasket Set - P/N BS-298989

$

$

Not available

54

Cub Cadet BS-93485

Screw-Self Tapping

$

$

Not available

200

Cub Cadet BS-281024

Blade-Governor
(Superseded to BS-691912)

$13.99

$

In Stock, only 1 left!

0

305

Cub Cadet BS-94153

Screw-Hex. Head

$

$

Not available

335

Cub Cadet BS-94732

Screw-Shoulder

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.49

$

In Stock, Qty 14

0

358

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

Note: Includes items 3, 7, 9, 12, 20, 52 & 524

$21.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-271485

Seal-Filler Tube

Note: Included in Gasket Set - P/N BS-298989

$

$

Not available

625

Cub Cadet BS-298775

Tube-Fuel Intake
(Superseded to BS-693446)

$14.99

$

Usually ships in 2-12 days

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

729

Cub Cadet BS-280470

Clip-Wire

$

$

Not available

869

Cub Cadet BS-211172

Seat-Intake Valve

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

Note: Note: BS-63709 Guide-Intake Valve

$31.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-496757

Label Kit

$46.99

$

Usually ships in 2-12 days

0
