702 R (116-702E100) - Cub Cadet Walk-Behind Mower (1996) Deck Assembly Parts Diagram

Walk-Behind Mower

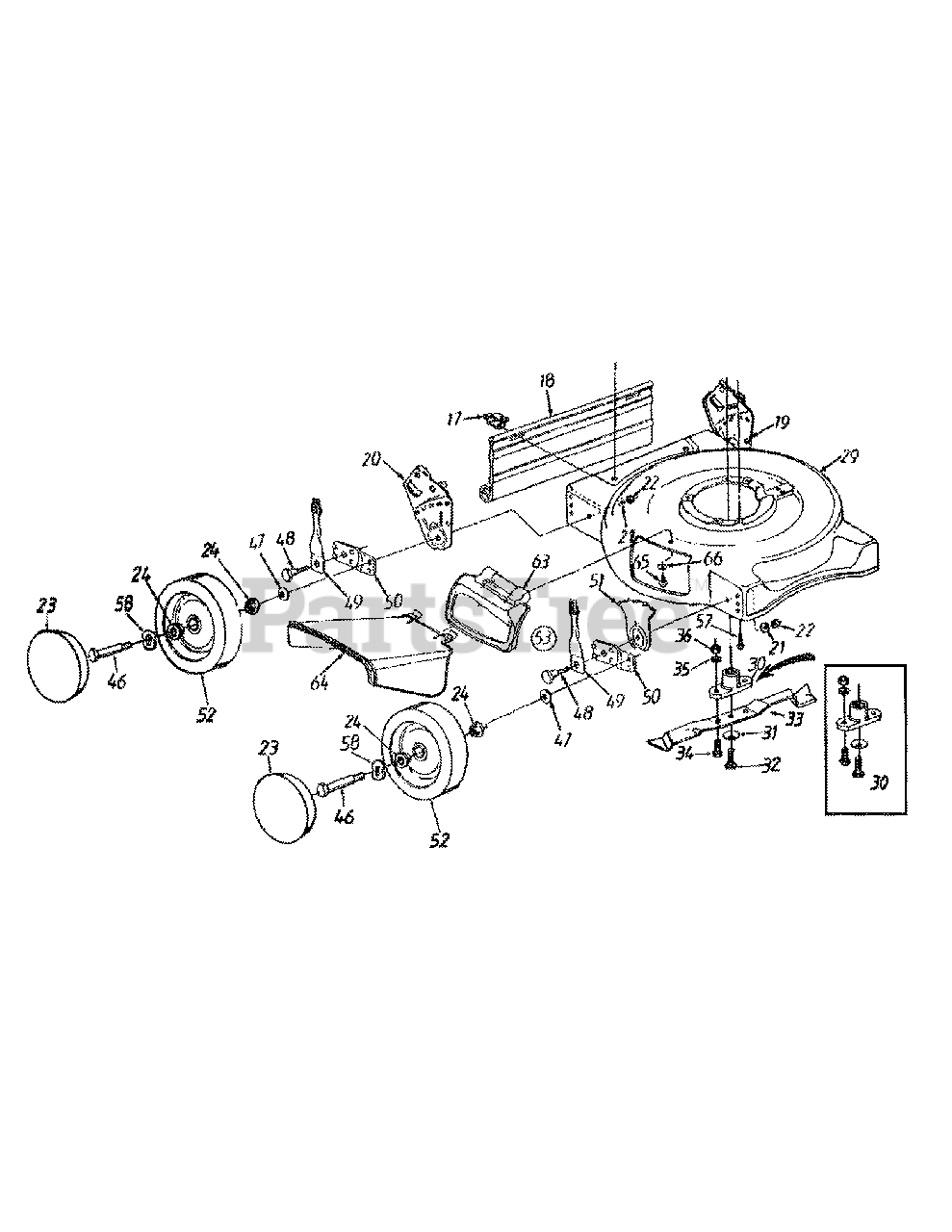

Deck Assembly Parts Diagram

  • Title

17

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-1447

Rear Flap (108R)

$

$

Not available

18

Cub Cadet 731-1028

Rear Flap (702R)

$34.99

$

In Stock, only 1 left!

0

19

Cub Cadet 12935B

Handle Bracket Ass'y.- L.H. (108R)

$

$

Not available

19

Cub Cadet 682-3001A

Handle Bracket Ass'y.- L.H. (702R)
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 12936B

Handle Bracket Ass'y.- R.H. (108R)

$

$

Not available

20

682 3000A

Handle Bracket Ass'y.- R.H. (702R)

$

$

Not available

21

Cub Cadet 736-0356

Bell-Wash..39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

24

Cub Cadet 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet 682-0016

20" Deck Ass'y. (108R)

$

$

Currently unavailable

29

Cub Cadet 682-0018

18" Deck Ass'y. (702R)

Variations

Cub Cadet 682-0018-0483

DECK-ASSEMBLY-18 CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 682-0018-0498

DECK ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-0018-0499

DECK-ASSEMBLY-18 (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 682-0018-0638

DECK-ASSEMBLY-18 (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-0018-0665

DECK-ASSEMBLY-18 (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-0018-0691

DECK-ASSEMBLY-18 (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

30

Cub Cadet 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0452

Bell-Wash..46" I.D.

$4.99

$

In Stock, Qty 5

0

32

Cub Cadet 710-1044

Hex Bolt 7/16-20 x 1.5" Lg.

$3.99

$

In Stock, Qty 8

0

33

Cub Cadet 742-0720

20" Mulching Blade (108R)
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

33

Cub Cadet 742-0718

18" Mulching Blade (702R)
(Superseded to 942-0718)

$

$

Not available

34

Cub Cadet 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

46

Cub Cadet 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 736-0105

Bell-Wash..400" I.D. x.88"

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Cub Cadet 734-1517B

Wheel Ass'y. Comp.

$68.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 14578

Height Adj. Ass'y. Comp.- R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

53

Cub Cadet 14579

Height Adj. Ass'y. Comp.- L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

57

Cub Cadet 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0504

Wave Washer .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

63

Cub Cadet 682-7000

Mulching Plug (108R)

$

$

Not available

63

Cub Cadet 682-7002

Mulching Plug (702R)

$

$

Not available

64

Cub Cadet 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0599

Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg

$4.49

$

In Stock, Qty 20+

0
