70186 (H 132) - Toro Rear-Engine Riding Mower (SN: 310000001 - 310999999) (2010) MAIN HOUSING ASSEMBLY TRANSMISSION NO. 114-3192 Parts Diagram

Rear-Engine Riding Mower

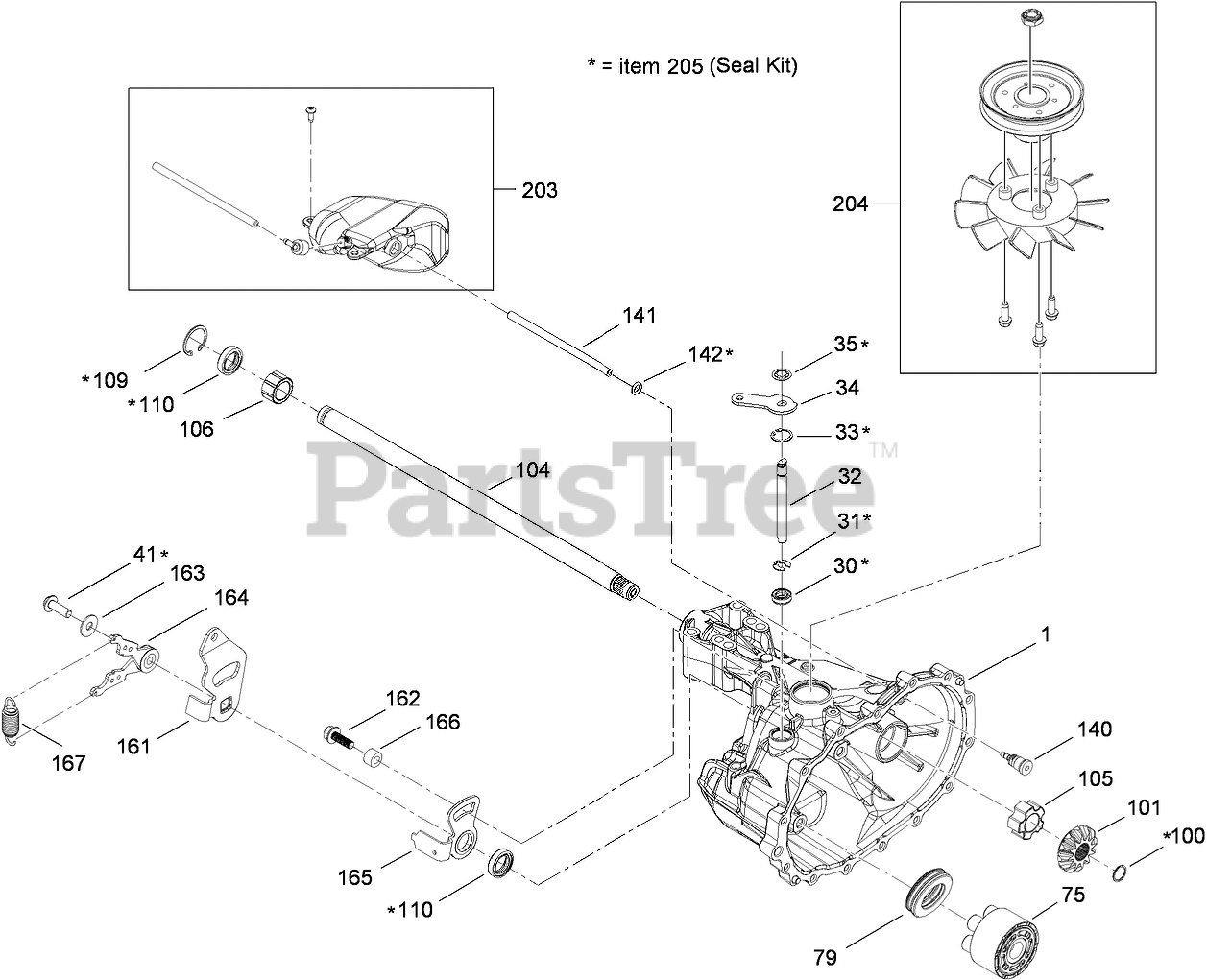

MAIN HOUSING ASSEMBLY TRANSMISSION NO. 114-3192 Parts Diagram

  • Title

1

Toro 115-8313

MAIN HOUSING KIT

$

$

Currently unavailable

30

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$7.49

$

Usually ships in 3-6 days

0

31

Toro 106-8677

RING-RETAINING, EXTERNAL

$9.49

$

In Stock, only 2 left!

0

32

Toro 115-8312

ROD-BYPASS, ACTUATOR

$

$

Currently unavailable

33

Toro 106-8679

RING-RETAINING, INTERNAL

$10.99

$

Usually ships in 3-6 days

0

34

Toro 115-8311

ARM-BYPASS

$7.49

$

Usually ships in 0 days

0

35

Toro 106-8681

RING-RETAINING, EXTERNAL

$9.49

$

Usually ships in 3-6 days

0

41

Toro 107-2488

SCREW

$14.99

$

In Stock, only 1 left!

0

75

Toro 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

79

Toro 94-6922

BEARING-THRUST

$66.99

$

In Stock, only 2 left!

0

100

Toro 104-5328

RING-RETAINING, SPIRAL

$12.99

$

Usually ships in 3-6 days

0

101

Toro 115-8315

GEAR-BEVEL, 12T (SPLINE, ID)

$

$

Currently unavailable

104

Toro 115-8305

SHAFT-AXLE, KEYED

$

$

Currently unavailable

105

Toro 115-8314

BUSHING-INBOARD

$9.49

$

Usually ships in 3-6 days

0

106

Toro 115-8304

BUSHING-OUTBOARD

$

$

Currently unavailable

109

Toro 115-8303

RING-RETAINING, INTERNAL

$

$

Currently unavailable

110

Toro 94-1924

SEAL
(Superseded to 121-0970)

$

$

Not available

140

Toro 104-5349

FITTING-SAE

$74.99

$

Usually ships in 3-6 days

0

141

Toro 115-8302

HOSE

$6.99

$

Usually ships in 3-6 days

0

142

Toro 104-5361

O-RING

$8.99

$

Usually ships in 3-6 days

0

161

Toro 115-8308

ARM-CONTROL, RETURN

$

$

Currently unavailable

162

Toro 104-5312

SCREW-HF

$9.49

$

Usually ships in 3-6 days

0

163

Toro 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

164

Toro 115-8306

BI DIRECTIONAL RETURN KIT

$

$

Currently unavailable

165

Toro 115-8310

ARM-NEUTRAL

$

$

Currently unavailable

166

Toro 115-8309

BUSHING

$

$

Currently unavailable

167

Toro 115-8307

SPRING-EXTENSION

$23.99

$

Usually ships in 3-6 days

0

203

Toro 115-8301

EXPANSION TANK KIT

$68.99

$

Usually ships in 3-6 days

0

204

Toro 115-8341

FAN AND PULLEY KIT

$

$

Not available

205

Toro 115-8316

SEAL KIT

$55.99

$

Usually ships in 3-6 days

0
