70186 (H 132) - Toro Rear-Engine Riding Mower (SN: 310000001 - 310999999) (2010) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

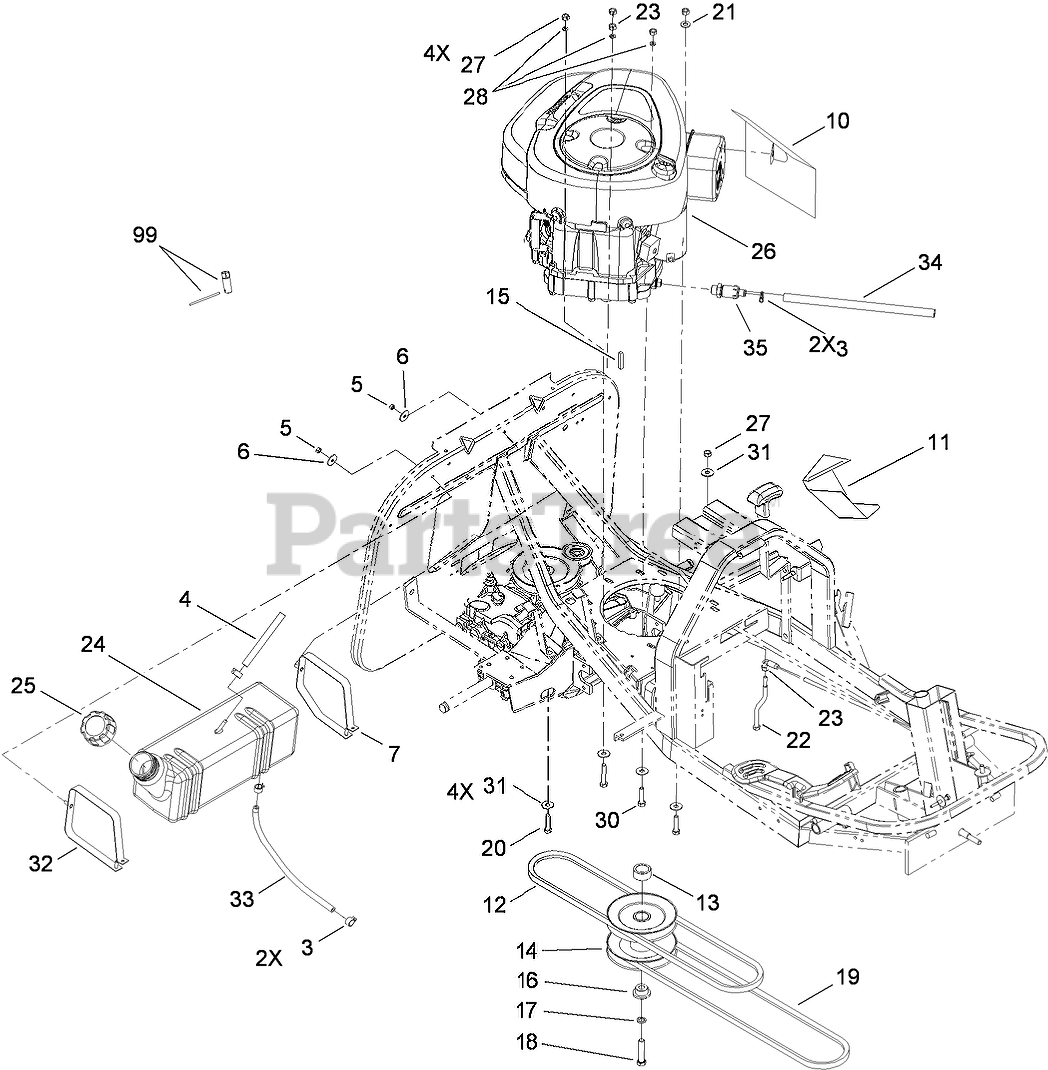

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
3

Toro 107-2210

CLAMP-TUBE

$

$

Currently unavailable

4

Toro 106-2990

Hose-Fuel

$

$

Currently unavailable

5

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 106-2853

Washer-Flat

$

$

Not available

7

Toro 106-6541

STRAP-FUEL TANK, LEFT

$

$

Not available

10

Toro 119-2733

SHIELD-MUFFLER

$

$

Currently unavailable

11

Toro 119-2734

DEFLECTOR-EXHAUST

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 106-1836

Spacer

$

$

Currently unavailable

14

Toro 114-3297

PULLEY-ENGINE, HYDRO

$

$

Currently unavailable

15

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

16

Toro 106-1837

Spacer

$

$

Currently unavailable

17

Toro 106-2856

Washer-Lock

$

$

Currently unavailable

18

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

19

Toro 114-3299

BELT-DECK, HYDRO

$

$

Not available

20

Toro 33114-035

SCREW-HH

$4.99

$

In Stock, only 1 left!

0

21

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

22

Toro 106-2974

Guide-Belt

$

$

Currently unavailable

23

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

24

Toro 106-6537

TANK-FUEL

$

$

Not available

25

Toro 55-3576

GAS CAP ASM

$24.99

$

Usually ships in 3-6 days

0

26

ENGINE-BRIGGS, 219807-0138-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

26

ENGINE-BRIGGS, 219807-0138-B1

Note: Not serviced separately

$

$

Not available

27

Toro 46-0330

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

28

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro 33114-045

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

31

Toro 106-2854

Washer-Flat

$

$

Currently unavailable

32

Toro 106-6540

STRAP-FUEL TANK, RIGHT

$

$

Currently unavailable

33

Toro 107-1555

Hose-Fuel

$

$

Currently unavailable

34

Toro 107-2241

TUBE-DRAIN, OIL

$

$

Currently unavailable

35

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, only 1 left!

0

99

Toro 107-8937

PLUG-WRENCH

Note: Not illustrated

$

$

Currently unavailable
