70186 (H 132) - Toro Rear-Engine Riding Mower (SN: 310000001 - 310999999) (2010) CENTER SECTION ASSEMBLY TRANSMISSION NO. 114-3192 Parts Diagram

Rear-Engine Riding Mower

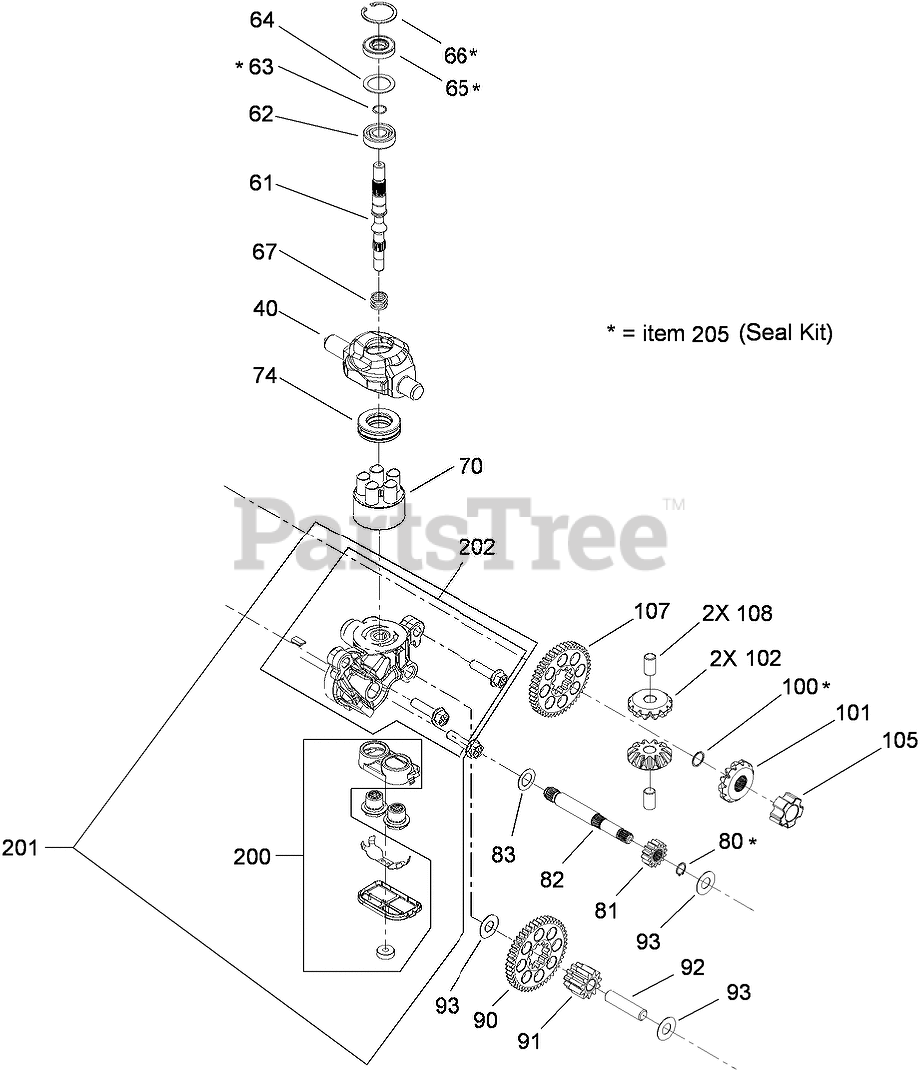

CENTER SECTION ASSEMBLY TRANSMISSION NO. 114-3192 Parts Diagram

  • Title
40

Toro 115-8319

TRUNNION-PLATE, SWASH

$

$

Currently unavailable

61

Toro 115-8317

SHAFT-INPUT

$77.99

$

Usually ships in 3-6 days

0

62

Toro 94-1904

BEARING-SHAFT, BALL

$137.99

$

Usually ships in 3-6 days

0

63

Toro 94-1902

RING-WIRE, RETAINING

$6.99

$

Usually ships in 3-6 days

0

64

Toro 104-2104

SPACER

$10.99

$

Usually ships in 3-6 days

0

65

Toro 92-6543

SEAL-LIP

$20.99

$

Usually ships in 3-6 days

0

66

Toro 94-1903

RING-RETAINING

$

$

Not available

67

Toro 115-8318

SPRING-HELICAL

$

$

Currently unavailable

70

Toro 115-8321

CYLINDER BLOCK KIT

$

$

Currently unavailable

74

Toro 115-8320

BEARING-THRUST, BALL

$

$

Currently unavailable

80

Toro 115-8331

RING-RETAINING, EXTERNAL

$

$

Currently unavailable

81

Toro 115-8330

GEAR-PINION, 13T

$

$

Currently unavailable

82

Toro 115-8329

SHAFT-MOTOR

$

$

Currently unavailable

83

Toro 115-8328

WASHER

$

$

Currently unavailable

90

Toro 115-8332

GEAR-11T/48T

$

$

Currently unavailable

91

Toro 115-8333

GEAR-JACKSHAFT, 11T

$

$

Currently unavailable

92

Toro 115-8334

PIN-JACKSHAFT

$

$

Currently unavailable

93

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

100

Toro 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

101

Toro 115-8315

GEAR-BEVEL, 12T (SPLINE, ID)

$

$

Currently unavailable

102

Toro 115-8327

GEAR-BEVEL, 12T (.50 ID)

$

$

Currently unavailable

105

Toro 115-8314

BUSHING-INBOARD

$9.49

$

Usually ships in 3-6 days

0

107

Toro 115-8325

GEAR-53T, BULL

$

$

Currently unavailable

108

Toro 115-8326

PIN-DIFFERENTIAL

$

$

Currently unavailable

200

Toro 115-8323

FILTER KIT

$

$

Currently unavailable

201

Toro 115-8324

CENTER SECTION W/FILTER KIT

$

$

Currently unavailable

202

Toro 115-8322

CENTER SECTION KIT

$

$

Currently unavailable

205

Toro 115-8316

SEAL KIT

$53.99

$

Usually ships in 3-6 days

0
